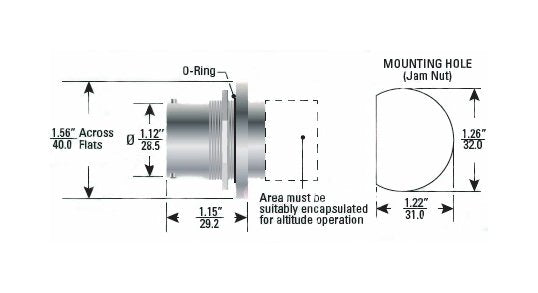

Teledyne Reynold 1804 Series 4-Pin Sealed Bayonet Receptacle
Teledyne Reynold 1804 Series 4-Pin Sealed Bayonet Receptacle
SKU:HIG-d47141
High-voltage Teledyne Reynold 1804 Series 4-pin connector for rugged applications
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Teledyne Reynold 1804 Series 4-Pin Sealed Bayonet Receptacle
$79.99
Quantity: 1
Claim Your Seller Account
Teledyne Reynold 1804 Series 4-Pin Sealed Bayonet Receptacle
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Teledyne Reynold 1804 Series 4-Pin Sealed Bayonet Rear Mount Jam Nut Receptacle is a high-voltage connector designed for rugged applications like military vehicles and NASA spacecraft. With a voltage rating of 15 kVDC, altitude rating of 70,000 ft, and operating temperature range of -55 to 125 ºC, this connector ensures reliable performance in demanding environments. Featuring aluminum bayonet coupling nuts, gold-finished BeCu contacts, and FEP wire insulation, it meets stringent industry standards while offering versatility for customer-fabricated cable assemblies.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Altitude Rating
70,000 ft
Specifications Braid Termination
Clamp
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Contact Finish
Gold with CRES Hood
Specifications Contact Material
BeCu
Specifications Coupling Nut Finish
Nickel
Specifications Coupling Nut Material
Aluminum
Specifications Coupling Style
Bayonet
Specifications Current Rating
7.5 A
Specifications Insulator Material
Plastic
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Maximum Leak Rate Helium
1 X 10 -6 cc/sec
Specifications Number Of Contacts
4
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Torque
84 ± 2 in.lb
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Series
1804
Specifications Test Voltage At 70000 Ft
22 kVDC
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
FEP
