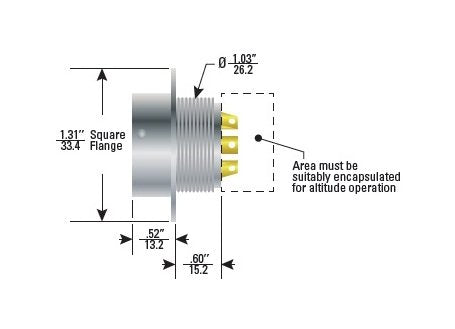

Teledyne Reynold 1804 Series 4 Pin Threaded Box Flange Receptacle Assembly
Teledyne Reynold 1804 Series 4 Pin Threaded Box Flange Receptacle Assembly
SKU:HIG-46018d
Versatile 15 kVDC 4-pin threaded box flange receptacle assembly for high voltage applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Teledyne Reynold 1804 Series 4 Pin Threaded Box Flange Receptacle Assembly
$59.99
Quantity: 1
Claim Your Seller Account
Teledyne Reynold 1804 Series 4 Pin Threaded Box Flange Receptacle Assembly
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Teledyne Reynold 1804 Series 4 Pin Threaded Box Flange Receptacle Assembly is a ruggedized and versatile high voltage connector ideal for a wide range of applications. With a voltage rating of 15 kVDC and a current rating of 7.5 A, this connector is designed for reliable performance in demanding environments. The insulator material is made of durable plastic, and the coupling nut material is aluminum with a nickel finish. The contact material is BeCu with a gold finish for enhanced conductivity. Designed for ease of assembly, this receptacle assembly meets stringent industry standards and offers exceptional durability and performance.
Product Specifications
Specifications Altitude Rating
70,000 ft
Specifications Braid Termination
Clamp
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Contact Finish
Gold with CRES Hood
Specifications Contact Material
BeCu
Specifications Coupling Nut Finish
Nickel
Specifications Coupling Nut Material
Aluminum
Specifications Coupling Style
Threaded
Specifications Current Rating
7.5 A
Specifications Insulator Material
Plastic
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Number Of Contacts
4
Specifications Operating Temperature
-55 to 125 ºC
Specifications Series
1804
Specifications Test Voltage At 70000 Ft
22 kVDC
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
FEP
