Teledyne Reynold PeeWee Series 12 kVDC Receptacle Cable Assembly
Teledyne Reynold PeeWee Series 12 kVDC Receptacle Cable Assembly
SKU:HIG-fa1677
High-voltage PeeWee Series cable assembly, 12 kVDC, 70,000 ft rated, -55 to 125 °C, ideal for power supplies and lasers.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Teledyne Reynold PeeWee Series 12 kVDC Receptacle Cable Assembly
$129.99
Quantity: 1
Claim Your Seller Account
Teledyne Reynold PeeWee Series 12 kVDC Receptacle Cable Assembly
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

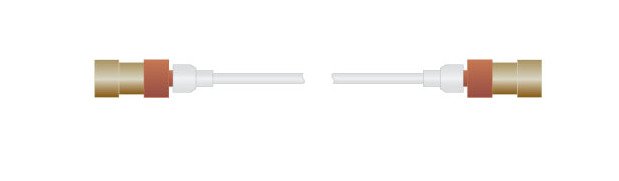

The Teledyne Reynold PeeWee Series Receptacle Cable Assembly is a subminiature connector designed for high voltage applications requiring compact electronic packaging. Featuring Teledyne Reynold's patented Advanced Interface™ sealing method, this double-ended assembly is rated at 12 kVDC up to 70,000 feet. With a temperature range of -55 °C to 125 °C, this connector ensures reliable performance in varied conditions. The push-pull coupling style and silicone rubber interface seal enhance usability and durability, making it suitable for power supplies, lasers, and photomultipliers.
Product Specifications
Application 0
Power SuppliesTWTLasersPhotomultipliers
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.060 in
Contact Properties Contact Design
Spherical Radius, Molded in Place
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Material
BeCu, Gold Plated
Contact Properties Contact Size
24 AWG
Contact Properties Contact Type
Male
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Receptacle Cable Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Interface Seal
Silicone Rubber
Specifications Mating Compatibility
Mates with all non-threaded Pee-Wee series plug cable assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Silicone Coated FEP
Specifications Wire Pn
178-8066
