Teledyne Reynolds 12 kVDC PeeWee Series 2 Pin Straight Single-Ended Plug Cable Assembly
Teledyne Reynolds 12 kVDC PeeWee Series 2 Pin Straight Single-Ended Plug Cable Assembly
SKU:HIG-5dd54b
High-voltage 2 pin cable assembly with 12 kVDC rating, sealed for extreme conditions, ideal for dense electronic packaging.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Teledyne Reynolds 12 kVDC PeeWee Series 2 Pin Straight Single-Ended Plug Cable Assembly
$99.99
Quantity: 1
Claim Your Seller Account
Teledyne Reynolds 12 kVDC PeeWee Series 2 Pin Straight Single-Ended Plug Cable Assembly
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

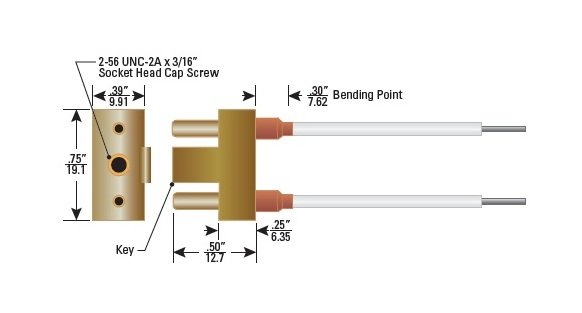

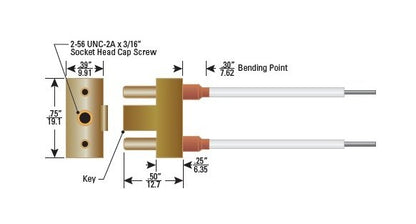

The Teledyne Reynolds 12 kVDC PeeWee Series 2 Pin Straight Single-Ended Plug Cable Assembly is designed for high voltage applications requiring compact electronic packaging. Featuring Teledyne Reynolds' patented Advanced Interface™ method, this connector is sealed for high voltage at reduced atmospheric pressure, enabling a 12 kVDC rating at 70,000 feet. With an operating temperature range of -55 °C to 125 °C and various structural features like plastic insulator material, threaded or jack screw coupling style, and silicone rubber interface seal, this cable assembly ensures reliable performance in demanding environments.
Product Specifications
Application 0
LasersPhotomultipliersTWTPower Supplies
Contact Properties Contact Design
Split Finger, Closed Entry, Molded in Place
Contact Properties Contact Diameter
0.030
Contact Properties Contact Finish
Gold with CRES Hood
Contact Properties Contact Material
BeCu
Contact Properties Contact Size
22 AWG
Contact Properties Contact Type
Female
Coupling Nut Properties Coupling Nut Finish
Nickel Plated
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Braid Termination
Band
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Threaded or Jack Screw
Specifications Current Rating
5 A
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Insulator Material
Plastic
Specifications Interface Seal
Silicone Rubber
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Mating Compatibility
Mates with Pee-Wee series two pin receptacle cable assemblies.
Specifications Number Of Contacts
2
Specifications Operating Temperature
-55 to 125 ºC
Specifications Sealed Receptacle
No
Specifications Series
PeeWee
Specifications Soldering Bucket
Accommodates 22 AWG max.
Specifications Standardnon Standard
Nonstandard Part
Specifications Test Voltage At 70000 Ft
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Diameter
0.060 in
Specifications Wire Insulation
Silicone Coated FEP
Wire Specifications Conductor Awg
24
Wire Specifications Conductor Plating
SPC
Wire Specifications Conductor Strands
19/36
Wire Specifications Insulation Material
Silicone Coated FEP
Wire Specifications Insulator Diameter
0.060 in | 1.52 mm
Wire Specifications Operating Voltage
18 kVDC
