Teledyne Reynolds 1407 Series 7 Pin Front Mount Receptacle
Teledyne Reynolds 1407 Series 7 Pin Front Mount Receptacle
SKU:HIG-ad3d26
High-voltage 7-pin receptacle for rugged airborne applications with bayonet coupling and 10 kVDC rating. Shielded/non-shielded configurations available.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Teledyne Reynolds 1407 Series 7 Pin Front Mount Receptacle
$129.99
Quantity: 1
Claim Your Seller Account
Teledyne Reynolds 1407 Series 7 Pin Front Mount Receptacle
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

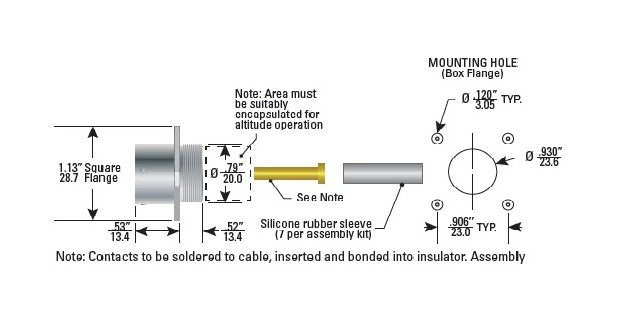

The Teledyne Reynolds 1407 Series 7 Pin Front Mount Receptacle is designed for high-voltage applications with a ruggedized construction ideal for airborne TWT and TWTA use. With a voltage rating of 10 kVDC and altitude rating of 70,000 ft, this bayonet-coupled receptacle offers reliable performance in extreme conditions. Featuring shielded and non-shielded configurations, the receptacle ensures secure connections with a variety of mating plugs and plug cable assemblies. Its plastic insulator material, FEP wire insulation, and BeCu female contacts with gold finish meet stringent industry standards for durability and performance.
Product Specifications
Application 0
10 kVDCRated at 10 kVDC at altitudes up to 70,000 feet, these 7 pin connectors are widely used on TWTs and TWT power supplies.
Body Properties Body Lubricant
Dry Lube
Contact Properties Contact Finish
Gold with CRES Hood
Contact Properties Contact Material
BeCu
Contact Properties Contact Type
Female (Hooded)
Coupling Nut Properties Coupling Nut Finish
Nickel
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Assembly
Receptacle Bag Assembly
Specifications Braid Termination
Band
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Bayonet
Specifications Current Rating
6 A | 8 A
Specifications Insulator Material
Plastic
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Mating Compatibility
Mates all Series 1407 Plugs and Plug cable assemblies
Specifications Number Of Contacts
7
Specifications Operating Temperature
-55 to 105 ºC
Specifications Panel Mounting Style
Front Mount
Specifications Sealed Receptacle
Yes
Specifications Series
1407
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage At 70000 Ft
15 kVDC
Specifications Threaded Coupling Available
No
Specifications Voltage Rating
10 kVDC
Specifications Wire Insulation
FEP
