Teledyne Reynolds 1407 Series 7 Pin Rear Mount Cable Assembly
Teledyne Reynolds 1407 Series 7 Pin Rear Mount Cable Assembly
SKU:HIG-ac021a
High voltage 7-pin connector for rugged applications, 10 kVDC, bayonet coupling, silicone insulator, BeCu contacts.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Teledyne Reynolds 1407 Series 7 Pin Rear Mount Cable Assembly
$99.99
Quantity: 1
Claim Your Seller Account
Teledyne Reynolds 1407 Series 7 Pin Rear Mount Cable Assembly
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

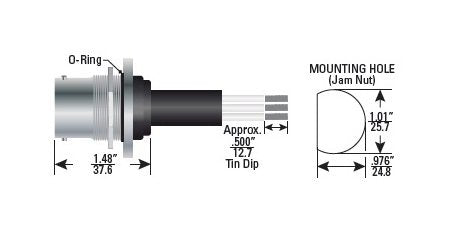

The Teledyne Reynolds 1407 Series 7 Pin Sealed, Rear Mount, Jam Nut Receptacle Cable Assembly is a robust high voltage connector solution designed for demanding applications such as airborne Traveling Wave Tube (TWT) and TWT Amplifier (TWTA) systems. With a voltage rating of 10 kVDC and altitude rating of 70,000 ft, this connector ensures reliable performance in extreme environments. Featuring a silicone insulator, bayonet coupling style, and FEP wire insulation, it offers a secure and durable connection. The aluminum coupling nut with nickel finish and BeCu contacts with gold finish further enhance its longevity and conductivity. For custom designs and more information, contact Teledyne Reynolds' Engineering.
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Finish
Nickel
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Assembly
Receptacle Bag Assembly
Specifications Braid Termination
Band
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Bayonet
Specifications Current Rating
6 A | 8 A
Specifications Insulator Material
Silicone
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Maximum Leak Rate Helium
1 X 10-6 cc/sec
Specifications Number Of Contacts
7
Specifications Operating Temperature
-55 to 105 ºC
Specifications Panel Mounting Style
Rear Mount
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Series
1407
Specifications Test Voltage At 70000 Ft
15 kVDC
Specifications Threaded Coupling Available
No
Specifications Voltage Rating
10 kVDC
Specifications Wire Insulation
FEP
