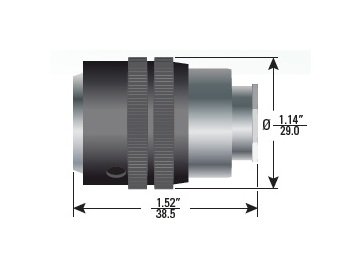

Teledyne Reynolds 1407 Series 7 Pin Shielded Plug Kit
Teledyne Reynolds 1407 Series 7 Pin Shielded Plug Kit
SKU:HIG-562fed
High-performance 7-pin shielded plug kit rated at 10 kVDC, ideal for TWT applications. With bayonet coupling, FEP wire insulation, and brass contacts with gold finish.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Teledyne Reynolds 1407 Series 7 Pin Shielded Plug Kit
$45.99
Quantity: 1
Claim Your Seller Account
Teledyne Reynolds 1407 Series 7 Pin Shielded Plug Kit
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Teledyne Reynolds 1407 Series 7 Pin Shielded Plug Kit is specifically designed for high voltage applications, with a durable bayonet coupling and options for shielded or non-shielded configurations. Ideal for airborne Traveling Wave Tube (TWT) and TWT Amplifier (TWTA) applications, this plug kit is rated at 10 kVDC and can operate at altitudes up to 70,000 ft. With a temperature range of -55 to 105 °C, brass contacts with gold finish, and FEP wire insulation, it ensures reliable performance in challenging environments. This standard part offers a secure connection with a coupling nut made of aluminum and finished in nickel, ensuring longevity and stability.
Product Specifications
Application 0
10 kVDCRated at 10 kVDC at altitudes up to 70,000 feet, these 7 pin connectors are widely used on TWTs and TWT power supplies.
Body Properties Body Lubricant
Dry Lube
Contact Properties Contact Diameter
0.052 in | 1.32 mm
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Contact Properties Contact Type
Male
Coupling Nut Properties Coupling Nut Finish
Nickel
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Assembly
Plug Bag Assembly
Specifications Braid Termination
Band
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Bayonet
Specifications Current Rating
6 A | 8 A
Specifications Insulator Material
Silicone or Plastic
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Mating Compatibility
Mates all series 1407 Receptacle
Specifications Number Of Contacts
7
Specifications Operating Temperature
-55 to 105 ºC
Specifications Sealed Receptacle
No
Specifications Series
1407
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage At 70000 Ft
15 kVDC
Specifications Threaded Coupling Available
No
Specifications Voltage Rating
10 kVDC
Specifications Wire Insulation
FEP
Specifications Wire Type
Shielded
