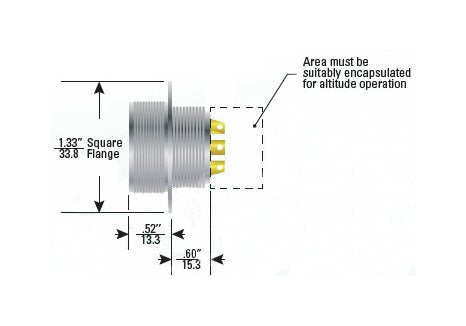

The Teledyne Reynolds 1807 Series 7 Pin Bayonet Cable Assembly is a ruggedized high-voltage connector designed for extreme applications like military vehicles and spacecraft propulsion systems. With a voltage rating of 15 kVDC and altitude rating of 70,000 ft, this connector excels in high-power environments. Featuring a plastic insulator, bayonet coupling, and FEP wire insulation, it ensures secure connections and optimal performance. The hooded female contacts with gold finish guarantee reliable conductivity. Ideal for TWTs and RADAR power supplies, this assembly meets stringent industry standards and offers exceptional durability and functionality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
15 kVDCRated at 15 kVDC at altitudes up to 70,000 feet, these 7 pin connectors are ideal for higher power TWTs and RADAR power supplies.
Body Properties Body Lubricant
Dry Lube
Contact Properties Contact Finish
Gold with CRES Hood
Contact Properties Contact Material
BeCu
Contact Properties Contact Type
Female (Hooded)
Coupling Nut Properties Coupling Nut Finish
Nickel
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Assembly
Receptacle Bag Assembly
Specifications Braid Termination
Clamp
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Bayonet
Specifications Current Rating
7.5 A
Specifications Insulator Material
Plastic
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Mating Compatibility
Mates all bayonet coupled Series 1807 Plugs and Plug cable assemblies
Specifications Number Of Contacts
7
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Front Mount
Specifications Sealed Receptacle
Yes
Specifications Series
1807
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage At 70000 Ft
22 kVDC
Specifications Threaded Coupling Available
Yes
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
FEP
