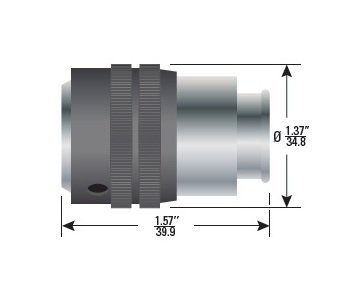

Teledyne Reynolds 1807 Series 7 Pin Bayonet Shielded Plug Cable Assembly
Teledyne Reynolds 1807 Series 7 Pin Bayonet Shielded Plug Cable Assembly
SKU:HIG-d45906
Rugged 15 kVDC 7 pin bayonet shielded plug cable assembly for military and aerospace applications
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Teledyne Reynolds 1807 Series 7 Pin Bayonet Shielded Plug Cable Assembly
$129.99
Quantity: 1
Claim Your Seller Account
Teledyne Reynolds 1807 Series 7 Pin Bayonet Shielded Plug Cable Assembly
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Teledyne Reynolds 1807 Series 7 Pin Bayonet Shielded Plug Cable Assembly is a ruggedized, high voltage connector designed for demanding applications such as military vehicles, aerospace systems, and NASA spacecraft. With a voltage rating of 15 kVDC, altitude tolerance up to 70,000 ft, and operating temperature range of -55 to 125 ºC, this connector ensures reliable performance in extreme environments. The shielded plug cable assembly features a bayonet coupling nut, aluminum coupling nut material with nickel finish, and brass contacts with gold finish. Ideal for high-power TWTs and RADAR power supplies, this connector meets rigorous industry standards and offers superior functionality.
Product Specifications
Application 0
15 kVDCRated at 15 kVDC at altitudes up to 70,000 feet, these 7 pin connectors are ideal for higher power TWTs and RADAR power supplies.
Body Properties Body Lubricant
Dry Lube
Contact Properties Contact Diameter
0.060 in | 1.52 mm
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Contact Properties Contact Type
Male
Coupling Nut Properties Coupling Nut Finish
Nickel
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Assembly
Plug Bag Assembly
Specifications Braid Termination
Clamp
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Bayonet
Specifications Current Rating
7.5 A
Specifications Insulator Material
Silicone
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Number Of Contacts
7
Specifications Operating Temperature
-55 to 125 ºC
Specifications Sealed Receptacle
No
Specifications Series
1807
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage At 70000 Ft
22 kVDC
Specifications Threaded Coupling Available
Yes
Specifications Voltage Rating
15 kVDC
Specifications Wire Type
Shielded
Wire Specifications Attenuation At 400 Mhz
10.6 db/100 ft
Wire Specifications Capacitance Nominal At 1 Khz
31 pF/ft
Wire Specifications Conductor Awg
22
Wire Specifications Conductor Plating
SPC
Wire Specifications Conductor Strands
19/34
Wire Specifications Impedance
43 O
Wire Specifications Insulation Material
FEP
Wire Specifications Insulator Diameter
0.080 in | 2.03 mm
Wire Specifications Jacket Diameter
0.125 in | 3.18 mm
Wire Specifications Jacket Material
FEP
Wire Specifications Operating Voltage
22 kVDC
Wire Specifications Part
167-9346
Wire Specifications Shielding Awg
36
Wire Specifications Shielding Diameter
0.100 in | 2.54 mm
Wire Specifications Shielding Plating
SPC
