Teledyne Reynolds 1807 Series 7 Pin Sealed Rear Mount Connector
Teledyne Reynolds 1807 Series 7 Pin Sealed Rear Mount Connector
SKU:HIG-32e11c
Teledyne Reynolds 1807 Series 7 Pin Sealed Rear Mount Connector for high-voltage military and aerospace applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Teledyne Reynolds 1807 Series 7 Pin Sealed Rear Mount Connector
$49.99
Quantity: 1
Claim Your Seller Account
Teledyne Reynolds 1807 Series 7 Pin Sealed Rear Mount Connector
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Teledyne Reynolds 1807 Series 7 Pin Sealed Rear Mount Connector is designed for high-voltage applications up to 15 kVDC and altitudes of 70,000 feet. Featuring ruggedized construction, this connector is ideal for military and aerospace use, including NASA spacecraft. With bayonet coupling, aluminum coupling nut, and sealed receptacle design, it ensures secure connections in demanding environments. The connector's gold-finished hooded female contacts and BeCu material offer optimal conductivity and durability. Compliant with strict industry standards, including panel mounting torque of 84 in.lb, this connector meets the high demands of institutional and government procurement requirements.
Product Specifications
Application 0
15 kVDCRated at 15 kVDC at altitudes up to 70,000 feet, these 7 pin connectors are ideal for higher power TWTs and RADAR power supplies.
Body Properties Body Lubricant
Dry Lube
Contact Properties Contact Finish
Gold with CRES Hood
Contact Properties Contact Material
BeCu
Contact Properties Contact Type
Female (Hooded)
Coupling Nut Properties Coupling Nut Finish
Nickel
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Assembly
Receptacle Bag Assembly
Specifications Braid Termination
Clamp
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Bayonet
Specifications Current Rating
7.5 A
Specifications Insulator Material
Plastic
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Mating Compatibility
Mates all bayonet coupled Series 1807 Plugs and Plug cable assemblies
Specifications Maximum Leak Rate Helium
1 X 10-6 cc/sec
Specifications Number Of Contacts
7
Specifications Operating Temperature
-55 to 125 ºC

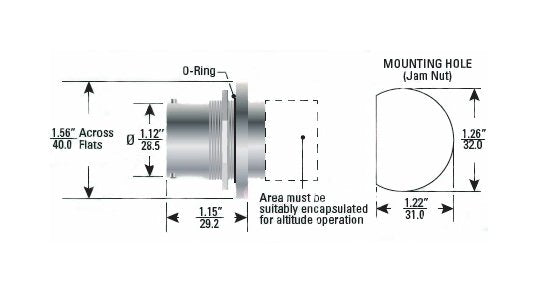

Specifications Panel Mounting Style
Rear Mount
Specifications Panel Mounting Torque
84 ± 2 in.lb
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Sealed Receptacle
Yes
Specifications Series
1807
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage At 70000 Ft
22.5 kVDC
Specifications Threaded Coupling Available
Yes
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
FEP
