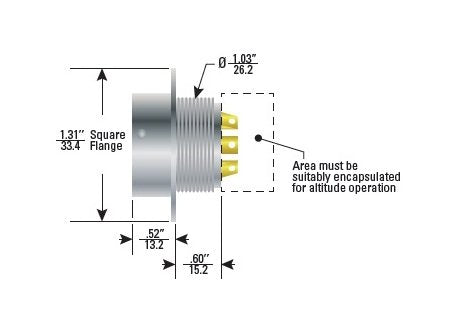

Teledyne Reynolds 1807 Series 7 Pin Threaded Front Mount Receptacle
Teledyne Reynolds 1807 Series 7 Pin Threaded Front Mount Receptacle
SKU:HIG-ff29fa
Reliable 15 kVDC 7-pin threaded receptacle for military, aerospace applications. Plastic insulator, FEP wire insulation, gold-finished BeCu contacts.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Teledyne Reynolds 1807 Series 7 Pin Threaded Front Mount Receptacle
$129.99
Quantity: 1
Claim Your Seller Account
Teledyne Reynolds 1807 Series 7 Pin Threaded Front Mount Receptacle
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Teledyne Reynolds 1807 Series 7 Pin Threaded Front Mount Box Flange Receptacle is a ruggedized high-voltage connector designed for critical applications such as military vehicles, aerospace systems, and NASA spacecraft. With a voltage rating of 15 kVDC and an altitude rating of 70,000 ft, this receptacle ensures reliable performance in extreme conditions. The receptacle features a plastic insulator, FEP wire insulation, and gold-finished BeCu contacts for superior conductivity. Its aluminum coupling nut with nickel finish provides durability and secure connection. Ideal for TWTs and RADAR power supplies, this receptacle offers exceptional reliability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
15 kVDCRated at 15 kVDC at altitudes up to 70,000 feet, these 7 pin connectors are ideal for higher power TWTs and RADAR power supplies.
Contact Properties Contact Finish
Gold with CRES Hood
Contact Properties Contact Material
BeCu
Contact Properties Contact Type
Female (Hooded)
Coupling Nut Properties Coupling Nut Finish
Nickel
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Assembly
Receptacle Bag Assembly
Specifications Braid Termination
Clamp
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Threaded
Specifications Current Rating
7.5 A
Specifications Insulator Material
Plastic
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Mating Compatibility
Mates all series 1807 threaded plugs and plug cable assemblies
Specifications Number Of Contacts
7
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Front Mount
Specifications Sealed Receptacle
Yes
Specifications Series
1807
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage At 70000 Ft
22 kVDC
Specifications Threaded Coupling Available
Yes
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
FEP
