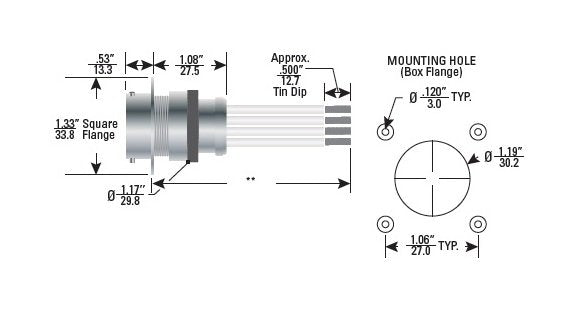

The Teledyne Reynolds 1807 Series features a ruggedized 7-pin connector, suitable for diverse applications from military vehicles to spacecraft propulsion systems. With a voltage rating of 15 kVDC, altitude rating of 70,000 ft, and operating temperature range of -55 to 125°C, this bayonet coupling assembly ensures reliable performance in demanding environments. The aluminum coupling nut with nickel finish and gold-plated BeCu contacts enhance durability and conductivity. Designed for front mounting, this assembly offers flexibility with custom cable lengths and complies with stringent manufacturing standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold with CRES Hood
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Finish
Nickel
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Assembly
Receptacle Bag Assembly
Specifications Braid Termination
Clamp
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Bayonet
Specifications Current Rating
7.5 A
Specifications Insulator Material
Plastic
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Number Of Contacts
7
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Front Mount
Specifications Series
1807
Specifications Test Voltage At 70000 Ft
22 kVDC
Specifications Threaded Coupling Available
No
Specifications Voltage Rating
15 kVDC
Wire Specifications Conductor Awg
20
Wire Specifications Conductor Plating
TPC
Wire Specifications Conductor Strands
19/32
Wire Specifications Insulation Material
FEP
Wire Specifications Insulator Diameter
0.080 in | 2.03 mm
Wire Specifications Operating Voltage
21 kVDC
Wire Specifications Part
167-9543
