Teledyne Reynolds PeeWee Series 12 kVDC Plug Cable Assembly
Teledyne Reynolds PeeWee Series 12 kVDC Plug Cable Assembly
SKU:HIG-e99f40
Reliable Teledyne Reynolds PeeWee Series 12 kVDC Plug Cable Assembly for high voltage applications. Features advanced sealing method, 1.6 Amp rating, -55 to 125 ºC temperature range, and push-pull coupling.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Teledyne Reynolds PeeWee Series 12 kVDC Plug Cable Assembly
$89.99
Quantity: 1
Claim Your Seller Account
Teledyne Reynolds PeeWee Series 12 kVDC Plug Cable Assembly
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your high voltage applications with the Teledyne Reynolds PeeWee Series 12 kVDC Plug Cable Assembly. Featuring the patented Advanced Interface™ sealing method, this connector offers a reliable current rating of 1.6 Amp and withstands extreme temperatures from -55 to 125 ºC. With a 18 kVDC test voltage and push-pull coupling, this non-standard part is engineered for lasers, photomultipliers, power supplies, and TWT devices.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.050 in
Contact Properties Contact Design
Split Finger, Closed Entry, Molded in Place
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Material
BeCu, Gold Plate with CRES Hood
Contact Properties Contact Size
24 AWG
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type

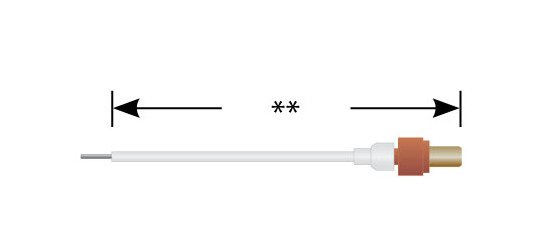

Single-Ended Straight Plug Cable Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with threaded plug assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
PeeWee
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Etched FEP
Specifications Wire Pn
178-8111
