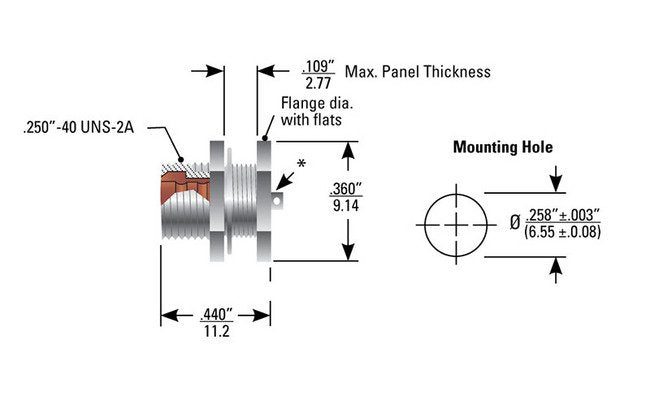

The Teledyne Reynold's PeeWee Series Connector is a subminiature high-voltage solution designed for dense electronic packaging in high voltage applications. Featuring Teledyne Reynold's patented Advanced Interface™ sealing method, this connector is rated at 12 kVDC at 70,000 feet with a wide temperature range of -55°C to 125°C. With a threaded coupling style, rear mount panel connector, and compatibility with threaded plug cable assemblies, this connector ensures secure and reliable connections in demanding environments like lasers, photomultipliers, power supplies, and TWT applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Torlon (Machined)
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Size
24 AWG
Contact Properties Contact Type
Male
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle
Specifications Coupling Style
Threaded
Specifications Current Rating
1.6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with threaded plug cable assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Rear Mount
Specifications Panel Mounting Torque
5 to 6 in-lbs
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
