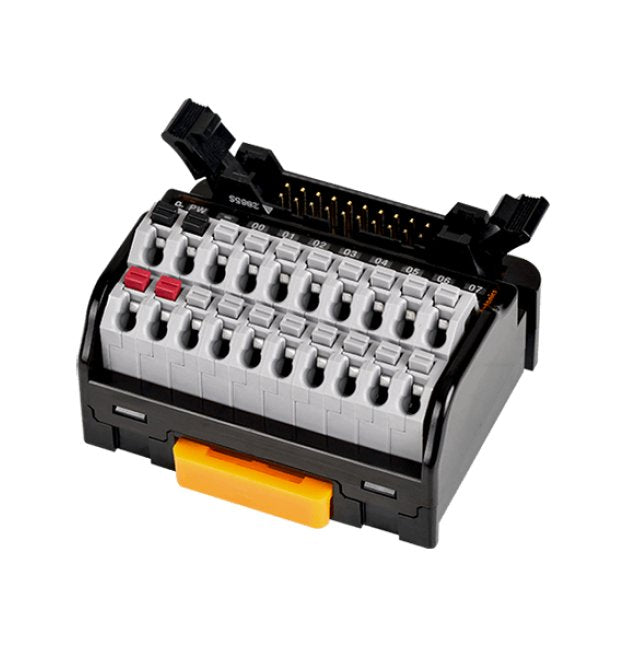

Durable screwless I/O Terminal Block (-15 to 55°C) with 20 pins, PNP configuration, and LED indicators for industrial use.
Regular price
$47.95
Regular price
Sale price
$47.95
Unit price
per
Initiate Order
Temperature Environment I/O Terminal Block -15 to 55°C
$47.95
Quantity: 1
Claim Your Seller Account
Temperature Environment I/O Terminal Block -15 to 55°C
$47.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Temperature Environment I/O Terminal Block with a range of -15 to 55°C offers a screwless interface with 20 pins and 16 terminals. It features a PNP configuration at 24VDC and is designed with polycarbonate materials for durability. With CE and cULus approvals, this terminal block ensures reliable performance in diverse environments. The red LED power indicator and blue LED operation indicator provide visual feedback, meeting the specific requirements of industrial applications.
Product Specifications
Specifications 24 Volt V Direct Current Dc Rated Voltage Toleran
±10 %
Specifications Alternating Current Ac Dielectric Strength At 506
2,700 V
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
86.3 g
Specifications Approximate Weight
48.6 g
Specifications Base Material
Polycarbonate
Specifications Case Material
Polycarbonate (PC)
Specifications Direct Current Dc Rated Voltage
24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
47.95 USD
Specifications Number Of Connector Pins
20
Specifications Number Of Terminals
16 Each
Specifications Operation Indicator
Blue Light Emitting Diode (LED)
Specifications Power Indicator
Red Light Emitting Diode (LED)
Specifications Protection Structure
Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard)
Specifications Rated Current
&l; 1 A
Specifications Terminal Pitch
5.0 mm
Specifications Terminal Type
Screwless
Specifications Weight
0.2 lb
