Temperature Environment Input/Output (I/O) Terminal Block -15 to 55°C
Temperature Environment Input/Output (I/O) Terminal Block -15 to 55°C
SKU:PRO-7ca6ea
Reliable Temperature Environment I/O Terminal Block, 50 Terminals, -15 to 55°C, CE & cULus Listed
Regular price
$62.95
Regular price
Sale price
$62.95
Unit price
per
Initiate Order
Temperature Environment Input/Output (I/O) Terminal Block -15 to 55°C
$62.95
Quantity: 1
Claim Your Seller Account
Temperature Environment Input/Output (I/O) Terminal Block -15 to 55°C
$62.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

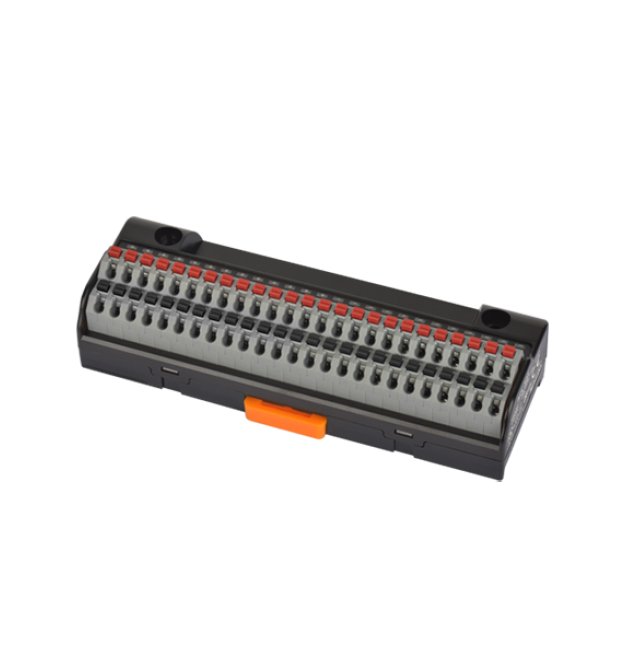

The Temperature Environment Input/Output (I/O) Terminal Block provides a reliable and durable solution for electrical connectivity. Designed for a wide range of operating temperatures (-15 to 55°C), this screwless terminal block features 50 terminals with Up-Down COM configuration, ideal for secure and efficient wiring. With approvals including CE and cULus listings, this terminal block ensures compliance with European and North American safety standards. Constructed with high-quality materials such as Polyamide 66 and Tin Plated Copper, it offers excellent insulation resistance, dielectric strength, and a maximum rated current of 10A. Suitable for a diverse range of applications, this terminal block is a dependable choice for both consumer and institutional needs.
Product Specifications
Specifications Alternating Current Ac Dielectric Strength At 506
3,000 V
Specifications Alternating Current Ac Rated Voltage
â¤250 V
Specifications Applicable Cable Diameter Solid Wire 60 Degree Ce
0.6 to 1.25 mm
Specifications Applicable Cable Stranded Wire 60 Degree Celsius
22-16 AWG | 0.30 to 1.25 mm²
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
164 g
Specifications Approximate Weight
97 g
Specifications Base Material
Polycarbonate
Specifications Case Material
Polycarbonate (PC)
Specifications Common Type
Up +COM, Down -COM
Specifications Conducting Plate
Tin Plated Copper
Specifications Direct Current Dc Rated Voltage
â¤250 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
62.95 USD
Specifications Maximum Alternating Current Ac Rated Voltage
125 V
Specifications Maximum Rated Current
10 A
Specifications Number Of Terminals
50 Each
Specifications Rated Frequency
50 Hz | 60 Hz
Specifications Stripped Wire Length
8 to 10 mm
Specifications Terminal Material
Polyamide 66
Specifications Terminal Pitch
5.0 mm
Specifications Terminal Type
Screwless
Specifications Weight
0.2 lb
