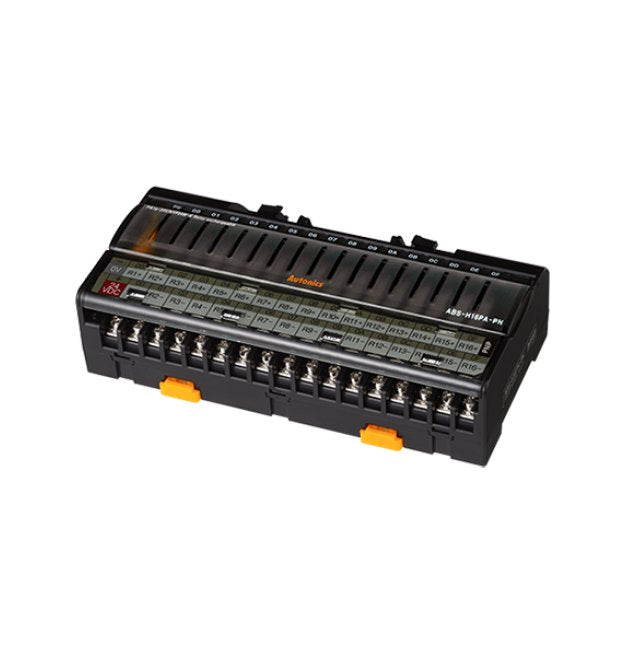

Temperature Input/Output (I/O) Terminal Block (-15 to 55°C)
Temperature Input/Output (I/O) Terminal Block (-15 to 55°C)
SKU:PRO-f1aec4
Reliable Temperature Input/Output (I/O) Terminal Block with wide -15 to 55°C range, CE/cULus approved, 16 relay points, Hirose connector, and LED indicators.
Regular price
$246.95
Regular price
Sale price
$246.95
Unit price
per
Initiate Order
Temperature Input/Output (I/O) Terminal Block (-15 to 55°C)
$246.95
Quantity: 1
Claim Your Seller Account
Temperature Input/Output (I/O) Terminal Block (-15 to 55°C)
$246.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Temperature Input/Output (I/O) Terminal Block is a reliable solution for industrial applications, featuring a wide operating temperature range of -15 to 55°C. With approval from European Conformity (CE) and cULus, this terminal block ensures safety and compliance. It offers 16 relay points with 3A rated current, a Hirose connector, and LED indicators for easy monitoring. Constructed with durable materials and meeting stringent quality standards, this terminal block is ideal for environments requiring stability and performance.
Product Specifications
Accessories Accessories
Jumper Bar: 2 (Model:JB-7.62-08)
Specifications Alternating Current Ac Dielectric Strength Betwee
1,000 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable
22-16 AWG | 0.30 to 1.25 mm²
Specifications Applied Relay
APAN3124 [MATSUSHITA (Panasonic)]
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
307 g
Specifications Approximate Weight
224 g
Specifications Body Material
Polyamide 66 (G25%)
Specifications Case Material
Modified Polyphenylene Oxide (MPPO)
Specifications Connector Type
Hirose Connector
Specifications Current Consumption
⤠13 mA | ⤠8 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Input Direct Current Dc Voltage
12 to 24 V
Specifications Input Logic
Positive-Negative-Positive (PNP)
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
246.95 USD
Specifications Maximum Rated Current
3 A
Specifications Number Of Connector Pins
20
Specifications Number Of Relay Points
16-Point
Specifications Number Of Terminals
16 Each
Specifications Operation And Disconnection Indicator
Blue Light Emitting Diode (LED)
Specifications Power Indicator
Red Light Emitting Diode (LED)
Specifications Rated Current
3 A
Specifications Relay Type
Matsushita (Panasonic) PA
Specifications Terminal Pin Material
Brass
Specifications Weight
1 lb
