Temperature-Resistant I/O Terminal Block
Temperature-Resistant I/O Terminal Block
SKU:PRO-2bc59b
Reliable I/O terminal block for harsh environments, -15 to 55°C, CE & UL listed, durable construction.
Regular price
$15.95
Regular price
Sale price
$15.95
Unit price
per
Initiate Order
Temperature-Resistant I/O Terminal Block
$15.95
Quantity: 1
Claim Your Seller Account
Temperature-Resistant I/O Terminal Block
$15.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

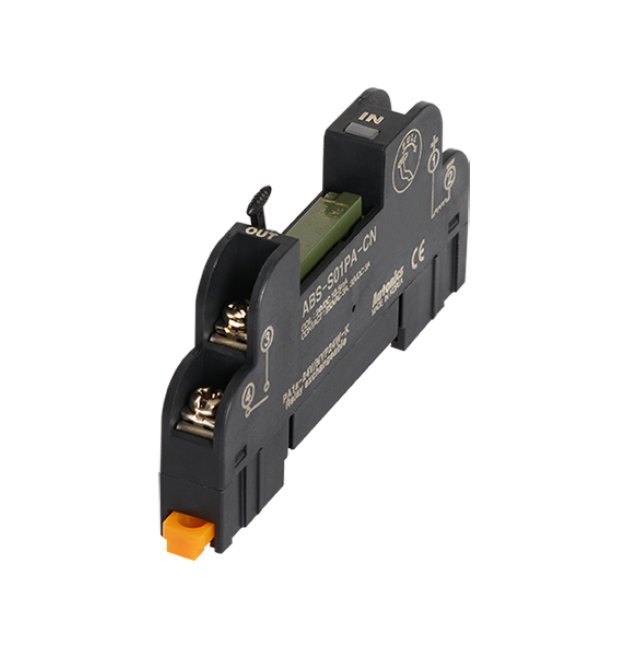

Ensure reliable electrical connections in harsh environments with our Temperature-Resistant I/O Terminal Block. This screw-type relay terminal block operates at temperatures ranging from -15 to 55°C, making it ideal for industrial settings. It features approval from European Conformity (CE) and Underwriter Laboratories (UL), guaranteeing compliance with international standards. With brass terminal pins and polyamide construction, this terminal block offers durability and high insulation resistance. The blue LED indicator allows for easy operation monitoring, while its screw connector type ensures secure cable connections.
Product Specifications
Specifications Alternating Current Ac Dielectric Strength Betwee
1,000 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable
22-16 AWG | 0.30 to 1.25 mm²
Specifications Applied Relay
APAN3124 [MATSUSHITA (Panasonic)]
Specifications Approval
European Conformity (CE) | Underwriter Laboratories (UL) Listed
Specifications Approximate Packaged Weight
314.5 g
Specifications Approximate Weight
21.5 g
Specifications Base Material
Polyamide 6
Specifications Case Material
Polyamide 6
Specifications Connector Type
Screw
Specifications Current Consumption
⤠8 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Input Direct Current Dc Voltage
12 to 24 V
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
15.95 USD
Specifications Maximum Rated Current
3 A
Specifications Number Of Relay Points
1-Point
Specifications Number Of Terminals
1 Each
Specifications Operation Indicator
Blue Light Emitting Diode (LED)
Specifications Rated Current
3 A
Specifications Relay Type
Matsushita (Panasonic) PA
Specifications Terminal Pin Material
Brass
Specifications Weight
0.56 lb
