Temperature-Resistant I/O Terminal Block
Temperature-Resistant I/O Terminal Block
SKU:PRO-22bf0e
Versatile and durable I/O Terminal Block with -15 to 55°C operating temperature range, CE and cULus listed, ideal for industrial applications.
Regular price
$48.95
Regular price
Sale price
$48.95
Unit price
per
Initiate Order
Temperature-Resistant I/O Terminal Block
$48.95
Quantity: 1
Claim Your Seller Account
Temperature-Resistant I/O Terminal Block
$48.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

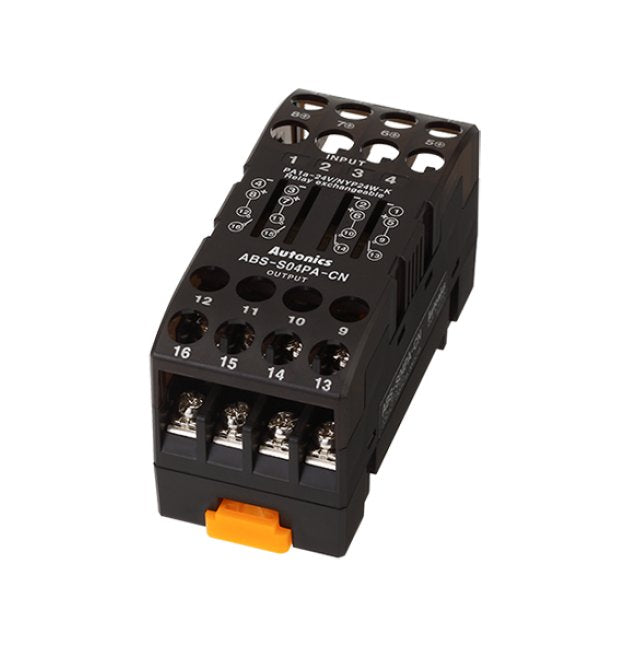

The Temperature-Resistant I/O Terminal Block is designed for versatile industrial applications, with a temperature range of -15 to 55°C. This screw-type terminal block features 4 relays (250VAC 3A, 30VDC 3A) from Matsushita (Panasonic), ensuring reliable connectivity under varying environmental conditions. The terminal block is CE and cULus listed, crafted from Modified Polyphenylene Oxide (MPPO) for durability, and equipped with a blue LED indicator for easy monitoring. With high insulation resistance, screw connectors, and a 22-16 AWG applicable cable range, this terminal block is a dependable solution for demanding environments.
Product Specifications
Accessories Accessories
Jumper Bar: 2 (Model:JB-7.62-04)
Specifications Alternating Current Ac Dielectric Strength Betwee
1,000 V
Specifications Alternating Current Ac Rated Voltage
250 V
Specifications Applicable Cable
22-16 AWG | 0.30 to 1.25 mm²
Specifications Applied Relay
APAN3124 [MATSUSHITA (Panasonic)]
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
104 g
Specifications Approximate Weight
68 g
Specifications Base Material
Modified Polyphenylene Oxide (MPPO)
Specifications Case Material
Modified Polyphenylene Oxide (MPPO)
Specifications Connector Type
Screw
Specifications Current Consumption
⤠8 mA
Specifications Direct Current Dc Rated Voltage
24 V | 30 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Input Direct Current Dc Voltage
12 to 24 V
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
48.95 USD
Specifications Maximum Rated Current
3 A
Specifications Number Of Relay Points
4-Point
Specifications Number Of Terminals
4 Each
Specifications Operation Indicator
Blue Light Emitting Diode (LED)
Specifications Rated Current
3 A
Specifications Relay Type
Matsushita (Panasonic) PA
Specifications Terminal Pin Material
Brass
Specifications Weight
1 lb
