Temperature-Resistant Screwless Terminal Block - 20Pin, 24VDC
Temperature-Resistant Screwless Terminal Block - 20Pin, 24VDC
SKU:PRO-37643f
Enhance connectivity with our Temperature-Resistant Screwless Terminal Block, -15 to 55 °C range, ideal for industrial applications.
Regular price
$47.95
Regular price
Sale price
$47.95
Unit price
per
Initiate Order
Temperature-Resistant Screwless Terminal Block - 20Pin, 24VDC
$47.95
Quantity: 1
Claim Your Seller Account
Temperature-Resistant Screwless Terminal Block - 20Pin, 24VDC
$47.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

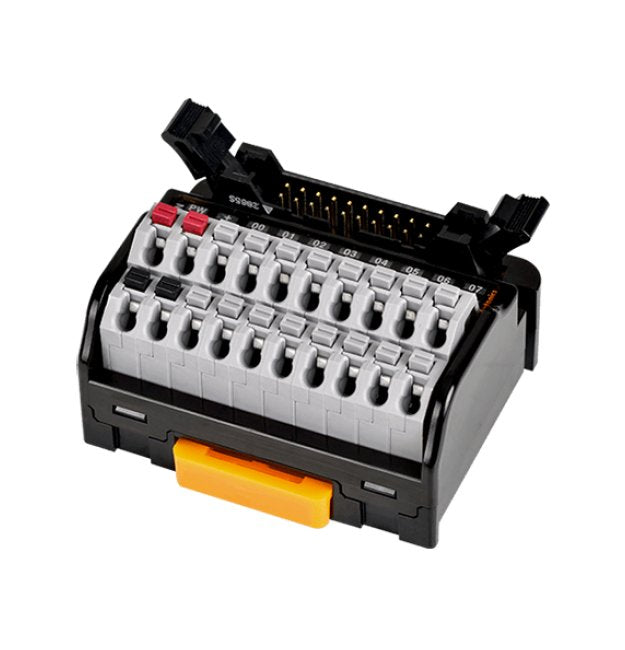

Experience seamless connectivity with our Temperature-Resistant Screwless Terminal Block featuring a wide operating temperature range of -15 to 55 °C. This terminal block is designed for optimal performance in diverse environmental conditions, offering NPN configuration, LED power and operation indicators, high insulation resistance, and robust construction with Polycarbonate material. Certified to meet European Conformity (CE), cULus, and IP20 standards, this terminal block is ideal for both industrial and commercial applications where reliability is paramount.
Product Specifications
Specifications 24 Volt V Direct Current Dc Rated Voltage Toleran
±10 %
Specifications Alternating Current Ac Dielectric Strength At 506
2,700 V
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
86.3 g
Specifications Approximate Weight
48.6 g
Specifications Base Material
Polycarbonate
Specifications Case Material
Polycarbonate (PC)
Specifications Direct Current Dc Rated Voltage
24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-15 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Insulation Resistance At 500 Volt V Direct Curren
â¥1,000 MΩ
Specifications List Price
47.95 USD
Specifications Number Of Connector Pins
20
Specifications Number Of Terminals
16 Each
Specifications Operation Indicator
Blue Light Emitting Diode (LED)
Specifications Power Indicator
Red Light Emitting Diode (LED)
Specifications Protection Structure
Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard)
Specifications Rated Current
&l; 1 A
Specifications Terminal Pitch
5.0 mm
Specifications Terminal Type
Screwless
Specifications Weight
0.2 lb
