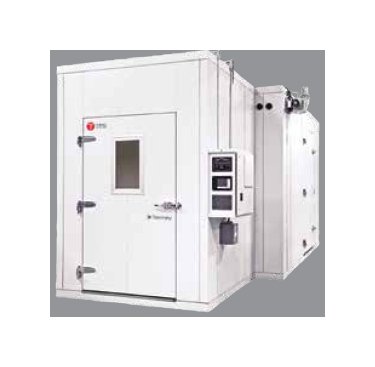

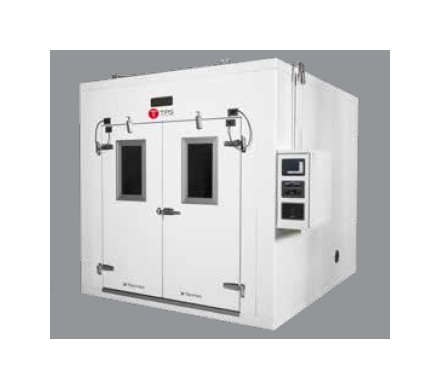

Custom and standard environmental rooms to match your application and facility needs. When your testing requires walk-in rooms, choose Tenney. Our test rooms feature automated process control, energy efficiency, and a vast range of features and options. Every Tenney environmental room features state-of-the-art equipment that reliably produces required conditions, structural integrity that keeps the room working properly through years of demanding test cycles, and measuring/monitoring equipment that precisely records all test data. Tenney environmental rooms are used world-wide for many testing applications. Almost every tool, product or component that is used in the home, factory or field is tested with environmental simulation equipment. Tenney’s engineering experience can deliver environmental rooms to meet your exact requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Available Door Height
77 in
Specifications Available Door Width
36 in | 48 in | 72 in
Specifications Available Refrigeration Hp Sizes Single Stage Or
10 | 15 | 25 | 30 | 5 | 7.5
Specifications Capacity
316 ft³
Specifications Construction
36 Inch (in) x 78 Inch (in) door | 4 Inch (in) (100 Millimeter (mm)) insulated wall panels | Humidity range: 20% to 95% | Interior lighting | Modular design for easy transport and setup | Optional 3 Inch (in) or 6 Inch (in) ports | Temperature range: -73°C to 85°C | Thermally insulated and heated windows
Specifications Controls
The microprocessor-based controller allows the operator to program up to 40 profiles, including the common steps of ramp, soak, and guaranteed soak. The user-friendly 7 Inch (in) touch screen display also includes ports for Ethernet, USB, serial, and SD card connections. The controller provides data logging, alarm and event monitoring, and remote access from any computer with internet access. The included dual alarm relays can be programmed as either process or deviation alarms.
Specifications Efficient Tenney Humidity And Conditioning System
Durable and reliable construction | Easy access panel for maintenance | High quality compressors | Quiet operation | Tenney Vapor Flow®
Specifications Environmental Room Options
Airflow and Humidity Control | Chart Recorders | CO2 and LN2 Injection | Extended Humidity Range | Floor Coverings | Flooring | Insulation | Lighting | Ramps | Remotely Located Refrigeration | Rigid Hard Walled Frame for Strength | Room Air Exhaust and Fresh Air Input | Safety Systems (heat overload, fire, gas monitoring, door locks, sound levels) | Stainless Steel Interior is Hermetically Welded | Temperature Control | Test Product Heat Dissipation | Water and Air Supply Conditioning | Windows and Ports
Specifications Exterior Depth
104.5 in
Specifications Exterior Height
104.5 in
Specifications Exterior Width
81.5 in
Specifications Flexibility
Each chamber panel consists of 4 Inch (in) (100 Millimeter (mm)) thick urethane foam between a stainless steel interior wall and a galvanized exterior wall. After the chamber panels are assembled, the walk-in room is self-supporting, eliminating the need for additional structure supports. The chambers can be ordered with different door sizes, access ports, and options as necessary.
Specifications Industries
Appliance Testing | Automotive | Electrical | Energy Technologies | Medical Research | Microbiology | Microelectronics
Specifications Interior Depth
77.5 in
Specifications Interior Height
96 in
Specifications Interior Width
73.5 in
Specifications Special Features
Heavy duty floor supports 1000 lb/ft2 of equally distributed weight | Optional charts | Optional external dryers to achieve very low humidity levels | Optional water demineralization | Redundant over temperature protection and alarms | Refrigeration taps and pressure gauges
Specifications Standard Panelized Walk In Chambers
The interlocking panelized chambers can be quickly shipped and assembled for less cost than a non-panelized chamber. The chamber panels interlock using a tongue and groove assembly that can be secured using cam latches and silicone sealant. The latches connect to metal banding links that are embedded in the panels to create a structurally strong chamber.
