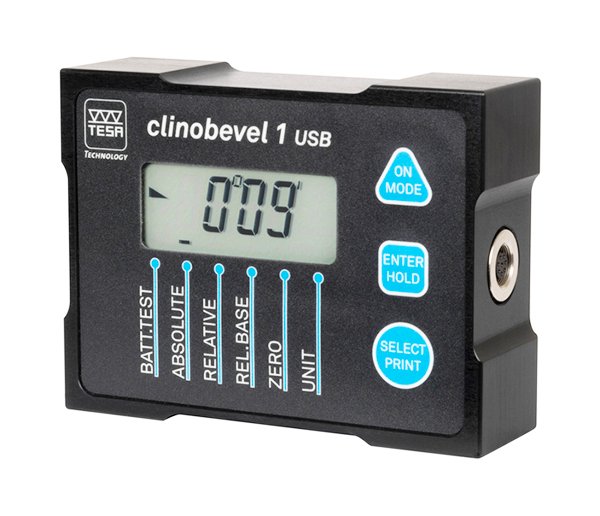

TESA ClinoBEVEL 1 Electronic Inclinometer with USB Connectivity
TESA ClinoBEVEL 1 Electronic Inclinometer with USB Connectivity
SKU:INC-14c370
Precisely measure tilt angles with the TESA ClinoBEVEL 1 Inclinometer for reliable results in various industries.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
TESA ClinoBEVEL 1 Electronic Inclinometer with USB Connectivity
$599.99
Quantity: 1
Claim Your Seller Account
TESA ClinoBEVEL 1 Electronic Inclinometer with USB Connectivity
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The TESA ClinoBEVEL 1 Electronic Inclinometer is a user-friendly and versatile instrument designed for precise measurement of tilt angles in direct and differential modes. With a measuring range of ±45º, reinforced aluminum housing, and advanced electronics, it ensures accurate readings. The large LC display offers clear angle and slope measurements, making it ideal for applications in hydraulic engineering, machining, and aerospace industries.
Product Specifications
Technical Specs Aerospace Industry
Measuring the inclination of helicopter rotor blades or plane wings With the TESA CLINOBEVEL 1 USB, checking the inclination of helicopter rotor blades or plane wings to verify that they respect the correct criteria can be simple and quick. The instrument
Technical Specs Brands
Tesa
Technical Specs Calibration Range
50 º
Technical Specs Data Output
RS 485, Asynchronous, 7 Bit, 2 Stop Bit, No Parity, 9600 bps
Technical Specs Degree Of Protection
IP65 (CEI 60529)
Technical Specs Dimensions
100 x 75 x 35 mm
Technical Specs Display
Liquid Crystal Display (LCD) angle display
Technical Specs Electromagnetic Compatibility
EN 50081-1/2 EN 50082-1/2
Technical Specs Hydraulic Engineering
Measuring the inclination of a pipe Measuring the inclination of a pipe is important to show any relevant difference to the ideal inclination course of the pipe. The TESA CLINOBEVEL 1 USB can be a compact and portable solution to calculate these relevant
Technical Specs Included In Delivery
Measuring reportDeclaration of conformity
Technical Specs Machining Industry
Measuring the inclination of a rotation working plate The TESA CLINOBEVEL 1 USB can be used to control the inclination of a rotation working plate on a 5-axis milling machine. The 45º measuring range allows these measurements on big machining plates with
Technical Specs Material
Aluminium
Technical Specs Maximum Permissible Errors
2' (0.6 mm/m) + 1 Numerical Interval
Technical Specs Power Supply
1 Battery Type LRC 6, AA
Technical Specs Power Supply Voltage
1.5 V
Technical Specs Resolution Mmm
⥠0.02
Technical Specs Standard
DIN 2276
Technical Specs Tesa Clinosoft Software
The TESA CLINOBEVEL 1 USB can be connected to any PC via a USB-RS-485 cable. The TESA CLINOSOFT software allows the acquisition of measuring data from the TESA CLINOBEVEL 1 USB, to display results in real time and to export them to an Excel file. The soft
Technical Specs Units
DEG, mm/m, â/10", â/12", mRad, DEG/min, min/sec, mm/REL, â/REL, A%o, GONAbsolute zero represents a base for absolute inclination measurements. It is automatically calculated and set from the two values entered when conducting a reversal measurement (t
