Texwrap BVS Vertical Sealer 14in
Texwrap BVS Vertical Sealer 14in
SKU:PAC-d8047e
Elevate your packaging with Texwrap BVS Vertical Sealer - ideal for secure, attractive multipack sealing. Enjoy efficient, high-speed operation and precise product control.
Regular price
$24,999.00
Regular price
Sale price
$24,999.00
Unit price
per
Initiate Order
Texwrap BVS Vertical Sealer 14in
$24,999.00
Quantity: 1
Claim Your Seller Account
Texwrap BVS Vertical Sealer 14in
$24,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

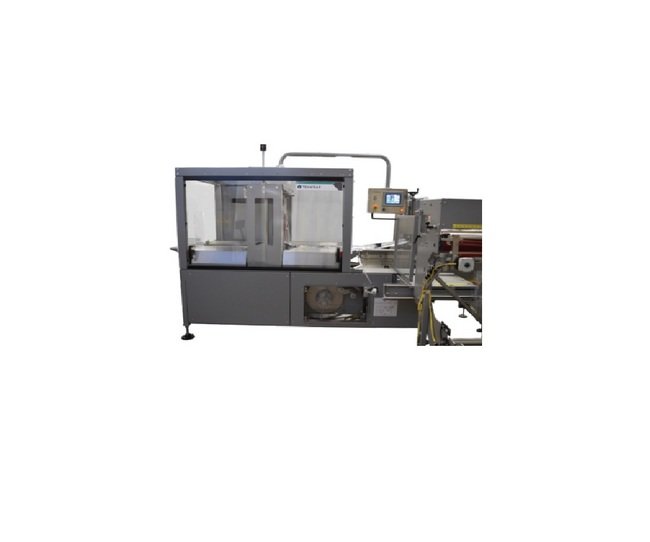

The Texwrap BVS Series 14 Inch Maximum Package Height Vertical Box Motion Sealer is a cutting-edge solution designed for secure and attractive packaging of multipacks. With servo-controlled seal jaws, versatile infeed designs, and precise product control, this sealer ensures consistent, high-speed operation. Incorporating Texwrap's patented Motion Trim™ Technology and Versa Seal system, it offers efficient bottom trim sealing and maximizes throughput. Ideal for vertical packaging of bottles, cans, jars, or canisters, the BVS Vertical Sealer eliminates the need for product collation, reducing labor costs and enhancing package appearance.
Product Specifications
Additional Information Additional Information
To further enhance the retail appearance of multipacks, the BVS combines with an optional Automatic Label Positioning System (Orientor) that positions all product labels in precisely the same direction.In applications where the boot was also used to hide bar codes, the wrapper can use printed film or a label to hide the bar codes and identify the new unit as a multipack, creating the most attractive and secure package.Texwrap®'s BVS Series Vertical Sealer is the sister machine to the CSS Series Side Sealers.The BVS Series machines take the CSS horizontal wrappers technology and applies it to wrap products in the upright position. Vertical wrappers are used to wrap multipacks of products such as bottles, cans, jars, or canisters directly from a filler.The BVS Vertical Sealers are ideally suited to multipacks or variety packs that exit upstream equipment in a vertical position. Vertical sealers provide packagers a way to shrink wrap these packs without the labor and expense of laying them down prior to wrapping on side sealing systems. The BVS series sealers also eliminate the need for a "boot" to collate the product before sealing. The end result is a very secure and attractive package. To further enhance retail appearance, the BVS can also be combined with an Automatic Label Positioning System (Orientor) and all the labels in of a multipack of product will be facing precisely the same direction.In applications where the boot was also used to hide bar codes, the packager can now use printed film or a label to hide the bar codes and identify the new unit as a multipack to create the most attractive and secure package. Texwrap® does not use a bottom lap seal which can fail or an unsightly side seam on the face of the package. Instead, we use our exclusive Versa Seal system to create a full, secure bottom trim seal.The BVS-914 continuous motion vertical sealer is a moderate speed vertical shrink system capable of running products in an upright position. The BVS-914 can achieve speeds up to 70 packs per minute on this precise sealing, centerline design machine. The advantages of vertical wrapping are available for products such as bottles, jars or cans in slower in-line or even off-line applications with a max product size of 9" W by 14"H. It is perfect for contract packagers where the products are often manually loaded to form multi-packs of an item.Texwrap®âs BVS Series Vertical Wrappers can be configured with an infeed from Texwrap® to take the product from the upstream equipment and handle it to prepare the product to be wrapped and then passed through the shrink tunnel to fully automate the wrapping process. Texwrap® has developed a variety of standard infeed designs or we can create a unique design depending on the application requirement. Our BVS Series Vertical Seal Turnkey Solutions provide the customer with a complete solution to reduce or dramatically reduce manual labor required for the lineâs shrink wrapping operations.Why Texwrap®?Texwrap®âs BVS Series systems employs Texwrap® Versa Seal technology that ensures the machine creates a consistent, quality seal at a high speed, and are robust enough to run continuously, 3 shifts per day, 7 days a week.Each machine is equipped with Texwrap®âs patented Motion Trim⢠technology and conveyor speeds up to 140 feet per minute. The result is a machine that maximizes speed yet minimizes wear on moving parts.Made in the U.S.A. quality and customer support, and our industry leading 10-Year BuiltBetter Backed-Better Warranty ensure the Lowest Total Cost of Ownership in the Industry.The TVS DifferenceThe rugged yet simple design of the patented TVS (Texwrap® Versa Seal) sealing system produces the ultimate in consistent seal quality across a broad range of film types and gauges â with little or no adjustment.Using very few moving parts, no air, and an uncoated sealing element ensures consistent seal quality with very little maintenance.Texwrap® provides high-quality stand-alone machinery and systems to produce commercially attractive shrink wrapped and shrink bundled products that are protected for storage and shipping. We provide one of the most comprehensive lines of cost-effective high-speed shrink wrapping and bundling solutions for a variety of applications including L-bar sealers, continuous motion side sealers, intermittent motion side sealers, lap sealers, and vertical wrappers, as well as tunnels, conveyors, and infeeds. We also specialize in designing and building systems for e-commerce packaging, as well as custom systems to fit unique applications for a variety of shaped products.We have a network of highly-trained packaging distributor partners to better serve our customers. These partnerships ensure the best machinery and application fit, smooth startup, reliable local service, and long-term return on investment.
Features Features
Servo Controlled Seal JawServo controlled seal jaws allowing operation at a higher rate and still maintain consistent, precision seals.Texwrap® Designed Product InfeedUtilizing its library of infeed designs Texwrap® will configure a solution to optimize product output.Standard Auto-Spacing ControlUsing vertical or horizontal photo eyes to detect leading and trailing edges of product to create consistent spacing between products.Centerline JustifiedEasily paired with Texwrap® infeed to provide a precise, consistent flow of product into the wrapper.Precise Product ControlFinely tuned product control through the transition zones to maximize seal strength and quality.Patented Texwrap®'s Versa Seal (TVS) bottom trim seal technology.Texwrap® patented Motion Trim⢠Technology that increases throughput by the running infeed and exit conveyors while seal jaws are in motion.Upstream/downstream handshaking, feeder controls, optional quick connect cable system for additional equipment.Independent conveyor control allows relaxed film at cross seal and transitions.
Specifications Conveyor Speed
0 to 140 ft/min
Specifications Country Of Origin
Designed and manufactured in the USA
Specifications Maximum Center Folded Film Width
24 in
Specifications Maximum Package Height
14 in
Specifications Maximum Package Length
Infinite
Specifications Maximum Package Width
9 in
Specifications Note For Maximum Package Size
Both Height & Width cannot be at maximum dimension

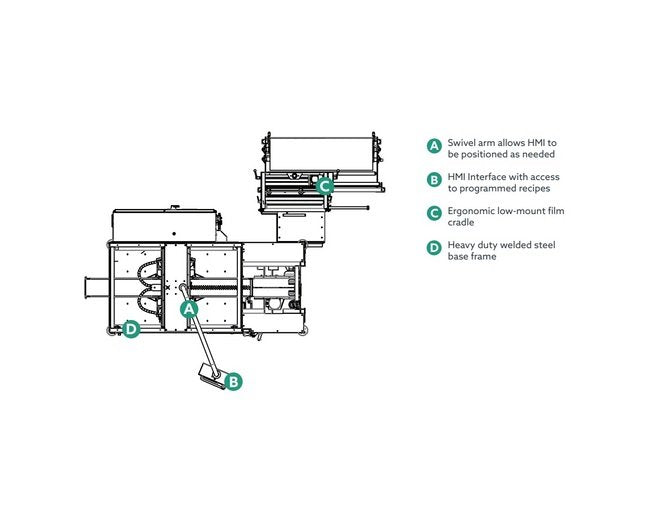

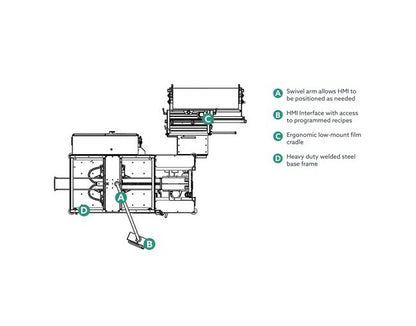

Specifications Note For Wrapper Footprint
Does not include door clearance, swivel arm position, or other options
Specifications Optional Construction Material
Corrosion Resistant Heavy-Duty Welded Tubular Steel Construction for Wipe-Down Environments
Specifications Optional Single Wound Film Width
48 in
Specifications Orientation
Right or Left-hand configuration available
Specifications Standard Construction Material
Heavy-Duty Welded Tubular Steel
Specifications Wrapper Length
134 in
Specifications Wrapper Width
73 in
