Texwrap CSS Series 10-Inch Continuous Motion Shrink Side Sealer
Texwrap CSS Series 10-Inch Continuous Motion Shrink Side Sealer
SKU:PAC-baf999
Texwrap CSS Series 10-Inch Continuous Motion Side Sealer for high-speed and flexible packaging needs.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
Texwrap CSS Series 10-Inch Continuous Motion Shrink Side Sealer
$18,999.00
Quantity: 1
Claim Your Seller Account
Texwrap CSS Series 10-Inch Continuous Motion Shrink Side Sealer
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

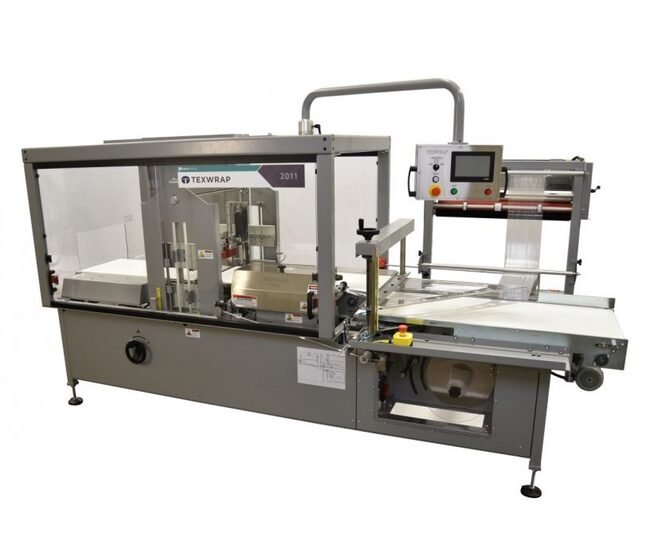

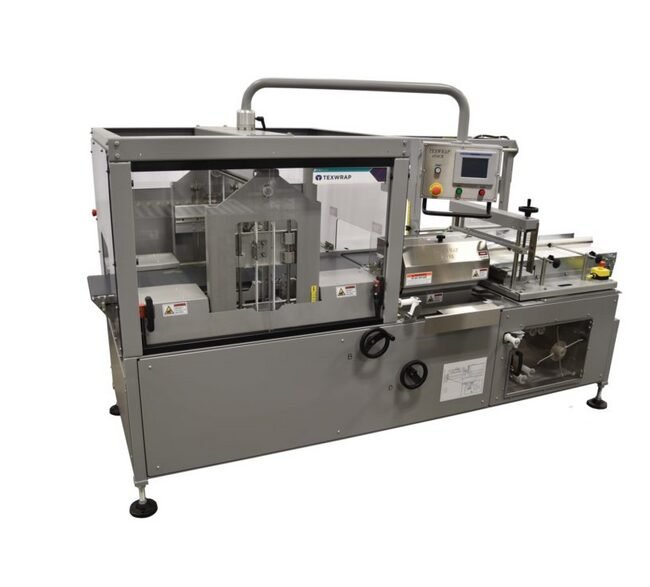

The Texwrap CSS Series 10-Inch Continuous Motion Shrink Side Sealer is engineered for high throughput speed and unparalleled package flexibility. With Texwrap's patented Motion Trim™ technology, auto-spacing control, and industry-leading servodriven seal, this side sealer ensures maximum efficiency and reliability. Designed and manufactured in the USA with heavy-duty materials, this sealer offers a versatile solution for demanding production environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information

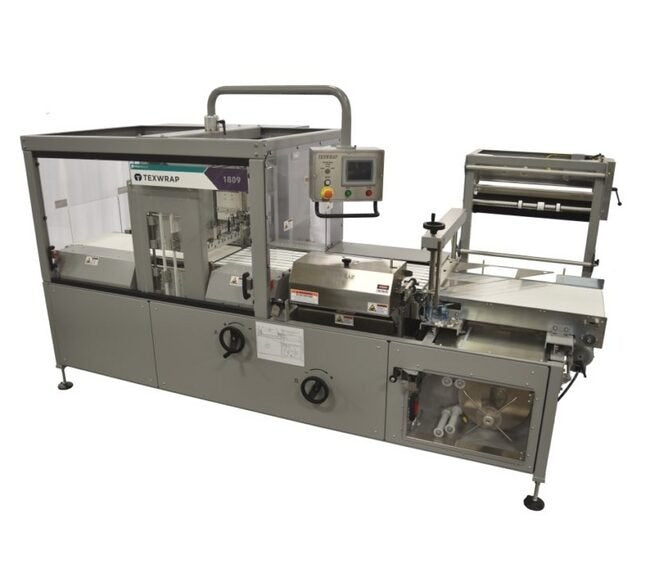

The CSS-1809 Continuous Motion Side Seal System is Texwrap®âs offering for applications demanding a very fast servo wrapper versatile enough to accommodate a variety of product sizes. The Model CSS-1809 sealer is built for the most demanding production environments. The CSS-1809 uses âGeneration 3â servo technology meaning that it was designed from the ground up to integrate servo technology, PLC control, and the mechanical elements of the machine. The result is one incredibly fast, reliable, and flexible wrapper with minimal moving parts, minimal maintenance requirements and maximum performance.Flexibility and ease-of-use are hallmarks of Texwrap® design. The CSS-1809 series has many built-in features such as programmable cross seal pressure, speed modulation to automatically increase or decrease system speed to follow upstream production, âauto spaceâ to precisely separate randomly-fed products, and a âmaximizerâ control to automatically bring the entire system to top speed for any given setup. In designing the CSS-1809 series, Texwrap® also considered the many different types of upstream feeding systems with which the CSS-1809 might be paired and built in extra capacity making it easy to integrate into almost any application.If your shrink wrap application requires the highest level of production performance, true 24/7 reliability and maximum flexibility to accommodate a variety of product sizes, the Texwrap® Model CSS-1809 is the perfect solution.Texwrap®âs CSS Series Side Seal Wrappers can be configured with an infeed from Texwrap® to take the product from the upstream equipment and handle it to prepare the product to be wrapped and then passed through the shrink tunnel to fully automate the wrapping process.Texwrap® has developed a variety of standard infeed designs or we can create a unique design depending on the application requirement. Our CSS Series Side Seal Wrapping Turnkey Solutions provide the customer with a complete solution to reduce or dramatically reduce manual labor required for the lineâs shrink wrapping operations.Why Texwrap®?Texwrap®âs CSS Series systems employs Texwrap® Versa Seal technology that ensures the machine creates a consistent, quality seal at a high speed, and are robust enough to run continuously, 3 shifts per day, 7 days a week.Each machine is equipped with Texwrap®âs patented Motion Trim⢠technology and conveyor speeds up to 140 feet per minute. The result is a machine that maximizes speed yet minimizes wear on moving parts.Made in the U.S.A. quality and customer support, and our industry leading 10-Year BuiltBetter Backed-Better Warranty ensure the Lowest Total Cost of Ownership in the IndustryThe TVS DifferenceThe rugged yet simple design of the patented TVS (Texwrap® Versa Seal) side seal system produces the ultimate in consistent seal quality across a broad range of film types and gauges â with little or no adjustment.Using very few moving parts, no air, and an uncoated sealing element ensures consistent seal quality with very little maintenance.Texwrap® provides high-quality stand-alone machinery and systems to produce commercially attractive shrink wrapped and shrink bundled products that are protected for storage and shipping. We provide one of the most comprehensive lines of cost-effective high-speed shrink wrapping and bundling solutions for a variety of applications including L-bar sealers, continuous motion side sealers, intermittent motion side sealers, lap sealers, and vertical wrappers, as well as tunnels, conveyors, and infeeds. We also specialize in designing and building systems for e-commerce packaging, as well as custom systems to fit unique applications for a variety of shaped products.We have a network of highly-trained packaging distributor partners to better serve our customers. These partnerships ensure the best machinery and application fit, smooth startup, reliable local service, and long-term return on investment.
Features Features
Motion Trim⢠TechnologyTexwrap®'s patented technology increases throughput by the running infeed and exit conveyors while seal jaws are in motion.Standard Auto-Spacing ControlUsing vertical or horizontal photo eyes to detect leading and trailing edges of product to create consistent spacing between products.Automatic Bag Length AdjustmentHorizontal and vertical photo eyes control cross seal, and provide automatic bag length adjustmentSelf-Contained Film Scrap Wind-UpFilm scrap wind-up system with automatic speed compensating dancer bar control.Texwrap® Patented Hydraulic Cam Continuous Motion, and Servo end seal.Standard auto-spacing control using vertical and horizontal photoeyes.Horizontal and vertical photoeye controlled cross seal to provide automatic adjustment for bag length.Texwrap® Industry leading 10 year warranty.
Specifications Conveyor Speed
0 to 140 ft/min
Specifications Country Of Origin
Designed and manufactured in the USA
Specifications Maximum Center Folded Film Width
32 in
Specifications Maximum Package Height
10 in
Specifications Maximum Package Length
Infinite
Specifications Maximum Package Width
20 in
Specifications Note For Maximum Package Size
Both Height & Width cannot be at maximum dimension
Specifications Note For Wrapper Footprint
Does not include door clearance, swivel arm position, or other options
Specifications Optional Construction Material
Corrosion Resistant Heavy-Duty Welded Tubular Steel Construction for Wipe-Down Environments
Specifications Optional Single Wound Film Width
64 in
Specifications Orientation
Right or Left-hand configuration available
Specifications Standard Construction Material
Heavy-Duty Welded Tubular Steel
Specifications Wrapper Length
135 in
Specifications Wrapper Width
71 in
