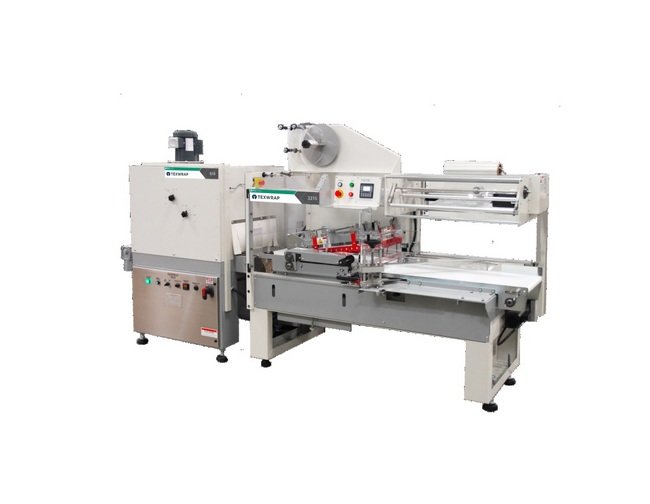

Texwrap Spartan Series 2215 Automatic L-Sealer
Texwrap Spartan Series 2215 Automatic L-Sealer
SKU:PAC-5acabf
Meet diverse production needs with the Texwrap Spartan Series 2215 Automatic L-Sealer. Space-saving design, made in the USA, and efficient packaging speeds up to 30 packages/min.
Regular price
$10,999.99
Regular price
Sale price
$10,999.99
Unit price
per
Initiate Order
Texwrap Spartan Series 2215 Automatic L-Sealer
$10,999.99
Quantity: 1
Claim Your Seller Account
Texwrap Spartan Series 2215 Automatic L-Sealer
$10,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Texwrap Spartan Series 2215 Automatic L-Sealer is designed to meet diverse production requirements, offering a space-saving design and ease of operation. Made in the USA, this L-sealer competes with import models while maintaining exceptional quality. With features like Texwrap®'s exclusive Motion Trim™ technology, laser-cut heavy steel-frame construction, and a variety of adjustable settings, this machine ensures efficient packaging processes at speeds up to 30 packages per minute. The compact size allows operation in limited spaces, while compliance with industry-specific standards makes it a reliable choice for various applications.
Product Specifications
Features And Benefits Features And Benefits
Space Saving DesignLight to medium duty applicationsSimple to operateMade in U.S.A.Laser-cut, heavy steel-frame construction with durable powder-coat finishMaximum film/belt speed 80 FPM for faster throughput115 volt AC power allows the wrapper to be used with a standard wall outletNew eye-level, easy-reach film scrap winder with film break alarmCompact size allows operation in crowded production areasCompact size allows the machine to be rolled through a 36" man doorTexwrap®'s exclusive Motion Trim control allows higher production speeds"Constant run" capability allows the infeed conveyor to run continuously for faster product feedingMushroom seal with one-piece knife for clean cuts, even in the cornerHand wheel on inverter for easy package height adjustmentTool-adjustable seal heightHMI panel with simple menus for easy operationIndividual solid-state temperature controls for side and cross sealVariable-speed, VFD inverter-duty AC motorsIndependent front and rear bag length settingsComplete guarding package with safety interlocksMicroperf pin perforator for precise air evacuationFilm clamps with safety switchesLeveling legs with casters
Note Note
Specifications on all machines subject to change without notice. Some information may have been updated since the time of publication.
Specifications Adjustable Conveyor Height
33 to 35 in
Specifications Air Requirements At 80 Pound Per Square Inch Psi
3 ft³/min
Specifications Alternating Current Ac Current Tunnel
35 A
Specifications Alternating Current Ac Voltage Tunnel
240 V
Specifications Chamber Length
36 in
Specifications Conveyor Speed
20 to 80 ft/min
Specifications Conveyor Width
15.5 in
Specifications Conveyor Width Tunnel
15 in
Specifications Cross Seal Width
18.5 in
Specifications Current
15 A
Specifications Electrical Outlet
Grounded
Specifications Heater Power
6000 W
Specifications Heater Type
Calrod

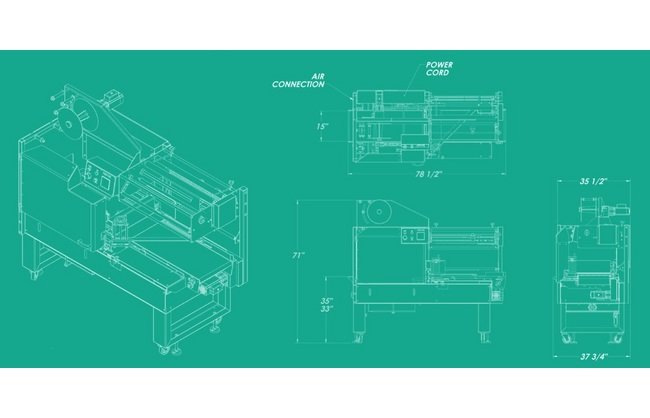

Specifications Height
60 in
Specifications Length
78.625 in
Specifications Maximum Folded Film Width
28 in
Specifications Maximum Package Height
5 in
Specifications Maximum Package Length
19 in
Specifications Maximum Package Width
15.5 in
Specifications Maximum Production Speed
0 to 30 packages/min
Specifications Minimum Package Length
4 in
Specifications Minimum Package Width
2 in
Specifications Opening Height
8 in
Specifications Opening Width
18 in
Specifications Phase Tunnel
1
Specifications Seal Type
L
Specifications Voltage
115 V
Specifications Width
37.625 in
T818 Tunnel Features T818 Tunnel Features
Laser-cut, heavy steel-frame construction with durable powder-coat finishMaximum film/belt speed 90 FPM for faster throughput240 volt single phase power allows the wrapper to be used in most production facilitiesCompact size allows operation in crowded production areas with easy portabilityAC variable speed conveyor driveMaster air volume controlAdjustable top and bottom air flow controlDigital temperature controlStainless wire mesh belt standardLeveling legs with casters
