Tharo H-Plus Series 203 dpi Industrial Barcode Label Printer
Tharo H-Plus Series 203 dpi Industrial Barcode Label Printer
SKU:HPL-4f9ea9
Get precision barcode printing with the Tharo H-Plus Series 203 dpi Industrial Printer. Perfect for industrial applications.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Tharo H-Plus Series 203 dpi Industrial Barcode Label Printer
$1,499.99
Quantity: 1
Claim Your Seller Account
Tharo H-Plus Series 203 dpi Industrial Barcode Label Printer
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

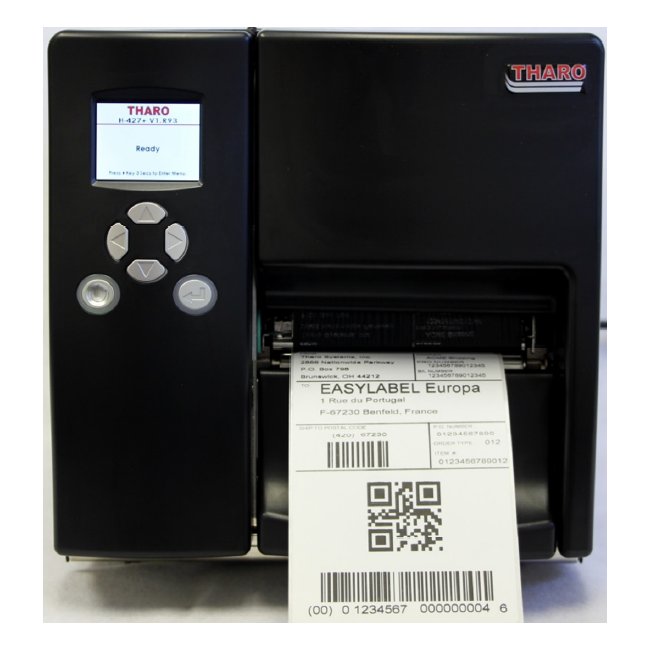

The Tharo H-Plus Series 203 dpi Industrial Barcode Label Printer is a reliable printing solution suitable for both consumer and institutional needs. With a print resolution of 203 DPI, this printer offers precise and clear barcode labeling essential for various applications. Equipped with a 32-bit RISC CPU, 8 MB flash memory, and 16 MB SDRAM memory, it ensures efficient performance. This printer supports multiple interfaces including Ethernet, serial, and USB ports, making it versatile for different connectivity requirements. Its robust construction and compatibility with various media types make it ideal for industrial settings.
Product Specifications
Features Features
Color LCD and button panel for easy configurationMultiple interface ports standard USB host port for standaloneAffordable high speed printing at up to 7 IPS
Media Maximum Cutter Media Width
4.61 in | 117 mm
Media Maximum Dispenserrewind Media Width
4.64 in | 118 mm
Media Maximum Media Thickness
0.01 in | 0.25 mm
Media Maximum Standard Media Width
4.64 in | 118 mm
Media Media Core Diameter
1.5 in | 38.1 mm
Media Media Label Roll Outer Diameter
8 in | 203.2 mm
Media Media Types
Continuous form, gap labels, black mark sensing and punched hole. Label length set by auto-sensing or programming.
Media Minimum Media Thickness
0.003 in | 0.06 mm
Media Minimum Standard Media Width
1 in | 25.4 mm
Options Options
Bluetooth | Cutter | External label rewinder | Label dispenser + Internal rewinder | Parallel port adapter (Centronics female 36-pin)

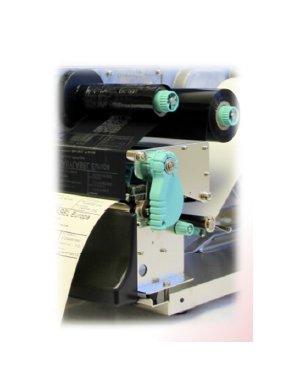

Ribbon Maximum Ribbon Length
1,476 ft | 450 m
Ribbon Maximum Ribbon Width
4.33 in | 110 mm
Ribbon Minimum Ribbon Width
1.18 in | 30 mm
Ribbon Ribbon Inner Core Diameter
1 in | 25.4 mm
Ribbon Ribbon Types
Resin | Wax | Wax/Resin
Technical Specs 1 D Barcodes
Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC,
Technical Specs 2 D Barcodes
PDF417, Micro PDF417, Datamatrix, Maxicode, QR code, Micro QR code and Aztec code
Technical Specs Agency Certifications
Canadian Underwriters Laboratories (cUL ) | Certificate of Completion and Compliance (CCC) | Certification Body (CB) | European Conformity (CE) (Electromagnetic Compatibility (EMC)) | Federal Communications Commission (FCC) Class A | Underwriter Laboratories (UL)
Technical Specs Auto Switching Power Alternating Current Ac Volt
100 to 240 V
Technical Specs Code Pages
Codepages 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737, Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257, Unicode UTF8, UT16BE, UTF16LE
Technical Specs Control Panel

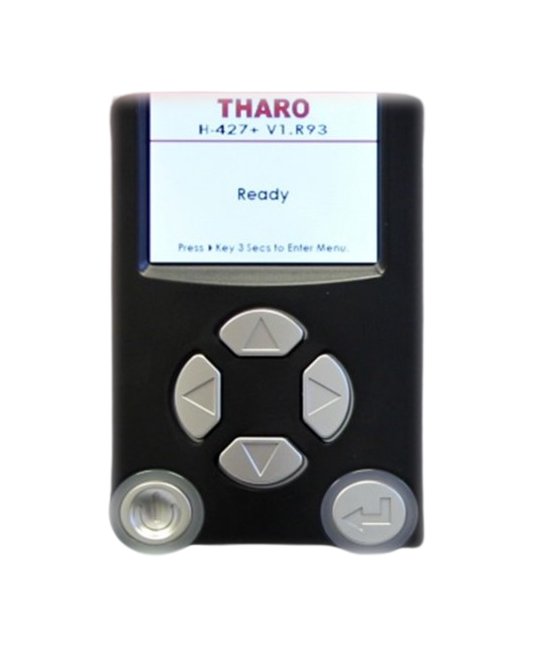

Color TFT LCD with navigation buttonsControl key : FEED/PAUSE/CANCEL1 Calibration button at rear panelPower on/off button with dual color LED: READY/ERROR
Technical Specs Downloadable Asian Fonts
16x16, 24x24, Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001), 90º, 180º, 270º rotatable, 8 times expandable
Technical Specs Downloadable Bitmap Fonts
Bitmap fonts and single characters 90º, 180º, 270º rotatable
Technical Specs Downloadable True Type Fonts
90º, 180º, 270º rotatable
Technical Specs Environment Operating Temperature
41 to 205 ºC | 5 to 40 ºF
Technical Specs Environment Storage Temperature
-4 to 122 ºC | -20 to 50 ºF
Technical Specs Flash Memory
8 MB
Technical Specs Frequency
50 to 60 Hz
Technical Specs Height
11.45 in | 291 mm
Technical Specs Interfaces

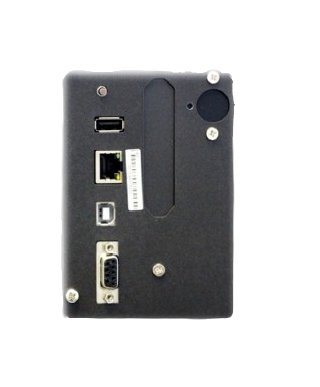

IEEE 802.3 10/100 Base Tx Ethernet Port (RJ-45) | Serial Port RS-232 (DB-9) | Universal Serial Bus (USB) 2.0 (B-Type) | Universal Serial Bus (USB) Host (A Type)
Technical Specs Length
20.15 in | 512 mm
Technical Specs Maximum Print Length
100 in | 2540 mm
Technical Specs Minimum Print Length
0.16 in | 4 mm
Technical Specs Non Condensing Operating Humidity
30 to 85 %
Technical Specs Non Condensing Storage Humidity
10 to 90 %
Technical Specs Print Method
Direct Thermal | Thermal Transfer
Technical Specs Print Resolution
203 dpi | 8 dpmm
Technical Specs Print Width
4.09 in | 104 mm
Technical Specs Width
10.78 in | 274 mm
