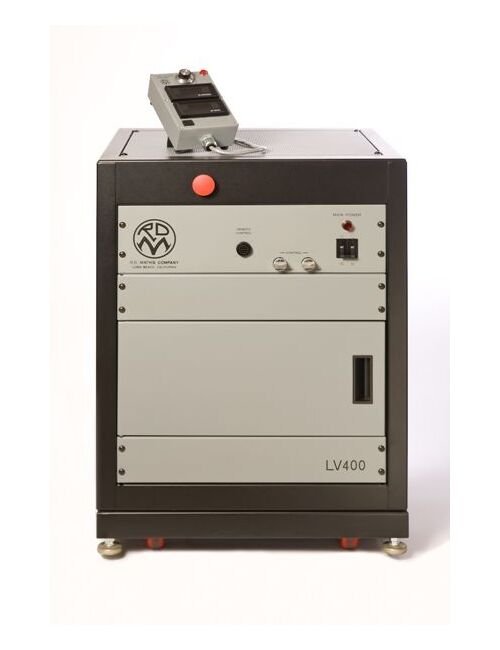

Thermal Evaporation LV Series AC Power Supply - High Current, Low Voltage
Thermal Evaporation LV Series AC Power Supply - High Current, Low Voltage
SKU:LVS-8e400f
Reliable and versatile LV Series AC Power Supply for thermal evaporation in the thin film industry.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
Thermal Evaporation LV Series AC Power Supply - High Current, Low Voltage
$7,499.99
Quantity: 1
Claim Your Seller Account
Thermal Evaporation LV Series AC Power Supply - High Current, Low Voltage
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Thermal Evaporation LV Series AC Power Supply is expertly designed for the thin film industry's thermal evaporation needs. Featuring low voltage, high current capabilities, this power supply ensures reliable and versatile performance. With a hand-held remote control for easy monitoring, a tap switch for seamless voltage adjustments, and premium construction for durability, this unit meets the demands of the industry with precision.
Product Specifications
Accessories 0
250 Ampere (A) (4/0 American Wire Gauge (AWG) Welding Cable (approximately 0.83 Inch (in) Outer Diameter) with terminal Lugs (1/2 Inch (in) Bolt Hole)500 Ampere (A) (500 kcmil) Welding Cable (approximately 1.25 Inch (in) Outer Diameter) with terminal Lugs (5/8 Inch (in) Bolt Hole)
Features 0
Low ProfileSCR Controlled Transformer100% Duty CycleHand Held Cable Remote Control with manual voltage potentiometer and Digital meters5, 10, 15 and 40 Volt (V) Tap switchSilver Plated Switch and Output terminalsDigital meter, secondary voltage and currentSoft Start on power upCurrent Limiting 4 to 20, 0 to 5, 10 to 50 Milli Ampere 9mA) and 0 to 10 Volt (V) control signal input capabilitiesEmergency Off button and Interlock protection on access panel and door
Manufacturing Notes 0
Specify Cable length in feet and lug sizes when ordering.
Specifications Ac Input Voltage
208 V | 220 V | 240 V
Specifications Depth
30.9 in
Specifications Duty Cycle
100 %
Specifications Height
30.25 in
Specifications Input Current
45 A
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Number Of Phase
1
Specifications Output Terminal Dimensions
1/2 x 3 x 3 Inch (in) with 7/16 Inch (in) diameter hole
Specifications Output Terminal Material
Silver Plated Copper
Specifications Power Output
0 to 10 Volt (V) AC at 750 Ampere (A) | 0 to 20 Volt (V) AC at 375 Ampere (A) | 0 to 40 Volt (V) AC at 188 Ampere (A) | 0 to 5 Volt (V) AC at 1500 Ampere (A)
Specifications Power Rating
7.5 Kilo-Volt-Ampere (KVA) (10 Kilo-Volt-Ampere (KVA) Surge)
Specifications Shipping Weight
700 Pound (lb) (Approximate)
Specifications Switch
Silver Plated 4 Position Blade type with Screw knob Release
Specifications Tap Switch Voltage
5 V | 10 V | 20 V | 40 V
Specifications Weight
616 lb
Specifications Width
24 in
