Thermal Expansion Compensation Section
Thermal Expansion Compensation Section
SKU:CRA-37c691
Essential 10 ft section for copper conductor thermal expansion compensation in systems. Amperage rated at 250 A, with factory-installed power feeds and flexible jumpers.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Thermal Expansion Compensation Section
$129.99
Quantity: 1
Claim Your Seller Account
Thermal Expansion Compensation Section
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

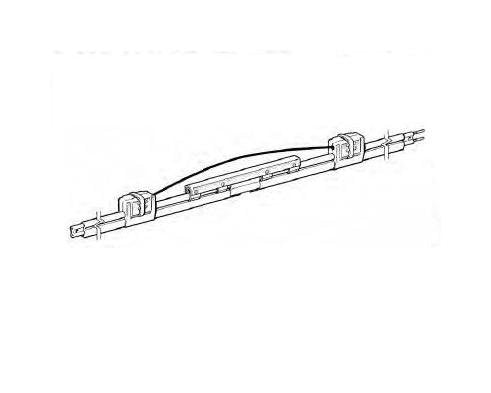

The Thermal Expansion Compensation Section is a crucial component required every 200 feet for copper conductors in conductor bar systems. Constructed with high-quality copper steel laminate, this 10-foot section is designed to handle an amperage rating of 250 A. It features factory-installed power feeds and flexible jumpers to meet both electrical and mechanical system requirements. With a weight of 10.0 lb and a normal ambient temperature range of -10 to 160 °F, this expansion section ensures seamless operation and safety in various industrial settings.
Product Specifications
Specifications Amperage Rating
250 A
Specifications Length
10 ft
Specifications Material
Copper Steel Laminate
Specifications Normal Ambient
-10 to 160 ºF
Specifications Weight
10.0 lb
