Thermal Expansion Conductor Bar Section
Thermal Expansion Conductor Bar Section
SKU:CRA-566c83
Efficiently manage thermal expansion with our durable Aluminum/Stainless Steel Expansion Section - 400A, lightweight, and precise fit.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Thermal Expansion Conductor Bar Section
$289.99
Quantity: 1
Claim Your Seller Account
Thermal Expansion Conductor Bar Section
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

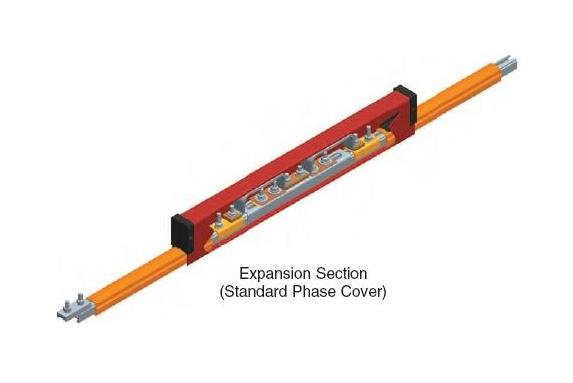

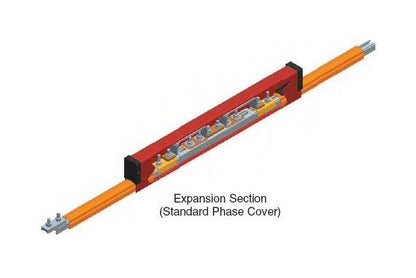

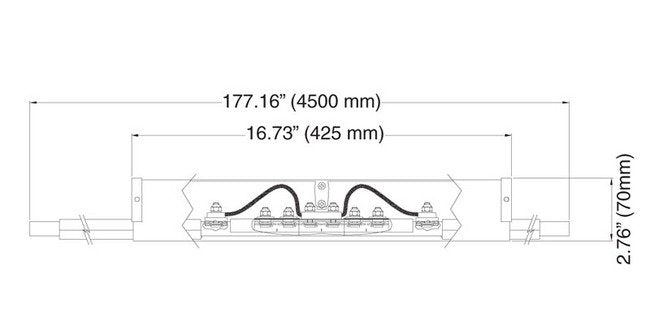

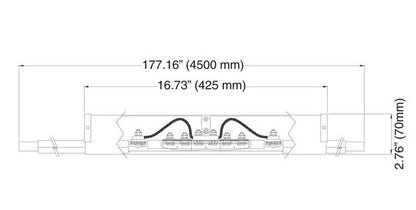

The Thermal Expansion Conductor Bar Section with Splice Installed is a critical component designed for structural expansion joints and systems exceeding 492 ft. (150m). This aluminum/stainless steel bar features a maximum 2.0" (50 mm) gap, an impressive 400A amperage rating, and a lightweight design of 8.6 lb (3.9 kg). Replace one length of conductor bar with the 14' 9" (4.5 m) Expansion Section to accommodate thermal changes efficiently, ensuring seamless operation and longevity for your electrification system.
Product Specifications
Specifications Amperage Rating
400 A
Specifications Cover Type
Standard Phase Cover (Orange)
Specifications Material
Aluminum / Stainless Steel
Specifications Weight
8.6 lb | 3.9 kg
