Thermax2 Compact Heat Exchanger
Thermax2 Compact Heat Exchanger
SKU:HEA-cfbfd7
Enhanced efficiency & reliability - Thermax2 Heat Exchanger for industrial heating & cooling. Ideal for various applications.
Regular price
$999.99
Regular price
Sale price
$999.99
Unit price
per
Initiate Order
Thermax2 Compact Heat Exchanger
$999.99
Quantity: 1
Claim Your Seller Account
Thermax2 Compact Heat Exchanger
$999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Thermax2 Compact Heat Exchanger is a versatile solution for industrial and institutional heating and cooling needs. Its patented fabrication process ensures high-quality production without gaskets that could fail. With a temperature range from -60°F to 480°F, and pressure ratings of up to 360 PSI, this heat exchanger offers enhanced reliability and efficiency. Its compact modular design allows for easy installation and servicing, making it ideal for various applications such as semiconductor wafer cleaning and industrial processes. With a range of sizes available, from 1.1 ft2 to 15 ft2, this heat exchanger provides high thermal transfer rates in a space-saving package.
Product Specifications
Features And Benefits Features And Benefits

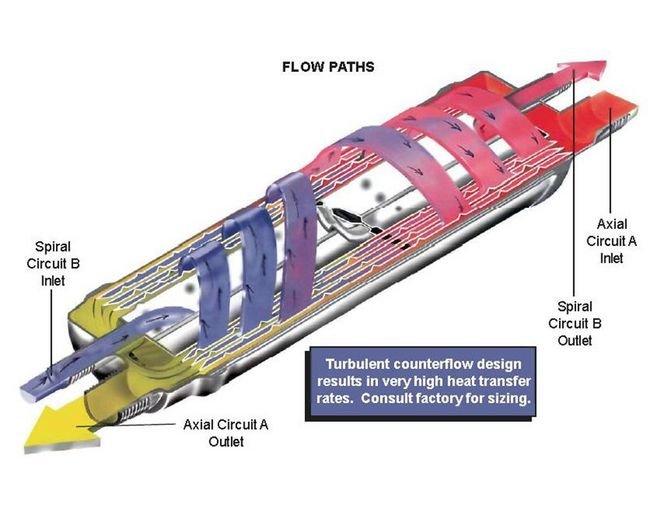

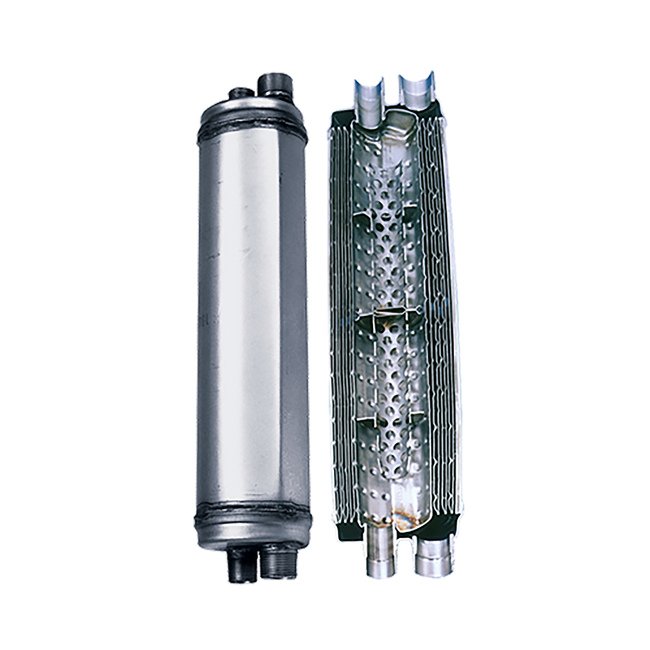

MORE COMPACT AND LOWER PRICE THAN TUBULAR HEAT EXCHANGERS:1/3 the size of an equivalent tubular heat exchanger at a lower price point. Enhanced turbulence, lower pressure drops, and wetted surface area 5 to 6 times that of equivalent tubular designs enable heat transfer rates 3 to 4 times that of equivalently-sized tubular heat exchangers.IMPROVED RELIABILITY DUE TO ALL WELDED CONSTRUCTION: No gaskets to fail.LOW INTERNAL VOLUME: Maximum single circuit capacity 76 fluid ounces (2.2 liters).COMPACT MODULAR DESIGN: Offers easy installation and servicing. Manifolding is simplified for larger applications.IMPROVED EFFICIENCY:Heat loss is low, requiring little or no insulation.INNOVATIVE DESIGN: Cylindrical dimpled plate design wound into a self-enclosed spiral provides extremely high thermal transfer for package size. Patented fabrication.TEMPERATURE RANGE: -60°F (-50&#.176;C) to 480°F (250°C)PRESSURE RATING:Axial (Circuit A): 230 PSI (1586 kPa or 16 bar)Spiral (Circuit B): 360 PSI (2482 kPa or 25 bar)CHEMICAL COMPATIBILITY: Chemistries compatible with 316L (Circuit A&B) and silicon baffles (B circuit only).APPLICATIONS: Industrial, process system, cogeneration, solar, anodizing, plating, electronics, commercial & industrial washers, evaporators/condensers, chillers, heat recovery, boilers (steam and water), vapor recovery, and water heaters.SIZES: Seven sizes from 1.1 ft2 (.10 m2) to 15 ft2 (1.4 m2). Compact cylinders from 3â (70mm) x 6â (158mm) to 5â (120mm) x 20â (515mm).
Specifications Circuit A Connections Mnpt
1 "
Specifications Circuit B Connections Mnpt
3/4 "

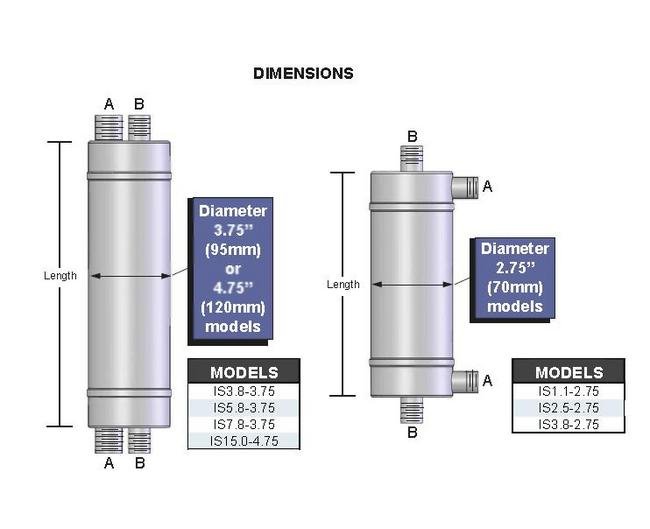

Specifications Diameter
3.75 " | 95 mm
Specifications Exchange Area
5.8 ft² | 0.54 m²
Specifications Manufacturer
Process Technology
Specifications Overall Length
15.50 " | 394 mm
Specifications Pressure Rating Axial Circuit A
230 psi | 1586 kPa | 16 bar
Specifications Pressure Rating Spiral Circuit B
360 psi | 2482 kPa | 25 bar
Specifications Shipping Weight
20.0 Pound
Specifications Temperature Range
-60 to 480 ºF | -50 to 250 ºC
Specifications Weight
20.0 lbs | 9.1 kg
