Thermax2 Heat Exchangers

Thermax2 Heat Exchangers

HEA-0528b4

Enhanced efficiency with patented design for industrial applications.

$699.99
$699.99
Sale

Initiate Order

Thermax2 Heat Exchangers

Thermax2 Heat Exchangers

$699.99

Quantity: 1

Claim Your Seller Account

Thermax2 Heat Exchangers

Thermax2 Heat Exchangers

$699.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

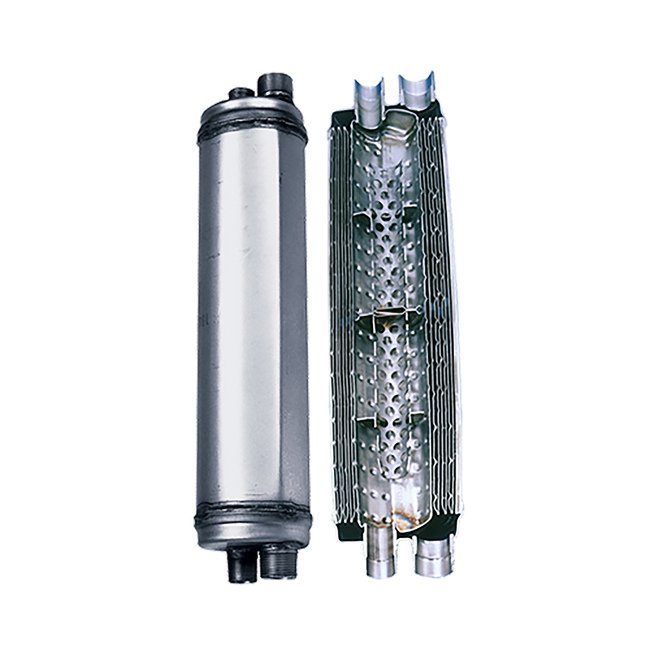

The Thermax2 Heat Exchangers are a superior choice for industrial applications, boasting a compact modular design with a patented fabrication process ensuring top-notch quality. With no gaskets to fail, TIG welding separates Circuit A from Circuit B, enhancing reliability. This innovative design offers improved efficiency, low heat loss, and easy installation. With a wide temperature range from -60°F to 480°F, pressure ratings of up to 360 psi, and chemical compatibility with 316L, these heat exchangers are ideal for industrial, process system, solar, plating, and evaporator applications.

Product Specifications

Features And Benefits Features And Benefits

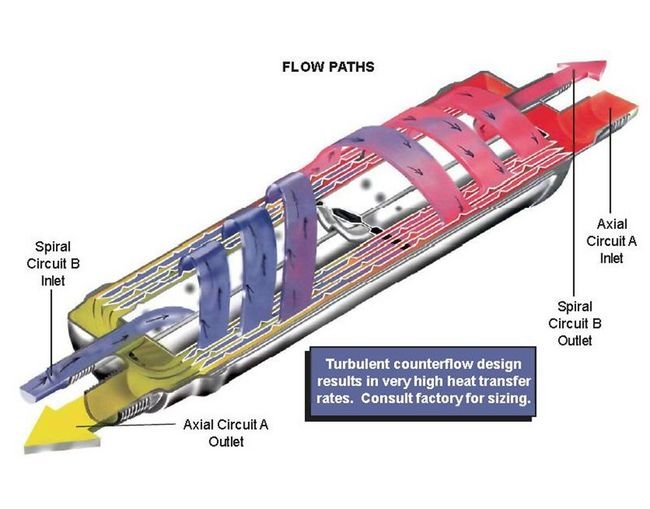

MORE COMPACT AND LOWER PRICE THAN TUBULAR HEAT EXCHANGERS:1/3 the size of an equivalent tubular heat exchanger at a lower price point. Enhanced turbulence, lower pressure drops, and wetted surface area 5 to 6 times that of equivalent tubular designs enable heat transfer rates 3 to 4 times that of equivalently-sized tubular heat exchangers.IMPROVED RELIABILITY DUE TO ALL WELDED CONSTRUCTION: No gaskets to fail.LOW INTERNAL VOLUME: Maximum single circuit capacity 76 fluid ounces (2.2 liters).COMPACT MODULAR DESIGN: Offers easy installation and servicing. Manifolding is simplified for larger applications.IMPROVED EFFICIENCY:Heat loss is low, requiring little or no insulation.INNOVATIVE DESIGN: Cylindrical dimpled plate design wound into a self-enclosed spiral provides extremely high thermal transfer for package size. Patented fabrication.TEMPERATURE RANGE: -60°F (-50&#.176;C) to 480°F (250°C)PRESSURE RATING:Axial (Circuit A): 230 PSI (1586 kPa or 16 bar)Spiral (Circuit B): 360 PSI (2482 kPa or 25 bar)CHEMICAL COMPATIBILITY: Chemistries compatible with 316L (Circuit A&B) and silicon baffles (B circuit only).APPLICATIONS: Industrial, process system, cogeneration, solar, anodizing, plating, electronics, commercial & industrial washers, evaporators/condensers, chillers, heat recovery, boilers (steam and water), vapor recovery, and water heaters.SIZES: Seven sizes from 1.1 ft2 (.10 m2) to 15 ft2 (1.4 m2). Compact cylinders from 3” (70mm) x 6” (158mm) to 5” (120mm) x 20” (515mm).
Specifications Circuit A Connections Mnpt
3/4 "
Specifications Circuit B Connections Mnpt
1/2 "

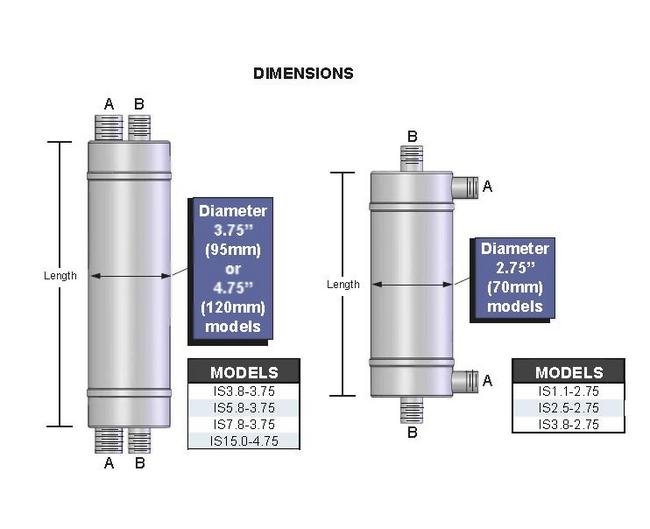

Specifications Diameter
2.75 " | 70 mm
Specifications Exchange Area
2.5 ft² | 0.23 m²
Specifications Manufacturer
Process Technology
Specifications Overall Length
10.25 " | 260 mm
Specifications Pressure Rating Axial Circuit A
230 psi | 1586 kPa | 16 bar
Specifications Pressure Rating Spiral Circuit B
360 psi | 2482 kPa | 25 bar
Specifications Shipping Weight
7.0 Pound
Specifications Temperature Range
-60 to 480 ºF | -50 to 250 ºC
Specifications Weight
7.0 lbs | 3.2 kg
