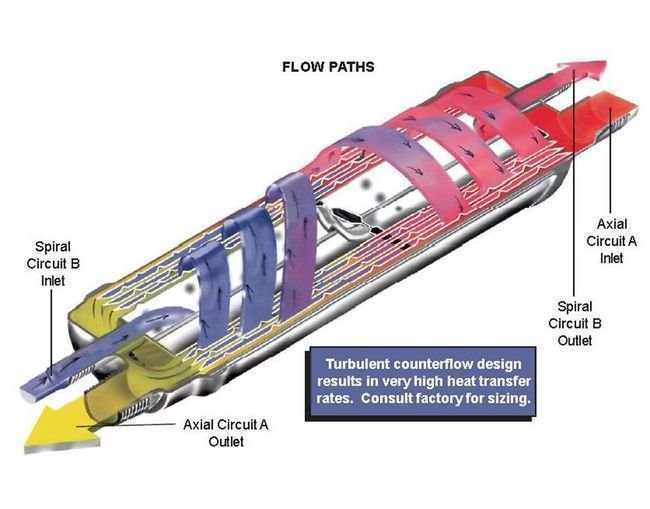

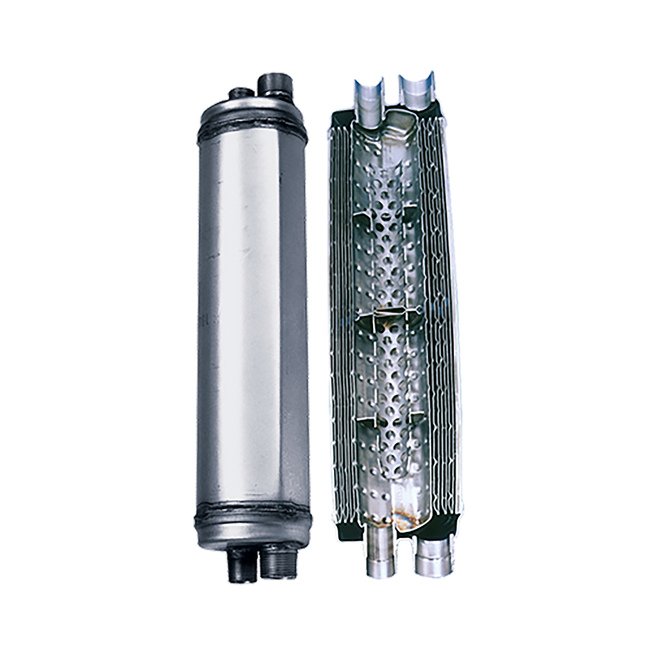

The Thermax2 Heat Exchangers offer exceptional efficiency and reliability for industrial and institutional applications. With a cylindrical dimpled plate design wound into a self-enclosed spiral, these heat exchangers provide high thermal transfer rates. They are 1/3 the size of equivalent tubular heat exchangers, ensuring lower pressure drops and enhanced turbulence. Featuring all welded construction, there are no gaskets to fail, ensuring improved reliability. These heat exchangers have low heat loss, requiring minimal insulation, and come with a temperature range of -60°F to 480°F. Available in seven sizes from 1.1 ft2 to 15 ft2, they are suitable for various applications including cogeneration, plating, chillers, and heat recovery systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features And Benefits Features And Benefits
MORE COMPACT AND LOWER PRICE THAN TUBULAR HEAT EXCHANGERS:1/3 the size of an equivalent tubular heat exchanger at a lower price point. Enhanced turbulence, lower pressure drops, and wetted surface area 5 to 6 times that of equivalent tubular designs enable heat transfer rates 3 to 4 times that of equivalently-sized tubular heat exchangers.IMPROVED RELIABILITY DUE TO ALL WELDED CONSTRUCTION: No gaskets to fail.LOW INTERNAL VOLUME: Maximum single circuit capacity 76 fluid ounces (2.2 liters).COMPACT MODULAR DESIGN: Offers easy installation and servicing. Manifolding is simplified for larger applications.IMPROVED EFFICIENCY:Heat loss is low, requiring little or no insulation.INNOVATIVE DESIGN: Cylindrical dimpled plate design wound into a self-enclosed spiral provides extremely high thermal transfer for package size. Patented fabrication.TEMPERATURE RANGE: -60°F (-50&#.176;C) to 480°F (250°C)PRESSURE RATING:Axial (Circuit A): 230 PSI (1586 kPa or 16 bar)Spiral (Circuit B): 360 PSI (2482 kPa or 25 bar)CHEMICAL COMPATIBILITY: Chemistries compatible with 316L (Circuit A&B) and silicon baffles (B circuit only).APPLICATIONS: Industrial, process system, cogeneration, solar, anodizing, plating, electronics, commercial & industrial washers, evaporators/condensers, chillers, heat recovery, boilers (steam and water), vapor recovery, and water heaters.SIZES: Seven sizes from 1.1 ft2 (.10 m2) to 15 ft2 (1.4 m2). Compact cylinders from 3â (70mm) x 6â (158mm) to 5â (120mm) x 20â (515mm).
Specifications Circuit A Connections Mnpt
1 "
Specifications Circuit B Connections Mnpt
3/4 "

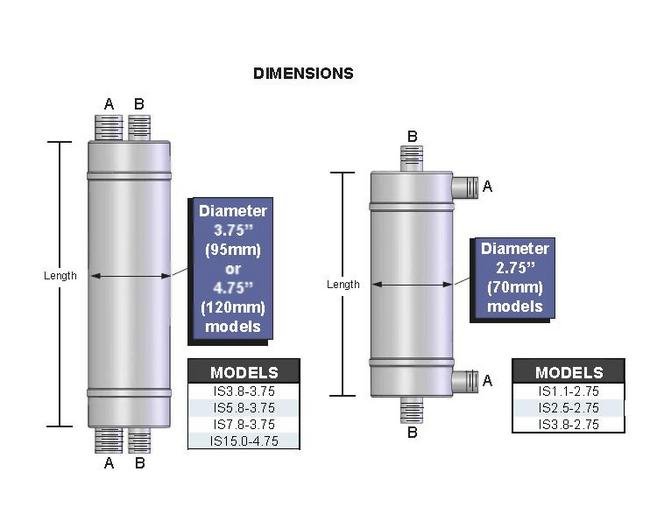

Specifications Diameter
3.75 " | 95 mm
Specifications Exchange Area
7.8 ft² | 0.72 m²
Specifications Manufacturer
Process Technology
Specifications Overall Length
20.25 " | 515 mm
Specifications Pressure Rating Axial Circuit A
230 psi | 1586 kPa | 16 bar
Specifications Pressure Rating Spiral Circuit B
360 psi | 2482 kPa | 25 bar
Specifications Shipping Weight
24.0 Pound
Specifications Temperature Range
-60 to 480 ºF | -50 to 250 ºC
Specifications Weight
24.0 lbs | 10.9 kg
