Thermo Scientific APEX 100 Metal Detector
Thermo Scientific APEX 100 Metal Detector
SKU:MAC-ec931c
Reliable metal detection for conveyor applications with high sensitivity and multi-coil design.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Thermo Scientific APEX 100 Metal Detector
$5,899.99
Quantity: 1
Claim Your Seller Account
Thermo Scientific APEX 100 Metal Detector
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

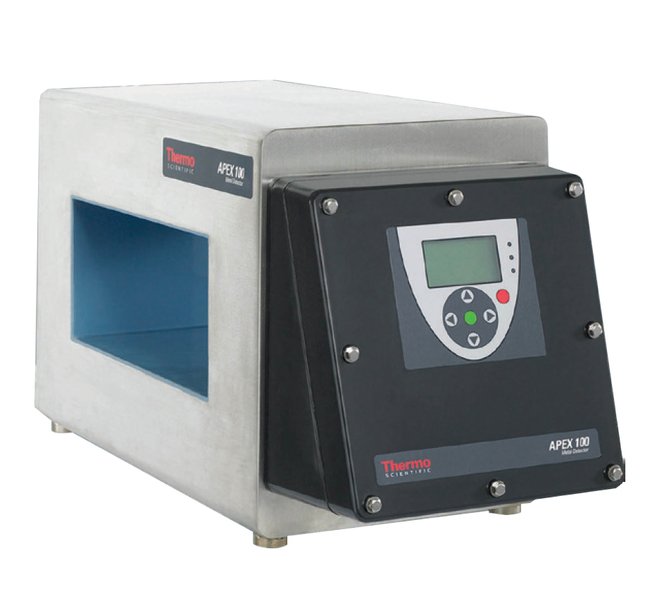

The Thermo Scientific APEX 100 Metal Detector offers economical and reliable metal detection for conveyor applications. Built with stainless steel and ABS materials, it features a multi-coil design for high sensitivity and low false rejects. With advanced signal processing software, dual frequency/gain operation, and IP69K washdown rating, this detector ensures food safety compliance and production efficiency. Ideal for quality control in food processing, it meets ISO 9001, ATEX, CE, and FDA standards.
Product Specifications
Application And Metal Detection Specifications Aperture Height
50 to 6000 mm
Application And Metal Detection Specifications Aperture Width
50 to 1750 mm
Application And Metal Detection Specifications Communications Op
Ethernet Modules | ModBus Serial
Application And Metal Detection Specifications Construction
Stainless steel 304 straight-lined case and ABS plastic front panel
Application And Metal Detection Specifications Foot Pattern And
Varies by Aperture Size and Orientation
Application And Metal Detection Specifications Frequency
50 to 460 kHz
Application And Metal Detection Specifications Help Text Languag
Brazilian Portuguese | Chinese | Czech | English | French | German | Italian | Korean | Polish | Russian | Spanish | Thai
Application And Metal Detection Specifications Human Machine Int
Backlit Display and Touch Panel with Icons/Help Text
Application And Metal Detection Specifications Input Allocation
External Alarm | External Reset | External Suppression | Infeed PEC | Keylock | Product Select 1 | Product Select 2 | Reject Confirmation 1 and Bin Full | Speed Sensor
Application And Metal Detection Specifications Input Types
6 Inputs - Active 12VDC and auxiliary supply for input sensors, NPN sinking
Application And Metal Detection Specifications Output Allocation
Alarm | Fault | QA Lamp | Reject 1 | Reject 2 | Warning
Application And Metal Detection Specifications Product Speed
0.5 to 1000 m/min | 1.7 to 3300 ft/min
Conformance Tests And Certifications Export And Safety
Atmospheres Explosible (ATEX) Zone 22 | cCSAus | European Conformity (CE)
Conformance Tests And Certifications Manufacturing Quality
International Organization for Standardization (ISO 9001) Certified
Conformance Tests And Certifications Protection Ratings
Ingress Protection (IP69K)
Electrical Supply Electrical Alternating Current Ac Supply Volta
85 to 260 V
Electrical Supply Electrical Supply Frequency
47 to 65 Hz
Electrical Supply Electrical Supply Phase
1
Electrical Supply Maximum Electrical Supply Power
100 W
Environment Electrical And Operational Specifications Ambient Te
-10 to 40 ºC | 14 to 104 ºF
Environment Electrical And Operational Specifications Maximum Wa
80 ºC | 176 ºF
Environment Electrical And Operational Specifications Non Conden
20 to 80 %
Environment Electrical And Operational Specifications Product Te
-10 to 55 ºC | 14 to 131 ºF
Features Features
Multi-coil design with high sensitivity and low false rejectsDual frequency/dual gain operation for application flexibilityIntellitrack XR (IXR) advanced signal processing softwareStandard range of aperture sizes to optimize performanceStandard epoxy-lined aperture and stainless-steel caseIP69K washdown rated to minimize the cost of ownershipAll construction materials FDA approvedEasy to install, with all electronics integral to the metal detectorUnique icon-driven interface with multilingual Help and Auto Learn functions
Options Options

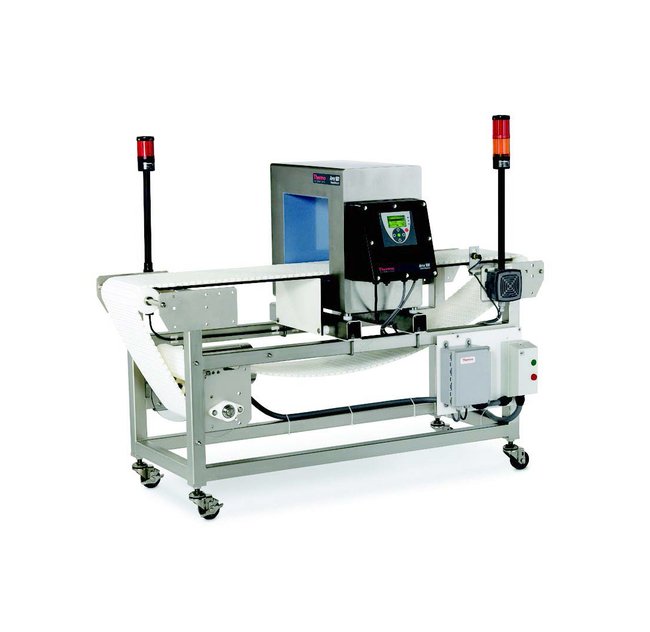

Mounting conversion kits to make installation easyField compression flanges to minimize the metal-free zoneRemote control panelModbus serial and Ethernet communicationsAlarm and fault output packages and reject indicators/reset switchesWashdown isolation transformers to shield the metal detector from power line problemsThermo Scientific⢠conveyor systems designed locally to your specifications
Output Types Alternating Current Ac Output Relay Voltage
250 V
Output Types Direct Current Dc Output Relay Voltage
50 V
Output Types Maximum Output Relay Alternating Current Ac
2 A
Output Types Maximum Output Relay Direct Current Dc
1 A
Output Types Number Of Output Relays
6
Specifications Brand
Apex⢠| Thermo Scientificâ¢
