Thermo Scientific APEX 300 Metal Detector
Thermo Scientific APEX 300 Metal Detector
SKU:MAC-900cf5
Highly sensitive metal detector with advanced features for brand protection and compliance in various applications.
Regular price
$16,999.00
Regular price
Sale price
$16,999.00
Unit price
per
Initiate Order
Thermo Scientific APEX 300 Metal Detector
$16,999.00
Quantity: 1
Claim Your Seller Account
Thermo Scientific APEX 300 Metal Detector
$16,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

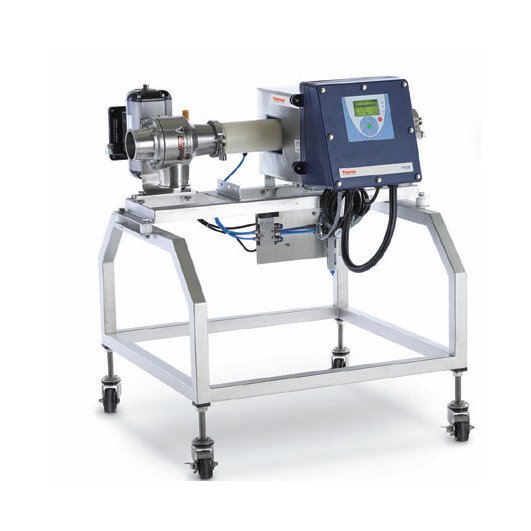

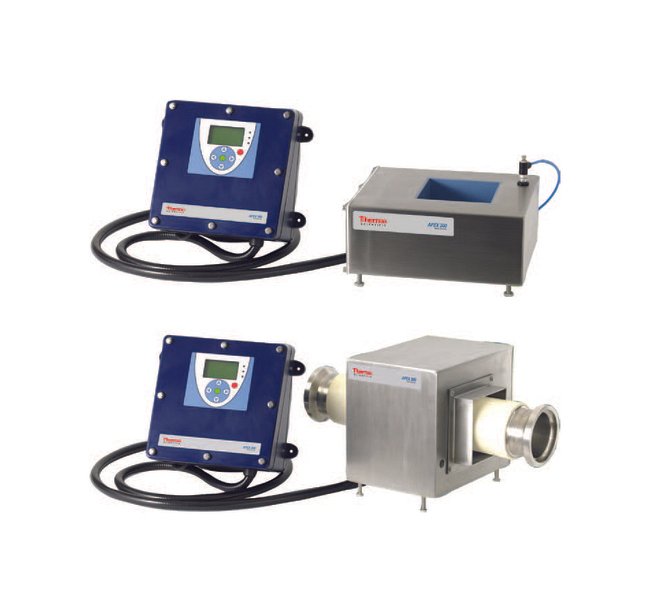

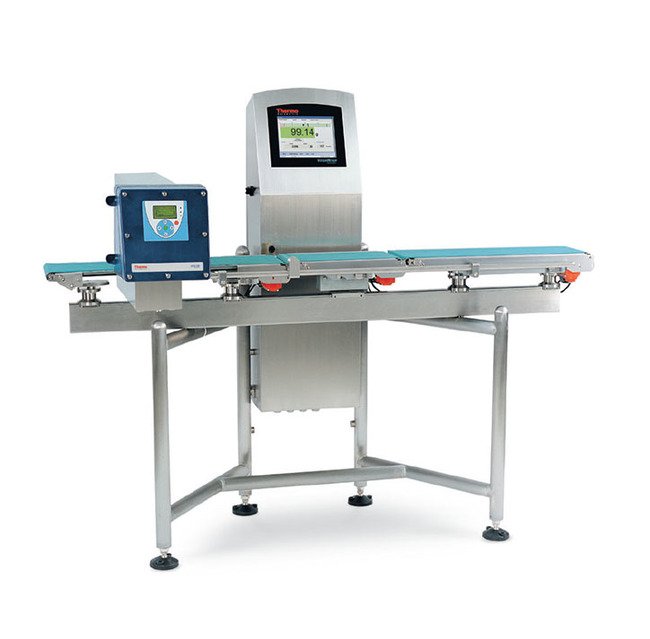

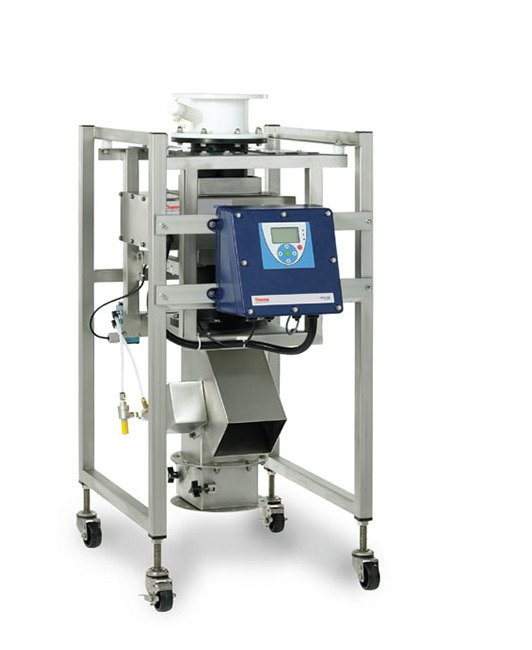

The Thermo Scientific APEX 300 Metal Detector provides flexible metal detection solutions for drop-through, pipeline, and checkweigher combination systems. With high sensitivity and compact design, this metal detector ensures brand protection, compliance with retailer codes, and legal requirements. Featuring a multi-coil design, dual-frequency operation, and advanced signal processing software, it offers high sensitivity while minimizing false rejects. The APEX 300 is FDA approved, IP69K washdown rated, and comes with an AuditCheck™ Performance Verification System for reliable performance.
Product Specifications
Application And Metal Detection Specifications Aperture Height
50 to 400 mm
Application And Metal Detection Specifications Aperture Width
75 to 550 mm
Application And Metal Detection Specifications Communications Op
Ethernet Modules | ModBus Serial
Application And Metal Detection Specifications Construction
Stainless steel 304 straight-lined case and ABS plastic front panel
Application And Metal Detection Specifications Foot Pattern And
Varies by Aperture Size and Orientation
Application And Metal Detection Specifications Frequency
50 to 460 kHz
Application And Metal Detection Specifications Help Text Languag
Brazilian Portuguese | Chinese | Czech | English | French | German | Italian | Korean | Polish | Russian | Spanish | Thai
Application And Metal Detection Specifications Human Machine Int
Backlit Display and Touch Panel with Icons/Help Text
Application And Metal Detection Specifications Input Allocation
External Alarm | External Reset | External Suppression | Infeed Photo Eye (PE) | Keylock | Product Select 1 | Product Select 2 | Reject Confirmation 1 and Bin Full | Speed Sensor
Application And Metal Detection Specifications Input Types
6 Inputs - Active low with auxiliary supply for input sensors , NPN sinking
Application And Metal Detection Specifications Output Allocation
Alarm | AuditCheck⢠| Fault | QA Lamp | Reject 1 | Reject 2 | Warning
Application And Metal Detection Specifications Product Speed
0.5 to 1000 m/min | 1.7 to 3300 ft/min
Auditcheck Performance Verification System Auditcheck Performanc

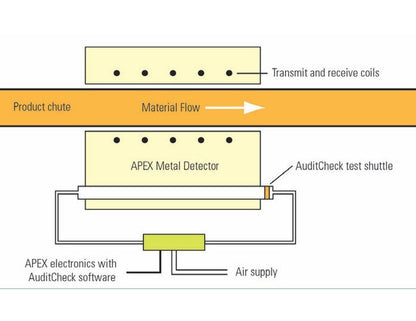

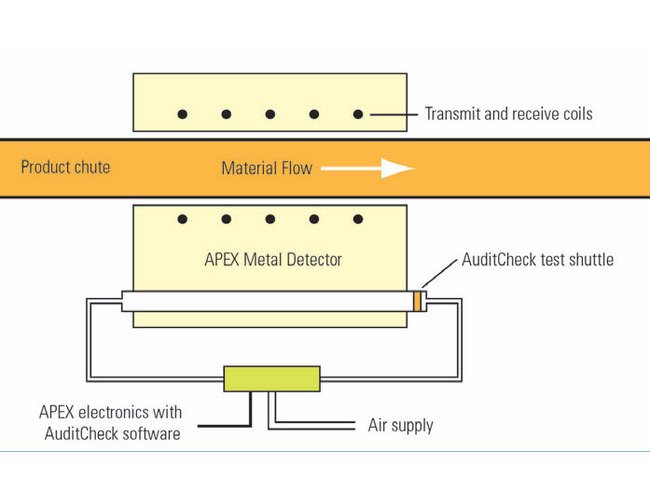

In bulk applications where material is moving rapidly, it's difficult to periodically test a metal detector by inserting test pieces in the product flow. This is where the AuditCheck⢠option comes in. AuditCheck⢠automatically passes an air-driven test shuttle through the metal detector and compares both the magnetic and conductive signals to calibrated levels. This operation goes far beyond a simple go/no-go test. Because signal levels are measured and compared to acceptable levels, problems can be identified before they happen. Since the AuditCheck⢠is integral to the Apex⢠software, it is failsafe and a complete record of all tests is available for full traceability.
Conformance Tests And Certifications Export And Safety
Atmospheres Explosible (ATEX) Zone 22 | cCSAus | European Conformity (CE)
Conformance Tests And Certifications Manufacturing Quality
International Organization for Standardization (ISO 9001) Certified
Conformance Tests And Certifications Protection Ratings
Ingress Protection (IP69K)
Electrical Supply Electrical Alternating Current Ac Supply Volta
85 to 260 V
Electrical Supply Electrical Supply Frequency
47 to 65 Hz
Electrical Supply Electrical Supply Phase
1
Electrical Supply Maximum Electrical Supply Power
100 W
Environment Electrical And Operational Specifications Ambient Te
-10 to 40 ºC | 14 to 104 ºF
Environment Electrical And Operational Specifications Maximum Wa
80 ºC | 176 ºF
Environment Electrical And Operational Specifications Non Conden
20 to 80 %
Environment Electrical And Operational Specifications Product Te
-10 to 55 ºC | 14 to 131 ºF
Features Features
Multi-coil design with high sensitivity and low false rejectsTwo head widths: narrow to save space and wide for highest sensitivityDual-frequency/dual-gain operation for application flexibilityIntellitrack XR (IXR) advanced signal processing softwareAvailable in a wide range of aperture sizes to optimize performanceStandard epoxy-lined aperture and stainless steel caseIP69K washdown rated to minimize the cost of ownershipAll construction materials FDA approvedStandard remote control panel operationEasy to install with all electronics integral to the metal detector or control panelUnique icon-driven interface with multilingual Help and Auto Learn functions
Options Options
Automatic performance verification with AuditCheckâ¢Mounting conversion kits to make installation easyField compression flanges to minimize the metal-free zoneModbus serial and Ethernet communicationsAlarm and fault output packages and reject indicators/reset switchesWashdown isolation transformers to shield the metal detector from power line problemsPivot locking frame for easy use and cleaning in gravity systemsComplete drop though (Thermo Scientific⢠APEX 300D) and pipeline (Thermo Scientific⢠APEX 300P) systems
Output Types Alternating Current Ac Output Relay Voltage
250 V
Output Types Direct Current Dc Output Relay Voltage
50 V
Output Types Maximum Output Relay Alternating Current Ac
2 A
Output Types Maximum Output Relay Direct Current Dc
1 A
Output Types Number Of Output Relays
6
Specifications Brand
Apex⢠| Thermo Scientific
