Thermo Scientific APEX 500 RX Metal Detector
Thermo Scientific APEX 500 RX Metal Detector
SKU:MAC-af0ce6
Enhanced metal detector for pharmaceutical quality control, ensuring compliance and brand protection.
Regular price
$12,500.00
Regular price
Sale price
$12,500.00
Unit price
per
Initiate Order
Thermo Scientific APEX 500 RX Metal Detector
$12,500.00
Quantity: 1
Claim Your Seller Account
Thermo Scientific APEX 500 RX Metal Detector
$12,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

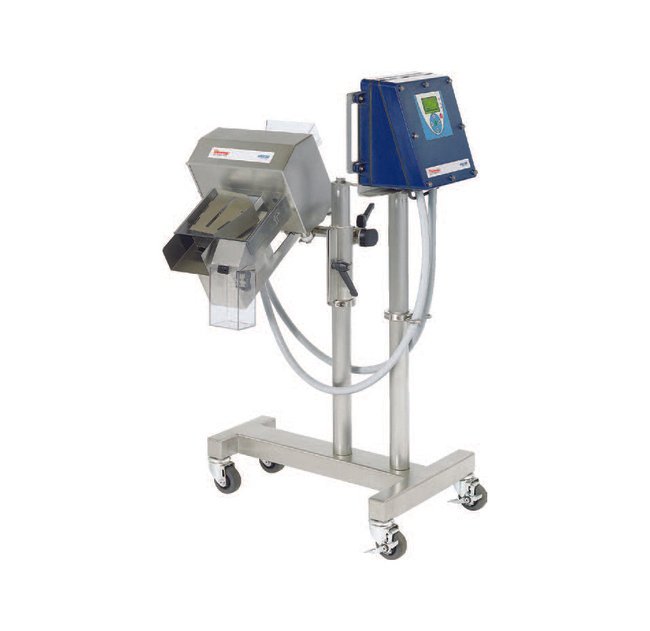

The Thermo Scientific APEX 500 RX Metal Detector is a high-performance solution designed specifically for pharmaceutical applications. With a multi-coil high sensitivity design, it can detect metal pieces as small as 0.3 mm, enhancing brand protection and compliance with stringent industry standards. Featuring a graphical user interface and Thermo Scientific Quality Assurance Test and AuditCheck capabilities, this metal detector ensures product integrity, improves productivity, and assists in meeting GMP requirements. Available in various configurations and equipped with advanced features like AuditCheck verification and innovative rejecter assembly, the APEX 500 RX is a cost-effective, reliable, and user-friendly solution for pharmaceutical quality control.
Product Specifications
Additional Information Additional Information

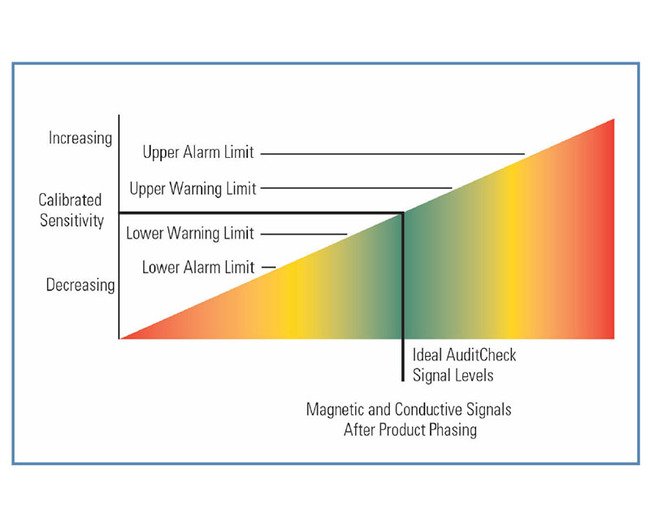

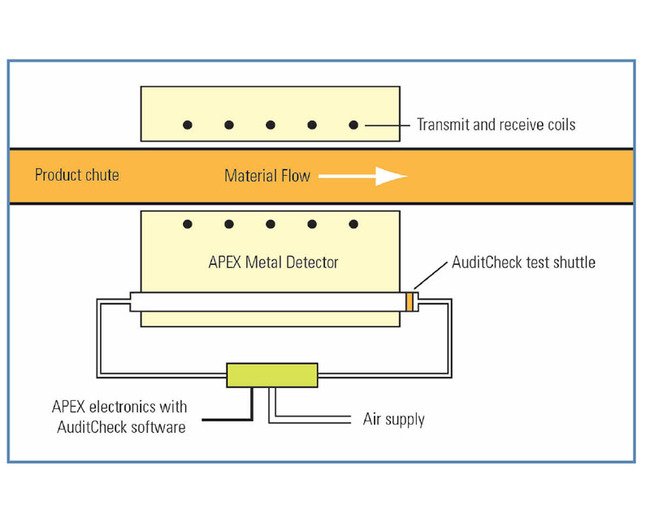

Ultra high sensitivityComplete, adjustable, mobile systemAuditCheck⢠verification optionHighest Level of Brand Protection. Lowest Cost of Ownership.The APEX 500 RX metal detector improves productivity while providing the highest level of brand protection available. Available in three aperture sizes so you can match sensitivity to product rate and size. Every system is also configured for 900 kHz operation for optimal stainless steel detection.Total Quality SolutionDesigned to ensure the absence of even small slivers of metal, the APEX 500 RX metal detector gives you the highest sensitivity possible at high flow rates-while preventing product damage. Tablets/capsules flow straight through the system to minimize potential damage.As part of the Thermo Scientific⢠Apex⢠family, this metal detector incorporates a Total Quality Solution (TQS) package featuring Thermo Scientific⢠AuditCheckâ¢. This unique system continuously monitors and validates the system's performance to help eliminate costly recall and quarantine. With AuditCheckâ¢, you don't need to perform manual testing to ensure high performance.Product Assurance Services & Solutions (PASS - Through the Thermo Scientific⢠Product Assurance Services & Solutions (PASS) program, we can thoroughly test every suspected product for contaminants so that you can continue producing products that your consumers rely on!
Available Options Available Options
High polish finishPneumatic or electronic reject actuationAuditCheck⢠Performance Validation SystemIQ/OQ/PQ validation packages (customized if required)Modbus Serial and Ethernet communicationsProduct outlets designed for open flow or attachment to flexible tubesHead only or OEM module configurations for integration into dedusters
Electrical Alternating Current Ac Voltage
85 to 260 V
Electrical Frequency
47 to 65 Hz
Electrical Maximum Power
100 W
Electrical Number Of Phase
1
Features And Benefits Features And Benefits
Cost-effective solution for tablet presses, capsule filling and deduster applicationsStraight through product flow to prevent product damageHigh sensitivity-can detect pieces of metal as small as 0.3 mmImproves productivity with throughput up to 500K tablets or capsules per hourEasy to use-features graphical user interface (GUI) that uses a durable touch-sensitive keypadThermo Scientific⢠Quality Assurance Test (QAT) and AuditCheck⢠features to verify performanceAssists in compliance with GMPs in 21 CFR part 210 and 211Available as a complete system, OEM module or head and control panel only
Machine Parts Machine Parts

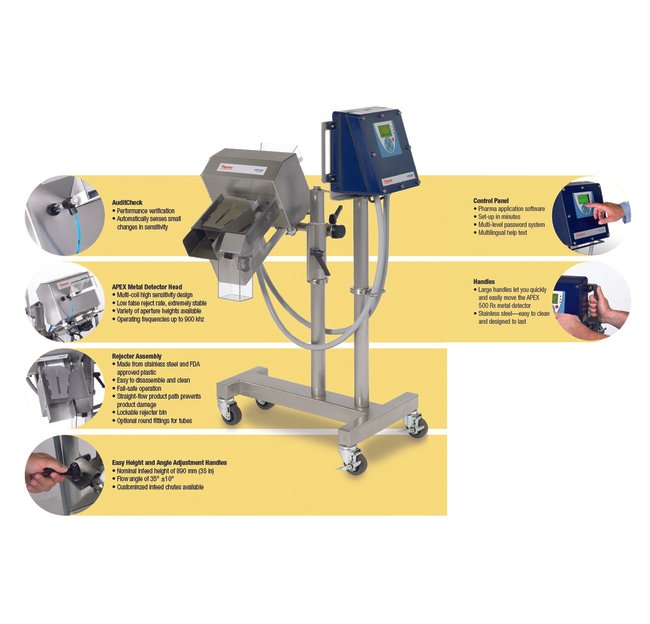

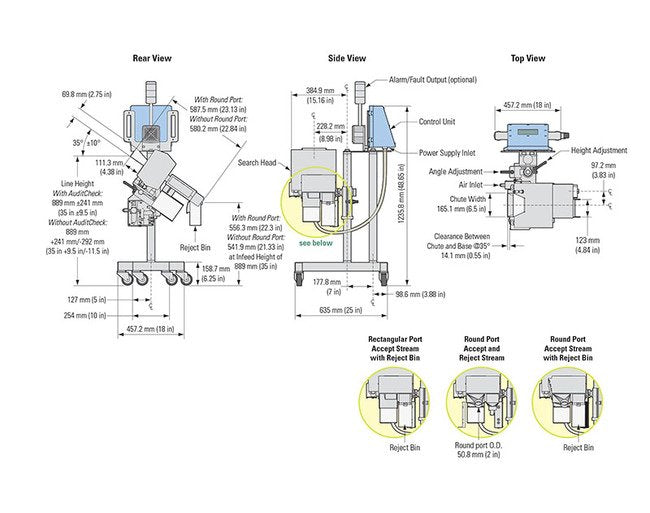

AuditCheckâ¢Performance verificationAutomatically senses small changes in sensitivityApex⢠Metal Detector HeadMulti-coil high sensitivity designLow false reject rate, extremely stableVariety of aperture heights availableOperating frequencies up to 900 khzRejecter AssemblyMade from stainless steel and FDA approved plasticEasy to disassemble and cleanFail-safe operationStraight-flow product path prevents product damageLockable rejecter binOptional round fittings for tubesEasy Height and Angle Adjustment HandlesNominal infeed height of 890 mm (35 in)Flow angle of 35º ±10ºCustomized infeed chutes availableControl PanelPharma application softwareSet-up in minutesMulti-level password systemMultilingual help textHandlesLarge handles let you quickly and easily move the APEX 500 Rx metal detectorStainless steel-easy to clean and designed to last
Output Types Maximum Alternating Current Ac Relay Voltage
250 V
Output Types Maximum Direct Current Dc Relay Voltage
50 V
Output Types Maximum Relay Alternating Current Ac
2 A
Output Types Maximum Relay Direct Current Dc
1 A
Output Types Number Of Output Relays
6
Specifications Brand
Apex⢠| Thermo Scientificâ¢
Specifications Communications
Ethernet Modules | Optional Modbus Serial
Specifications Construction
Stainless steel 304 straight lined case, high polish optional. All plastics used are FDA approved.
Specifications Help Text Users Manual Languages
Brazilian Portuguese | Chinese | Czech | Dutch | English | French | German | Italian | Korean | Polish | Russian | Spanish | Thai
Specifications Industry Focus
Pharmaceutical
Specifications Inputs
6 Inputs - Active 12 V DC + 12 Volt Auxiliary Supply for Input Sensors
Specifications Input Allocation
Clear All Warnings/Alarms/Faults (Selectable Via Menu) | External Alarm | External Reset | Infeed PEC | Keylock | Product Select 1 | Product Select 2 | Reject 1 Complete | Reject Confirmation 1 and Bin Full External Suppression | Speed Sensor
Specifications Manufacturing Quality
International Organization for Standardization (ISO 9001) Certified
Specifications Minimum Pressure
4 bar | 60 psi
Specifications Nominal Air Supply Pressure
5.5 bar | 80 psi
Specifications Non Condensing Relative Humidity
20 to 80 %
Specifications Operating Temperature
-10 to +40 ºC | +14 to +104 ºF
Specifications Output Allocation
Alarm | AuditCheck⢠| Fault | QAT Lamp (Selectable Via Menu) | Reject 1 | Reject 2 | Warning
Specifications Product Speed
0.5 to 100 m/min | 1.7 to 330 ft/min
Specifications Protection Ratings
Type 3 Enclosure
Specifications Safety And Export Approvals
cCSAus | European Conformity (CE)
