Thermo Scientific NextGuard Pro X-Ray Inspection System - 1.5m Conveyor Length
Thermo Scientific NextGuard Pro X-Ray Inspection System - 1.5m Conveyor Length
SKU:MAC-8800f7
Boost quality control with Thermo Scientific NextGuard Pro X-Ray System - perfect for large packages & wet environments.
Regular price
$34,999.99
Regular price
Sale price
$34,999.99
Unit price
per
Initiate Order
Thermo Scientific NextGuard Pro X-Ray Inspection System - 1.5m Conveyor Length
$34,999.99
Quantity: 1
Claim Your Seller Account
Thermo Scientific NextGuard Pro X-Ray Inspection System - 1.5m Conveyor Length
$34,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your quality control with the Thermo Scientific NextGuard Pro X-Ray Inspection System featuring a rugged design for large packages and wet applications. This system offers built-in rejection systems, shielding, heavy-duty motors, and stainless steel flange bearings. With a conveyor length of 1.5m and capability to handle up to 50kg, this system ensures efficient and reliable inspection for various industrial applications. Expandable and customizable, the Pro model is ideal for complex multi-conveyor setups.
Product Specifications
Additional Information Additional Information

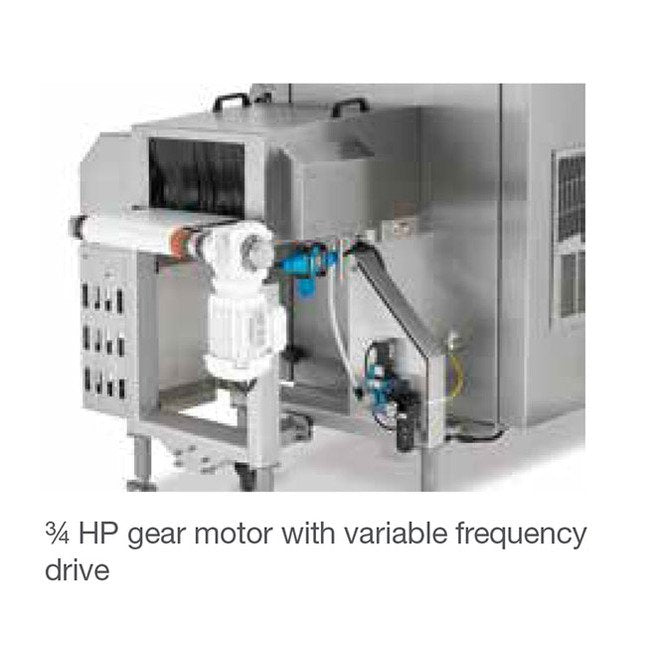

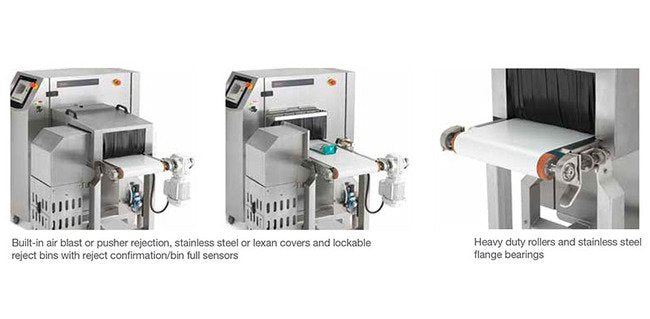

Built-in air blast or pusher rejection, stainless steel or lexan covers and lockable reject bins with reject confirmation/bin full sensorsHeavy duty rollers and stainless steel flange bearings3/4 HP gear motor with variable frequency drive
Application And X Ray Specifications Bearing Type
Stainless Steel Flange
Application And X Ray Specifications Conveyor Heights
1100 mm | 800 mm | 950 mm | 31.5 in | 37.4 in | 43.3 in
Application And X Ray Specifications Conveyor Heights Tolerance
75 mm | 3 in
Application And X Ray Specifications Frame
System always utilizes a single stainless steel frame. Locking wheels optional.
Application And X Ray Specifications Maximum Product Weight On C
50 kg | 110 lb
Application And X Ray Specifications Motion System
AC gear motor driven by variable frequency drive (VFD). Up to three VFDs to drive the system and two external conveyors.
Application And X Ray Specifications Roller Diameter
70 mm | 2.8 in
Application And X Ray Specifications Standard Conveyor Length
1.5 m | 59 in
Environment Electrical And Operational Specifications Alternatin
195 to 250 V
Environment Electrical And Operational Specifications Electrical
Autosensing | X Amps
Environment Electrical And Operational Specifications Frequency
50 Hz | 60 Hz
Environment Electrical And Operational Specifications Machine We
Contact Factory
Environment Electrical And Operational Specifications Number Of
1
Features Features
Same base features, capabilities and ease of use as the standard NextGuard⢠modelsHeavy-duty stainless frame, optional wheelsExtendable in-feed and outfeed conveyorsEasy disassembly for belt replacementHeavy-duty rollers, flange bearings and AC gear motor driveAvailable built-in reject bins with locking doors and reject verify/bin fullShielding to meet radiation requirements anywhere in the worldDesign flexibility for customized configurations
Note Note
All NextGuard⢠standard features and options are available on the Pro models.
Specifications Brand
NextGuard⢠| Thermo Scientificâ¢
Specifications Radiation Conformance Tests And Certifications
Food and Drug Administration Code of Federal Regulations (FDA CFR) 21 Part 1020.40 | Others | RED Act (Canada)
