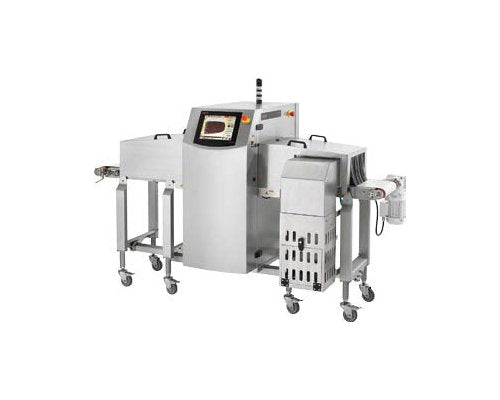

Thermo Scientific NextGuard Pro X-Ray Inspection System - 1.5m Standard Conveyor
Thermo Scientific NextGuard Pro X-Ray Inspection System - 1.5m Standard Conveyor
SKU:MAC-04c1e3
Enhanced X-ray inspection system with rugged design, built-in rejection, and FDA CFR 21 Part 1020.40 compliance.
Regular price
$34,999.00
Regular price
Sale price
$34,999.00
Unit price
per
Initiate Order
Thermo Scientific NextGuard Pro X-Ray Inspection System - 1.5m Standard Conveyor
$34,999.00
Quantity: 1
Claim Your Seller Account
Thermo Scientific NextGuard Pro X-Ray Inspection System - 1.5m Standard Conveyor
$34,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience enhanced X-ray inspection capabilities with the Thermo Scientific NextGuard Pro X-Ray Inspection System. Built on the success of the NextGuard C330 models, the Pro series offers versatile configurations and expanded capabilities for a wide range of applications. With heavy-duty construction, built-in rejection systems, and advanced motor technology, this system can handle larger packages and wet applications with ease. Meeting FDA CFR 21 Part 1020.40 and other radiation conformance standards, the Pro X-Ray Inspection System ensures both performance and compliance for your quality control needs.
Product Specifications
Additional Information Additional Information

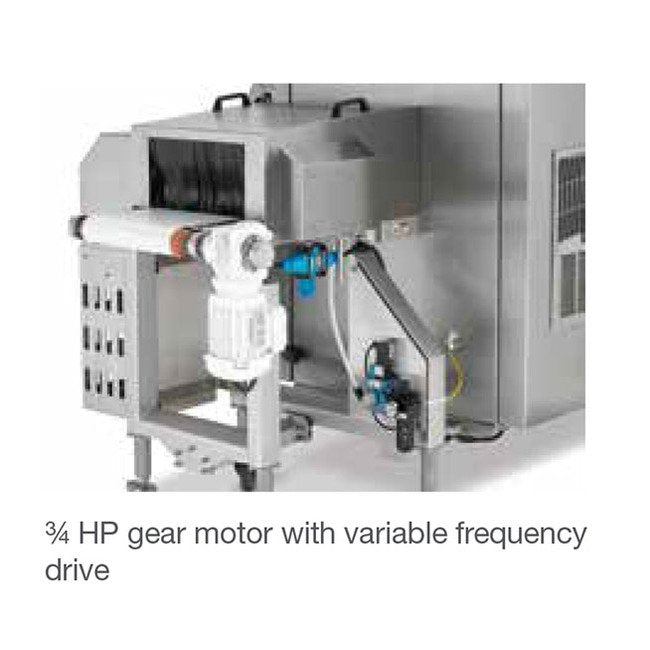

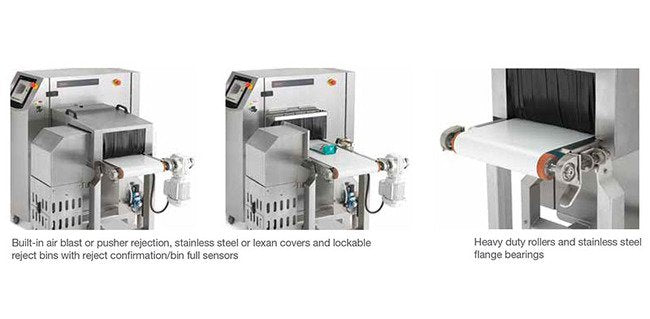

Built-in air blast or pusher rejection, stainless steel or lexan covers and lockable reject bins with reject confirmation/bin full sensorsHeavy duty rollers and stainless steel flange bearings3/4 HP gear motor with variable frequency drive
Application And X Ray Specifications Bearing Type
Stainless Steel Flange
Application And X Ray Specifications Conveyor Heights
1100 mm | 800 mm | 950 mm | 31.5 in | 37.4 in | 43.3 in
Application And X Ray Specifications Conveyor Heights Tolerance
75 mm | 3 in
Application And X Ray Specifications Frame
System always utilizes a single stainless steel frame. Locking wheels optional.
Application And X Ray Specifications Maximum Product Weight On C
50 kg | 110 lb
Application And X Ray Specifications Motion System
AC gear motor driven by variable frequency drive (VFD). Up to three VFDs to drive the system and two external conveyors.
Application And X Ray Specifications Roller Diameter
70 mm | 2.8 in
Application And X Ray Specifications Standard Conveyor Length
1.5 m | 59 in
Environment Electrical And Operational Specifications Alternatin
195 to 250 V
Environment Electrical And Operational Specifications Electrical
Autosensing | X Amps
Environment Electrical And Operational Specifications Frequency
50 Hz | 60 Hz
Environment Electrical And Operational Specifications Machine We
Contact Factory
Environment Electrical And Operational Specifications Number Of
1
Features Features
Same base features, capabilities and ease of use as the standard NextGuard⢠modelsHeavy-duty stainless frame, optional wheelsExtendable in-feed and outfeed conveyorsEasy disassembly for belt replacementHeavy-duty rollers, flange bearings and AC gear motor driveAvailable built-in reject bins with locking doors and reject verify/bin fullShielding to meet radiation requirements anywhere in the worldDesign flexibility for customized configurations
Note Note
All NextGuard⢠standard features and options are available on the Pro models.
Specifications Brand
NextGuard⢠| Thermo Scientificâ¢
Specifications Radiation Conformance Tests And Certifications
Food and Drug Administration Code of Federal Regulations (FDA CFR) 21 Part 1020.40 | Others | RED Act (Canada)
