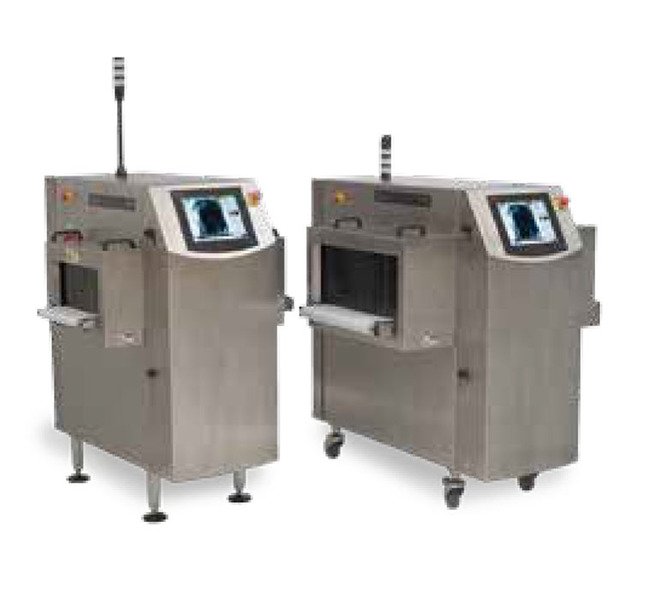

Thermo Scientific NextGuard X-Ray Inspection System for Packaged Products
Thermo Scientific NextGuard X-Ray Inspection System for Packaged Products
SKU:MAC-637ba7
Ensure product quality and safety with the Thermo Scientific NextGuard X-Ray Inspection System for packaged products.
Regular price
$24,999.00
Regular price
Sale price
$24,999.00
Unit price
per
Initiate Order
Thermo Scientific NextGuard X-Ray Inspection System for Packaged Products
$24,999.00
Quantity: 1
Claim Your Seller Account
Thermo Scientific NextGuard X-Ray Inspection System for Packaged Products
$24,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

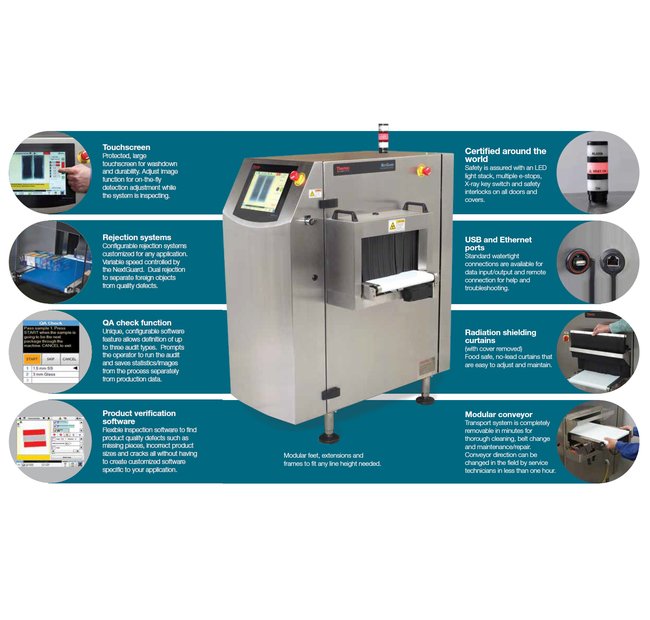

The Thermo Scientific NextGuard X-Ray Inspection System is a cost-effective solution designed for quality control in packaged products. With X-Ray power options of 80 kV to 160 W, it offers superior sensitivity to detect dense contaminants like metal, glass, and stone, ensuring compliance with HACCP and retailer food safety standards. Featuring a unique non-linear detector, modular design for reliability, and remote monitoring capabilities, this system is ideal for efficiently identifying errors in product fill levels, missing items, and irregular shapes. With configurable rejection systems, high-resolution detectors, and various inspection algorithms, it provides comprehensive product verification and mass estimation for both consumer and institutional buyers.
Product Specifications
Additional Information Additional Information

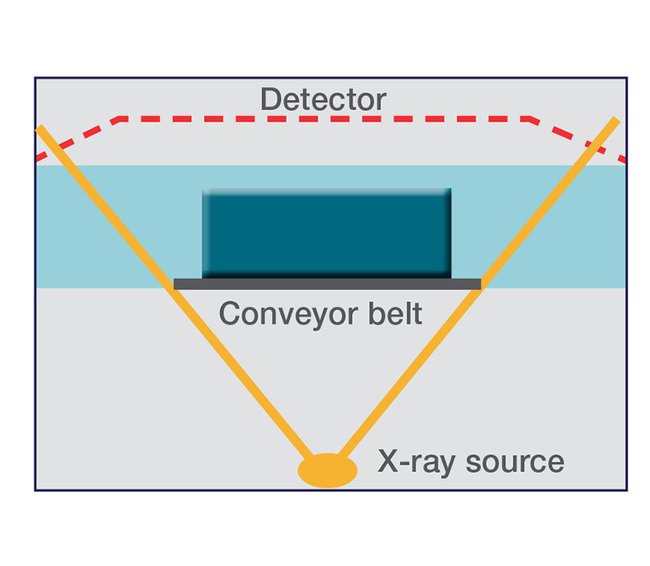

Innovative X-ray design assures 100% detection of any productMost X-ray detection systems project the X-ray beam from the top down in a narrow beam to a linear detector. This makes using the X-ray image for product inspections easier, but also means taller products must get narrower to always fit in the beam. With NextGuard⢠we wanted to make it simple for users, so we project a wide X-ray beam from the bottom up to a non-linear detector that assures everything is completely inspected. Any differences in X-ray signal across the arch-shaped detector are automatically calibrated out when you set-up your product. So no matter where the product passes through the beam, you always get the best detection possible! This architecture has the added benefit of limiting the height of the total machine and providing for optimum cooling, thus extending the life of the source.Product Assurance Services & Solutions (PASS) - Through the Thermo Scientific⢠Product Assurance Services & Solutions (PASS) program, we can thoroughly test every suspected product for contaminants so that you can continue producing products that your consumers rely on!
Application And X Ray Specifications Belt Material
Urethane
Application And X Ray Specifications Belt Material Approvals
Food and Drug Administration (FDA) | United States Department of Agriculture (USDA)
Application And X Ray Specifications Belt Speed C330 Spsr C330 H
10 to 80 m/min | 33 to 262 ft/min
Application And X Ray Specifications Conveyor Heights
31.5 in | 35.4 in | 39.4 in | 43.3 in | 1000 mm | 1100 mm | 800 mm | 900 mm
Application And X Ray Specifications Conveyor Heights Tolerance
80 mm
Application And X Ray Specifications Data File Exportimport
Audit Reports | Event Logs | Images | Machine Parameters | Product Files | Statistics
Application And X Ray Specifications Detection Algorithms Availa
Simple Threshold, Gradient, Morphologies and Contaminant Area Measure
Application And X Ray Specifications Diagonal Human Machine Inte
12.1 in | 307 mm
Application And X Ray Specifications Extended Conveyor Length
1.4 m | 4.6 ft
Application And X Ray Specifications External Rejecter Options
Integrated variable speed conveyors. Air blast or pusher. Lockable reject bin and reject/bin full photo sensors. Dual rejecters possible.
Application And X Ray Specifications Human Machine Interface Hmi
Windows® 7, Touchscreen
Application And X Ray Specifications Inspection Algorithms Avail
Image Processing/Thresholding/Blob Analysis, Grayscale Profiling and Mass Estimation
Application And X Ray Specifications Language Interfaces Availab
Chinese | Czech | Dutch | English | French | German | Indonesian | Italian | Polish | Portuguese | Russian | Spanish | Thai

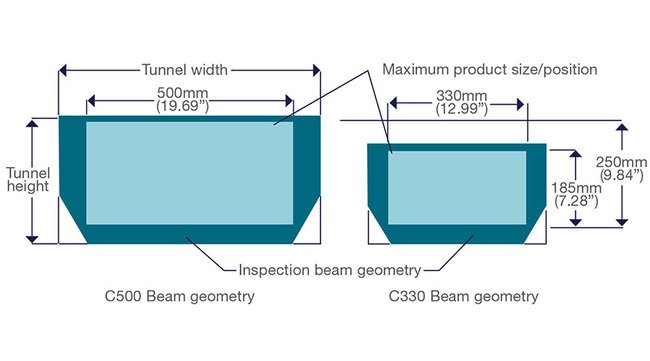

Application And X Ray Specifications Maximum Product Height
7.3 in | 185 mm
Application And X Ray Specifications Maximum Product Weight On C
10 kg | 22 lb
Application And X Ray Specifications Maximum Product Width
13.4 in | 340 mm
Application And X Ray Specifications Remote Access
Teamviewer Built-In
Application And X Ray Specifications Roller Diameter
1.3 in | 34 mm
Application And X Ray Specifications Scan Rate
0 to 1667 lines/sec
Application And X Ray Specifications Securitysafety Features
X-ray power key, four level password system, emergency X-ray/conveyor stop button, lead/lead-free curtains, failsafe LED X-ray imminent and on indication light
Application And X Ray Specifications Standard Conveyor Length
1 m | 3.3 ft
Application And X Ray Specifications Sensitivity
>= 1 mm diameter for Fe, non-Fe, SS, >=3 mm for other dense contaminants such as glass or stone (always verify application performance via a product test)
Application And X Ray Specifications X Ray Detector
Unique design with no inspection blind spots, optional 0.4 mm pixel size
Application And X Ray Specifications X Ray Power
100 W | 160 W | 80 kV | 1.25 mA | 2 mA
Conformance Tests And Certifications Construction Material
Type 304 Full Stainless Steel
Conformance Tests And Certifications Export And Safety
cCSAus | European Conformity (CE)
Conformance Tests And Certifications Ingress Protection Ip Washd
Ingress Protection (IP54)
Conformance Tests And Certifications Manufacturing Quality
International Organization for Standardization (ISO 9001) Certified
Conformance Tests And Certifications Radiation Conformance
Food and Drug Administration Code of Federal Regulations (FDA CFR) 21 Part 1020.40 | GB18871-2002 (China) | Ionizing Radiations Regulations (IRR99 United Kingdom (UK)) | NCF 74-100 (France) | Others | RED Act (Canada) | UNE 73-302 (Spain)
Environment Electrical And Operational Specifications Alternatin
195 to 250 V
Environment Electrical And Operational Specifications Current
10 A
Environment Electrical And Operational Specifications Digital In
Assignable Function | NPN/PNP (Jumper Selectable)
Environment Electrical And Operational Specifications Digital Ou
Assignable Function
Environment Electrical And Operational Specifications Direct Cur
0.5 A
Specifications Brand
NextGuard⢠| Thermo Scientificâ¢
