Thermo Scientific Sentinel Multiscan Metal Detector
Thermo Scientific Sentinel Multiscan Metal Detector
SKU:MAC-1c291d
Achieve ultimate food safety with the Thermo Scientific Sentinel Multiscan Metal Detector for demanding applications.
Regular price
$3,799.99
Regular price
Sale price
$3,799.99
Unit price
per
Initiate Order
Thermo Scientific Sentinel Multiscan Metal Detector
$3,799.99
Quantity: 1
Claim Your Seller Account
Thermo Scientific Sentinel Multiscan Metal Detector
$3,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Thermo Scientific Sentinel Multiscan Metal Detector is a cutting-edge solution designed to ensure the highest level of food safety and quality in demanding packaged product and bulk conveyor applications. Featuring Multiscan technology with up to five user-selectable frequencies ranging from 50 to 1000 kHz, this metal detector can identify contaminants up to 70% smaller in volume than previous technologies. With a stainless steel construction and IP69K rating for severe washdown environments, it offers flexibility, reliability, and ease of use with features like a touchscreen interface, detailed graphical displays, and wide ambient temperature range.
Product Specifications
Additional Information Additional Information

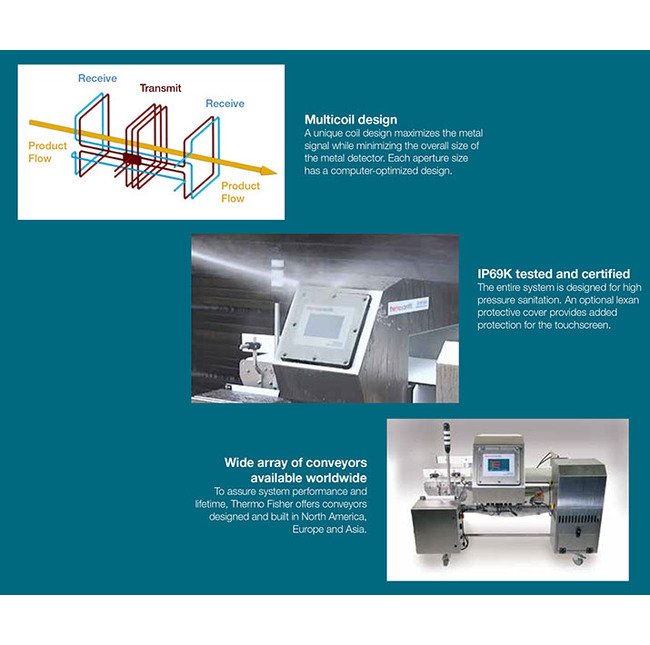

Complete flexibility for the highest level of food safetyAll metals whether iron, stainless steel, brass or aluminum react differently to an electromagnetic field. Their reaction changes based on shape, size, orientation and position. The small signal from the metal contaminant can hide inside of a much larger signal from a wet, salty or high mineral content product. Add to this unwanted electrical interference and vibration effects and you have the potential for metal foreign objects to go undetected.The Sentinel⢠detector offers an entirely new approach to this challenging problem. You no longer must pick the "best" frequency for an application or try running some combination of fixed dual frequencies. Instead, you select 1, 2, 3, 4, or 5 frequencies, use a step-by step wizard to set up your product and test any/all the types of contaminants of concern to see which frequencies work best. The Sentinel⢠detector immediately shows what is happening at each frequency such as signal levels, detections and changes in phase angle. No guesswork is needed. If one frequency seems to be doing all the work, simply adjust it to see if you can do better. If there is noise on a frequency or it doesnât provide protection in your application, disable it. It is that easy, fast and flexible. Do anything with any product at any time.Sentinel⢠shows exactly what a product and various contaminants are doing, taking the guesswork out of optimizing your application.
Application And Metal Detection Specifications Active Direct Cur
24 V
Application And Metal Detection Specifications Alternating Curre
250 V
Application And Metal Detection Specifications Aperture Height
75 to 600 mm
Application And Metal Detection Specifications Aperture Width
75 to 2000 mm
Application And Metal Detection Specifications Construction
Stainless steel 304 straight-line finished case and front panel, HD option utilizes 316 stainless steel. Optional three aperture liner styles for harsh washdown and high temperature applications.
Application And Metal Detection Specifications Diagonal Human Ma
7 in | 178 mm
Application And Metal Detection Specifications Direct Current Dc
50 V
Application And Metal Detection Specifications Foot Pattern And
Same As Apex 500 Metal Detector for Easy Upgrade
Application And Metal Detection Specifications Frequency
50 to 60 Hz | 50 to 1000 KHz (Multiscan runs up to five frequencies)
Application And Metal Detection Specifications Help Text Languag
English
Application And Metal Detection Specifications Input Allocation
External Alarm | External Reset | Infeed Photo Eye (PE) | Reject Confirmation 1 and Bin Full | Speed Sensor
Application And Metal Detection Specifications Maximum Output Re
1 A
Application And Metal Detection Specifications Metal Free Zone
1.5-2X Smallest Aperture Dimension, Can be Reduced with Optional Flanges
Application And Metal Detection Specifications Note For Aperture
Not all combinations are possible, contact Thermo Fisher for details.
Application And Metal Detection Specifications Number Of Inputs
8
Application And Metal Detection Specifications Number Of Output
8
Application And Metal Detection Specifications Output Allocation
Alarm | Fault | Reject 1 | Reject 2 | Warning
Application And Metal Detection Specifications Output Types
8 digital sourcing (PNP) outputs, 24 VDC with capacity of any two at 500 mA, the rest at 30 mA average each
Application And Metal Detection Specifications Product Speed
0.5 to 80 m/min | 1.7 to 262 ft/min
Application And Metal Detection Specifications Sensitivity
Detects contaminants up to 70% smaller in volume than APEX 500 (subject to application testing)
Available Options Available Options

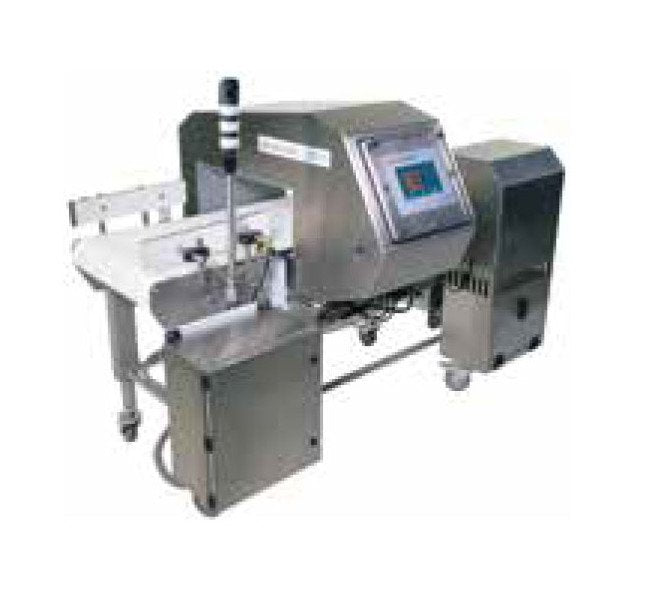

Welded field compression flanges to reduce metal-free zone in limited space applicationsHD construction for thermal shock caused by cleaning, includes 316 stainless steel constructionHigh temperature PVDF liners for hot productsHeavy-duty flip up polycarbonate control panel cover for extra protectionLED alarm/fault lights and hornRemote control panel mounting with optional tilt featureThermo Fisher designed and built conveyors in North America, Europe and ChinaMounting and conversion kits for other metal detectors
Conformance Tests And Certifications Export And Safety
cCSAus | European Conformity (CE)
Conformance Tests And Certifications Manufacturing Quality
International Organization for Standardization (ISO 9001) Certified
Conformance Tests And Certifications Protection Ratings
Ingress Protection (IP69K)
Environment Electrical And Operational Specifications Alternatin
100 to 240 V
Environment Electrical And Operational Specifications Current
0.6 to 1.2 A
Environment Electrical And Operational Specifications High Densi
65 ºC
Environment Electrical And Operational Specifications Maximum Hi
40 ºC | 104 ºF
Environment Electrical And Operational Specifications Maximum Po
120 ºC | 248 ºF
Environment Electrical And Operational Specifications Maximum Wa
55 ºC | 131 ºF
Environment Electrical And Operational Specifications Metal Dete
-10 to +40 ºC | +14 to +104 ºF
Environment Electrical And Operational Specifications Non Conden
20 to 80 %
Environment Electrical And Operational Specifications Note For M
PVDF liner option cannot be washed down (dry applications only)
Environment Electrical And Operational Specifications Number Of
1
Environment Electrical And Operational Specifications Product Te
-10 to 55 ºC | 14 to 131 ºF
Environment Electrical And Operational Specifications Watertight
2.0
Features And Benefits Features And Benefits

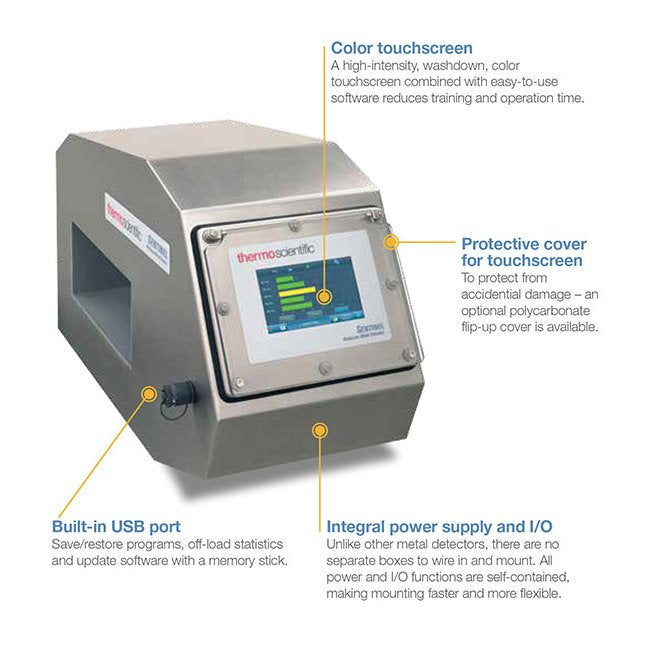

Multiscan frequency flexibility to optimize performance in any applicationEasy-to-use touchscreen with set-up wizards to reduce set-up timeDetailed graphical displays for phase, rejects, quality test, and detection thresholds to enable easy fine tuning and troubleshootingIP69K for severe washdown and dust, eliminating repair costsAll electronics are integral, so mounting is easy and flexibleAll balance functions are implemented in software, so no need for manual hardware rebalance in the fieldWide ambient temperature range assuring reliabilityFe, non-Fe and 316 SS test pieces included to fit specific application
Specifications Brand
Sentinel⢠| Thermo Scientificâ¢
