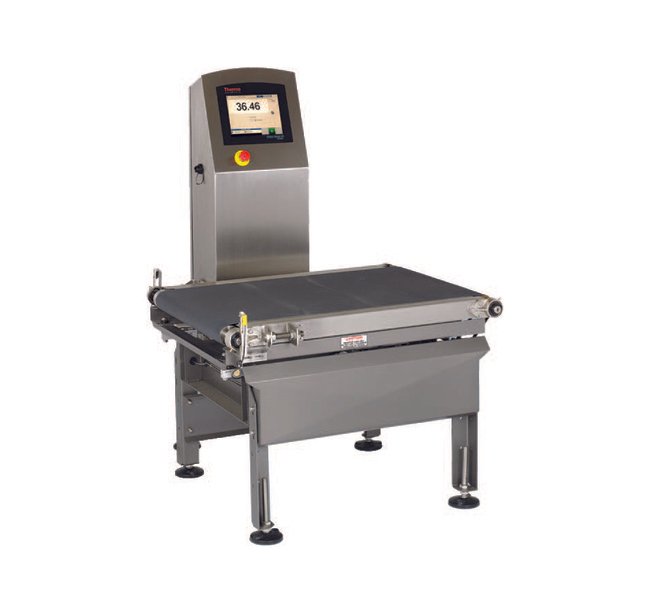

Thermo Scientific Versa 44HB Heavy-Duty Checkweigher
Thermo Scientific Versa 44HB Heavy-Duty Checkweigher
SKU:MAC-4107a6
Maximize productivity with the Thermo Scientific Versa 44HB Checkweigher - accurate weighing up to 110 lbs at 100 packages per minute!
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
Thermo Scientific Versa 44HB Heavy-Duty Checkweigher
$8,499.99
Quantity: 1
Claim Your Seller Account
Thermo Scientific Versa 44HB Heavy-Duty Checkweigher
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Thermo Scientific Versa 44HB Heavy-Duty Checkweigher is designed for industrial use with a weighing range of up to 110 lbs. It offers dependable and accurate on-line weighing of large packages, maximizing productivity with line rates of up to 100 packages per minute. Featuring a sturdy frame construction, including options for stainless steel, and a USDA/FDA approved food-grade belt, it is ideal for rugged industrial environments. The state-of-the-art electronics with a color touch screen HMI ensure easy operation and control, while the optional controller upgrade kit extends the equipment's lifespan.
Product Specifications
Controller Upgrade On Existing Frames Controller Upgrade On Exis
If your existing weigh conveyor Frame 44HB (formerly sold under the Ramsey brand name) is in good condition and you are interested in expanding its life, we provide a Versa Conversion Kit to replace your present controller.
Customized Options Customized Options
Engineered for true in-motion weighing - that means they will accurately weigh a wide variety of package weights without stopping the conveyor or recalibration. This flexibility guarantees that you'll experience maximum productivity at all times. The Versa Frame 44HB comes with a USDA/FDA approved food grade belt - making it the ideal choice for transferring raw or frozen products, bags, cases or barrels.
Features And Benefits Features And Benefits
Dependable and accurate on-line weighing of packages up to 110 lbs.Ideally suited for rugged industrial environmentsLine rates up to 100 packages per minuteUp to 300 fpm depending on package lengthTough and sturdy construction for heavier and larger productsAvailable in special sizes like XL and XXLUSDA/FDA approved food-grade beltEasy-to-use electronics - color touch screen HMI gives you the control you need at your fingertips!Conversion kit for upgrade available
Line Height Optional Line Height
34 to 50 in | 863 to 1270 mm
Line Height Standard Line Height
18 to 32 in | 457 to 812 mm
Power Control Power Consumption
300 V·A
Power Single Drop Alternating Current Ac Voltage
115 V
Power Single Drop Frequency
60 Hz
Power Single Drop Phase
1
Power Standard Motor Alternating Current Ac Voltage
115 V
Power Standard Motor Frequency
60 Hz
Power Standard Motor Phase
1
Specifications Brand
Thermo Scientificâ¢
Specifications Compatible Controls
Thermo Scientific⢠Versa
Specifications Conveying Media
Fabric Belt-USDA-Approved Whole Belting or Black Waffle Top Material
Specifications Frame Construction
Painted Steel-It
Specifications Harsh Washdown Environment Option
Includes Stainless Steel Construction, Washdown Motor and Environmentally Sealed Load Cells
Specifications Junction Box
NEMA 4X Fiberglass Enclosure
Specifications Operating Temperature
+14 to +105 ºF | -10 to +40 ºC
Specifications Optional Frame Construction
Stainless Steel
Specifications Package Length
0 to 45 in | 0 to 1143 mm
Specifications Package Pitch Spacing
Weightable Length Plus 1 in. (25.4 mm) or More
Specifications Photo Eye
Emitter/Receiver Photo Eye Arrangement
Specifications Speed
35 to 300 fpm | 11 to 91 m/min
Specifications Speed On Xl And Xxl System
540 fpm | 164 m/min
Specifications Weighing Range
Up to 110 lb
Specifications Weight Sensing System
Four (4) Strain Gauge Load Cells, Stainless Steel Construction
State Of The Art Electronics State Of The Art Electronics
The Thermo Scientific⢠Versa Frame 44HB offers the highest accuracy at the fastest speed and is designed to eliminate the learning curve. Versa control comes standard with Microsoft® Windows® XPe and features an easy-to-operate global platform with multi-language capability.
