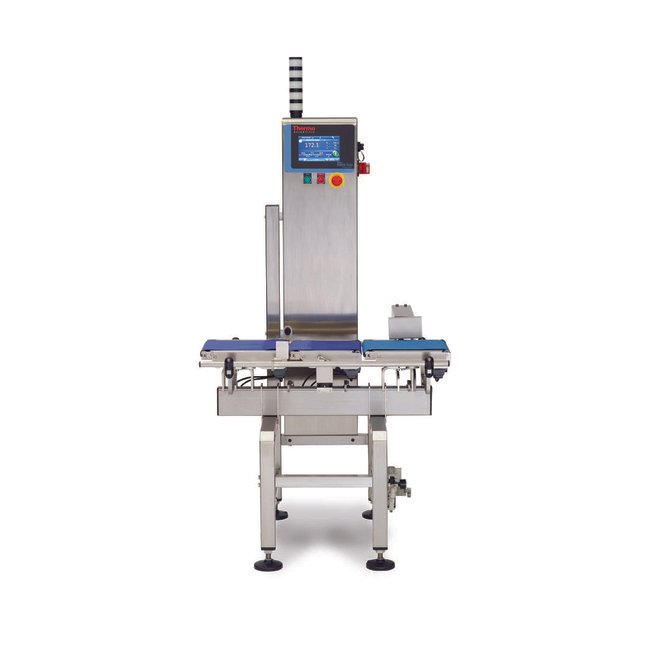

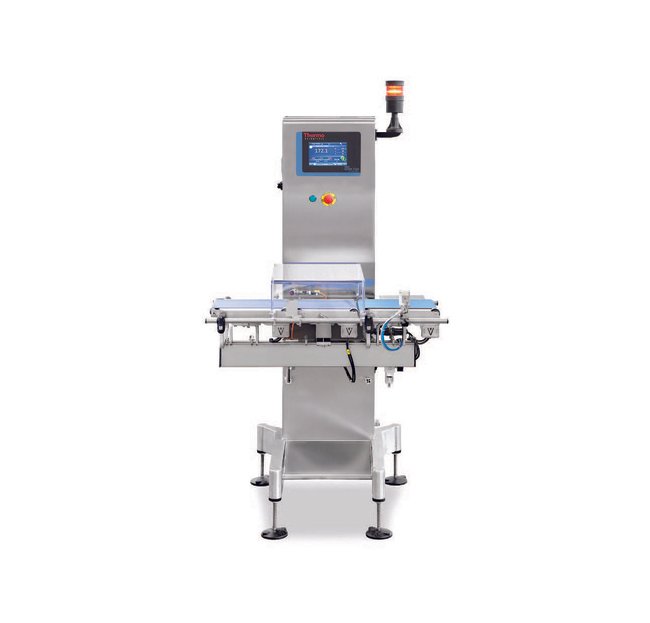

The Thermo Scientific Versa Flex Checkweigher is a cutting-edge solution designed to enhance accuracy and reliability in dry package weighing applications. With a weighing range of 6 kg and line speeds up to 90 m/min, this checkweigher ensures precise product weight measurements, minimizing maintenance costs and product giveaway. Compliant with OIML R51 International Standards and featuring a stainless steel frame with IP54 Ingress Protection, this checkweigher offers durability and efficiency. It is equipped with proprietary 21 CFR 11 compliant software for accuracy maintenance, making it an ideal choice for food, personal care, and pharmaceutical applications.
Product Specifications
Additional Information Additional Information
Versatile checkweighers to meet your needsImprove efficiency and profitability with checkweighers designed for dry applications. Enjoy high accuracy and advanced features with a standard system suitable for food, personal care or pharmaceutical applications.The Versa Flex and Versa Flex GP checkweighers are ideal for weighing a wide range of packaged products in dry environments - from light to heavy-weight packages.
Approvals Or Standards Approvals Or Standards
CE Low-Voltage Directive 2006/95/CECE Machinery Safety Directive 2006/42/CECE Electro-Magnetic Compatibility Directive 2004/108/CEComplies with EC Directive 2002/95/EC
Features Features

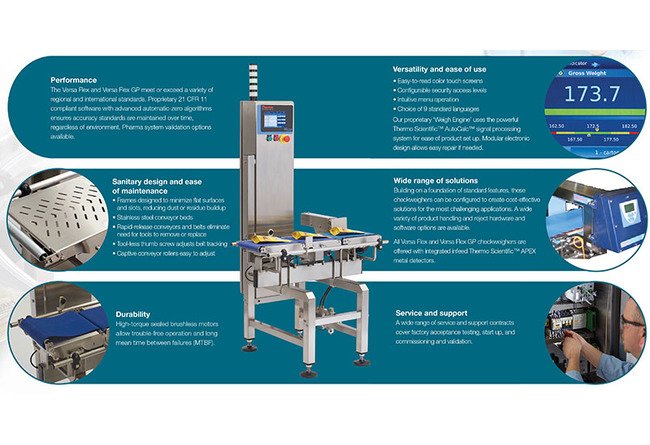

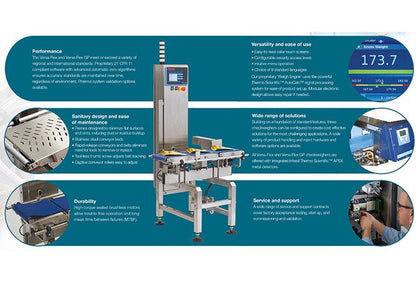

PerformanceThe Versa Flex and Versa Flex GP meet or exceed a variety of regional and international standards. Proprietary 21 CFR 11 compliant software with advanced automatic-zero algorithms ensures accuracy standards are maintained over time, regardless of environment. Pharma system validation options available.Versatility and ease of useEasy-to-read color touch screensConfigurable security access levelsIntuitive menu operationChoice of 9 standard languagesOur proprietary 'Weigh Engine' uses the powerful Thermo Scientific⢠AutoCalc⢠signal processing system for ease of product set up. Modular electronic design allows easy repair if needed.Sanitary design and ease of maintenanceFrames designed to minimize flat surfaces and slots, reducing dust or residue buildupStainless steel conveyor bedsRapid-release conveyors and belts eliminate need for tools to remove or replaceTool-less thumb screw adjusts belt trackingCaptive conveyor rollers easy to adjustWide range of solutionsBuilding on a foundation of standard features, these checkweighers can be configured to create cost-effective solutions for the most challenging applications. A wide variety of product handling and reject hardware and software options are available.All Versa Flex and Versa Flex GP checkweighers are offered with integrated infeed Thermo Scientific⢠APEX metal detectors.DurabilityHigh-torque sealed brushless motors allow trouble-free operation and long mean time between failures (MTBF).Service and supportA wide range of service and support contracts cover factory acceptance testing, start up, and commissioning and validation.
Line Height Usa Line Height
650 to 1100 mm
Line Height Usa Line Height Tolerance
80 mm
Line Speed Note For Line Speed
Pack rates dependent upon package length and weigh table length.
Material Material
Frame: 304 grade Stainless Steel (bead blast finish). Cabinet and conveyor beds (4b finish).Rollers: Hard anodized aluminum or SST (option); load cell aluminum or SST (option)Belts: Urethane FDA Blue UU20 or FDA Blue E2/1~E3/1 type depending on conveyor dimensions and application

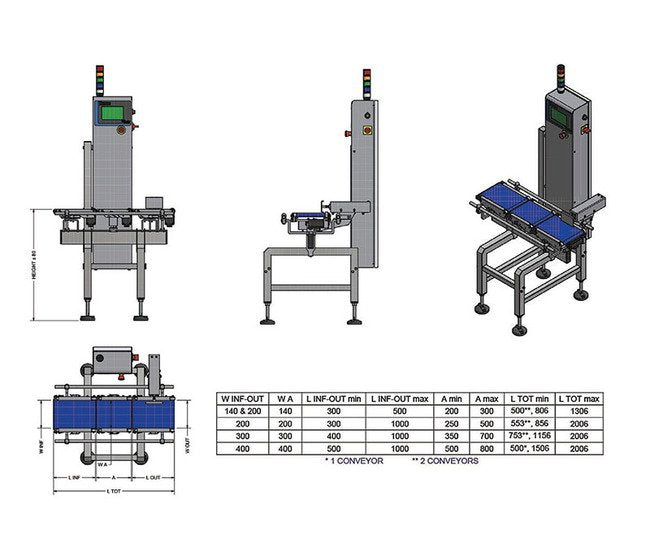

Overall Dimensions Approximate Overall Width
845 to 1500 mm
Overall Dimensions Overall Length
750 to 2000 mm
Product Dimensions Maximum Product Width
400 mm
Product Dimensions Product Length
25 to 500 mm
Service Specifications Alternating Current Ac Voltage
110/120 V | 220/240 V
Service Specifications Dry Air Flow
1000 L/min | 35 ft³/min
Service Specifications Dry Air Pressure
550 to 690 kPa | 5.5 to 6.9 bar | 80 to 100 psi
Service Specifications Frequency
50 Hz | 60 Hz
Service Specifications Maximum Current
15 A
Service Specifications Note For Dry Air Flow
Depending on application and configuration.
Service Specifications Phase
1
Specifications Accuracy
Random error: To OIML R51 International Standards. European MID Standards and Handbook - 44 U.S. standards or better.
Specifications Brand
Thermo Scientificâ¢
Specifications Ingress Protection
Ingress Protection (IP54)
Specifications Line Speed
0 to 90 m/min | 0 to 295 ft/min
Specifications Pollution Degree
II
Specifications Product Rate
0 to 250 packages/min
Specifications Product Type
Any, including cartons, bags, cups, bottles, jars, pouches, boxes, etc.
Specifications Weighing Range
6 kg
Specifications Weight Classification Zones
3 or 5 zone selectable.
