Thermo Scientific Versa Flex FR44HD Checkweigher
Thermo Scientific Versa Flex FR44HD Checkweigher
SKU:MAC-d88aa4
Efficiently weigh large packages with the Thermo Scientific Versa Flex FR44HD Checkweigher for maximum productivity and accuracy.
Regular price
$28,999.99
Regular price
Sale price
$28,999.99
Unit price
per
Initiate Order
Thermo Scientific Versa Flex FR44HD Checkweigher
$28,999.99
Quantity: 1
Claim Your Seller Account
Thermo Scientific Versa Flex FR44HD Checkweigher
$28,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

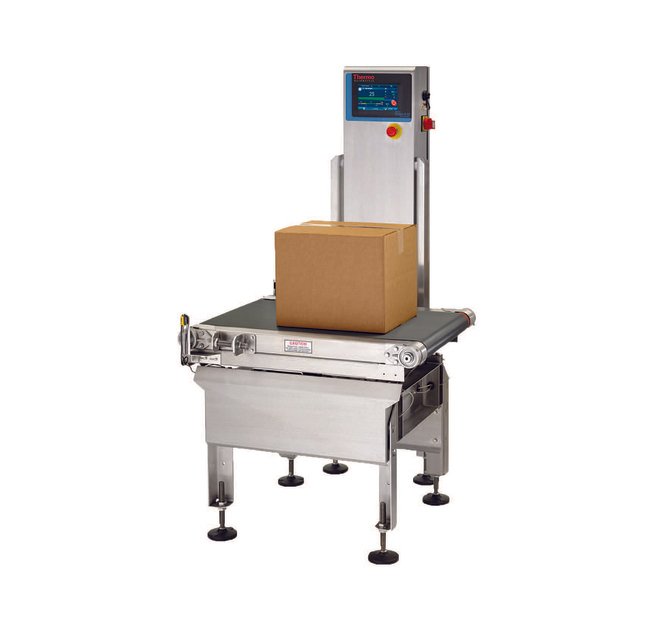

The Thermo Scientific Versa Flex FR44HD Heavy-Duty Checkweigher is designed for precise and reliable weighing of large packages up to 100 lbs. It offers exceptional speed, with a line rate of 0 to 100 packages/min, and a weighing range that maximizes productivity. Constructed with stainless steel, this checkweigher is ideal for rugged industrial environments, ensuring durability and accuracy. With customizable options for in-motion weighing, it guarantees continuous productivity without the need for recalibration. The Versa Flex FR44HD is compatible with FDA-approved belting, perfect for handling raw or frozen products in various packaging forms.
Product Specifications
Controller Upgrade On Existing Frames Controller Upgrade On Exis
If your existing weigh conveyor Frame 44HB weigh conveyor (formerly sold under the Ramsey brand name) is in good condition and you are interested in expanding its life, we provide a Versa Flex Conversion Kit to replace your present controller.
Customized Options Customized Options

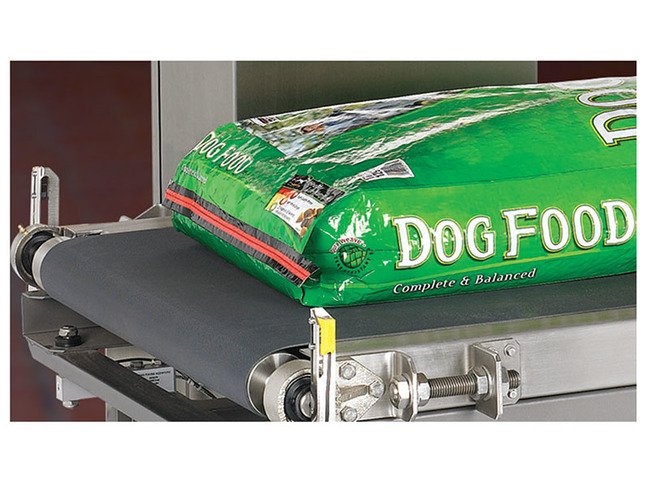

Engineered for true in-motion weighing of a wide variety of package weights without stopping the conveyor or needing to recalibrate. This flexibility guarantees that youâll experience maximum productivity at all times. The Versa Flex Frame 44HD checkweigher can be configured with an FDA-approved food-grade belt - making it the ideal choice for transferring raw or frozen products in bags, cases, boxes or barrels.
Features Features
Dependable and accurate on-line weighing of packages up to 100 lbs. (250 lbs. for XD)Ideally suited for rugged industrial environmentsTough and sturdy stainless construction for heavier and larger productsAvailable in extended sizes (XD)Conversion kit for upgrade available
Power Control Power Consumption
300 V·A
Power Single Drop Alternating Current Ac Voltage
115 to 230 V
Power Single Drop Frequency
60 Hz
Power Single Drop Phase
1
Specifications Brand
Thermo Scientificâ¢
Specifications Compatible Controls
Thermo Scientific⢠Versa Flex Controller
Specifications Conveying Media
Belt - FDA-Approved Blue Belting or Black Waffletop Belting
Specifications Frame Construction
Stainless Steel
Specifications Harsh Washdown Environment Option
IP 65 Includes Washdown Motor and Environmentally Sealed Load Cells, Bearings
Specifications Incremented Line Height
2 in | 51 mm
Specifications Line Height
18 to 50 in | 457 to 1270 mm
Specifications Line Rate
0 to 100 packages/min | 0 to 560 ft/min
Specifications Operating Temperature
5 to 40 ºC | +40 to +105 ºF
Specifications Package Length
0 to 45 in | 0 to 1143 mm
Specifications Package Pitch Spacing
Weightable Length Plus 1 in. (25.4 mm) or More
Specifications Photo Eye
Emitter/Receiver Photo Eye Arrangement
Specifications Speed
33 to 560 ft/min | 10 to 164 m/min
Specifications Weighing Range
Up to 100 lb
Specifications Weight Sensing System
Four (4) Strain Gauge Load Cells
State Of The Art Electronics State Of The Art Electronics
The Versa Flex Frame 44HD checkweigher offers the highest accuracy at the fastest speed and is designed to eliminate the learning curve. The Versa Flex control comes standard with Linux and features an easy-to-operate global platform with multi-language capability.
