Thermo Scientific Xpert 100W X-Ray Inspection System
Thermo Scientific Xpert 100W X-Ray Inspection System
SKU:MAC-f3b4df
Powerful X-ray inspection system for contaminant detection, product integrity verification, compliance with HACCP, and advanced quality control.
Regular price
$27,999.00
Regular price
Sale price
$27,999.00
Unit price
per
Initiate Order
Thermo Scientific Xpert 100W X-Ray Inspection System
$27,999.00
Quantity: 1
Claim Your Seller Account
Thermo Scientific Xpert 100W X-Ray Inspection System
$27,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

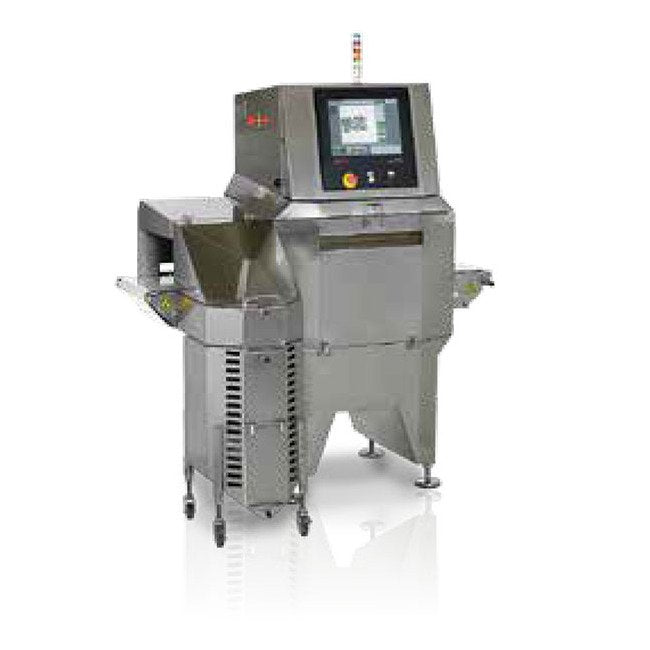

The Thermo Scientific Xpert 100W X-Ray Inspection System offers powerful contaminant detection, product integrity verification, and compliance with worldwide HACCP and retailer food safety standards. With high-resolution detectors, advanced inspection algorithms, and a modular, robust design, this system ensures reliable detection with minimal false rejects. Featuring food-safe materials and multiple customization options, it is ideal for institutional and government procurement. Enhance quality control and meet stringent industry standards with the Xpert 100W.
Product Specifications
Additional Information Additional Information
Innovative design and advanced technology, along with application flexibility makes the Xpert⢠easy to install and use in many different applications.It is ideal for small bags to large cartons and customizations for material handling, harsh environments and special inspections.Sensitivity, durability, reliabilityWith industry-leading resolution and detection software, the Xpert⢠system can find contaminants other systems miss, so your production shipments are safe with a minimum of false rejects. To address TCO (Total Cost of Ownership), the Xpert⢠was designed to be simple, modular, flexible and insensitive to its environment.A five-step Easy Set-Up process keeps it simple to use. To facilitate application optimization and troubleshooting, the Xpert⢠systems allow real-time software filter adjustment, reject image storage/analysis, I/O and source/ detector testing and other advanced software capabilities, along with full machine data logging. The result is an X-ray system that is a food quality and safety expert.Product Assurance Services & Solutions (PASS) - Through the Thermo Scientific⢠Product Assurance Services & Solutions (PASS) program, we can thoroughly test every suspected product for contaminants so that you can continue producing products that your consumers rely on!
Application And X Ray Specifications Belt Material
Urethane
Application And X Ray Specifications Belt Material Approvals
Food and Drug Administration (FDA)
Application And X Ray Specifications Belt Speed Range
0 to 60 m/min | 0 to 196 ft/min
Application And X Ray Specifications Conveyor Heights
From 31.5 to 39.4 in | From 800 to 1000 mm
Application And X Ray Specifications Conveyor Length
1.5 m
Application And X Ray Specifications Conveyor Line Length
58.6 in
Application And X Ray Specifications Detection Algorithms Availa
Binary | Contrast | Gradient | Groups | Morphology
Application And X Ray Specifications Detector Scan Rate
0 to 2800 lines/sec
Application And X Ray Specifications Diagonal Human Machine Inte
15 in
Application And X Ray Specifications Inspection Algorithms Avail
Count | Customizations | Grid | Weight
Application And X Ray Specifications Interface Languages Availab
Chinese | English | French | German | Italian | Spanish
Application And X Ray Specifications Lower Speed
40 m/min | 130 ft/min
Application And X Ray Specifications Multi Lane Operation
Up to 8 Lanes
Application And X Ray Specifications Nominal Line Height For Ava
1200 mm | 1400 mm | 47.2 to 55.1 in
Application And X Ray Specifications Optional Detector Resolutio
0.4 mm
Application And X Ray Specifications Safetysecurity Features
All Doors Equipped with Magnetic Interlocks | Emergency Stops | Light-Emitting Diode (LED) X-Ray Imminent/On Lights | Radiation Curtains | X-Ray Power Key
Application And X Ray Specifications Standard Detector Resolutio
0.8 mm
Application And X Ray Specifications Standard X Ray Power
100 W | 70 kV | 1.4 mA
Application And X Ray Specifications X Ray Curtain Material
Proprietary No-Lead
Conformance Tests And Certifications Export And Safety
Canadian Standards Association (CSA) | European Conformity (CE) | Underwriters Laboratories (UL)
Conformance Tests And Certifications Intrusion Protection Rating
Ingress Protection (IP54)
Conformance Tests And Certifications Radiation Conformance
Food and Drug Administration Code of Federal Regulations (FDA CFR) 21 Part 1020.40 | Ionizing Radiations Regulations (IRR99 United Kingdom (UK)) | RED Act (Canada)
Electrical Input Electrical Input Alternating Current Ac Voltage
190 to 240 V
Electrical Input Electrical Input Frequency
50 Hz | 60 Hz
Electrical Input Electrical Input Service Current
20 A
Environment Electrical And Operational Specifications Available
4
Environment Electrical And Operational Specifications Compressed
80 to 100 psi | 5.5 to 6.9 bar
Environment Electrical And Operational Specifications Machine Co
Built-In 2083 BTU (610 W) Cabinet Air Conditioner
Environment Electrical And Operational Specifications Machine We
415 kg | 915 lb
Environment Electrical And Operational Specifications Network Po
Ethernet
Environment Electrical And Operational Specifications Non Conden
20 to 90 %
Environment Electrical And Operational Specifications Operating
5 to 40 ºC | +41 to +104 ºF
Environment Electrical And Operational Specifications Universal
2.0
Features And Benefits Features And Benefits
Detects a range of contaminantsVerifies product integrityModular, reliable, robust designHigh resolution and sensitivity detectors for state-of-the-art performanceSuite of inspection algorithms for reliable detection and minimal false rejectsHigh reliability X-ray sources with long life expectanciesFood-safe materials employed for areas close to the products being inspectedModular, robust mechanical design improves reliability and facilitates servicingMultiple apertures and X-ray powersBuilt-in, remote monitoring for quick problem determination
Machine Parts Machine Parts

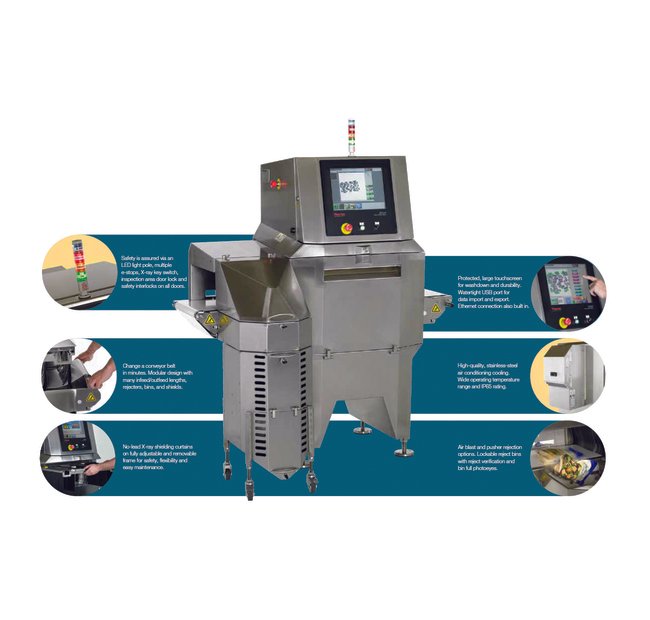

Safety is assured via an LED light pole, multiple e-stops, X-ray key switch, inspection area door lock and safety interlocks on all doors.Change a conveyor belt in minutes. Modular design with many infeed/outfeed lengths, rejecters, bins, and shields.No-lead X-ray shielding curtains on fully adjustable and removable frame for safety, flexibility and easy maintenance.Protected, large touchscreen for washdown and durability. Watertight USB port for data import and export. Ethernet connection also built-in.High-quality, stainless-steel air conditioning cooling. Wide operating temperature range and IP65 rating.Air blast and pusher rejection options. Lockable reject bins with reject verification and bin full photoeyes.
Options To Customize Your Systems Options To Customize Your Syst
Extended length in/out feed conveyorsReject mechanismsSingle or dual reject binsLockable system wheelsGuiderailsBarcode readersLow/med/high power X-ray sourcesStainless steel IP65 rated air conditionerRadiation safety meterAdvanced weight and virtual containment softwareCustomized inspection softwareUL508 compliance (standard in North America)Spare parts kits
Specifications Brand
Thermo Scientific⢠| Xpertâ¢
