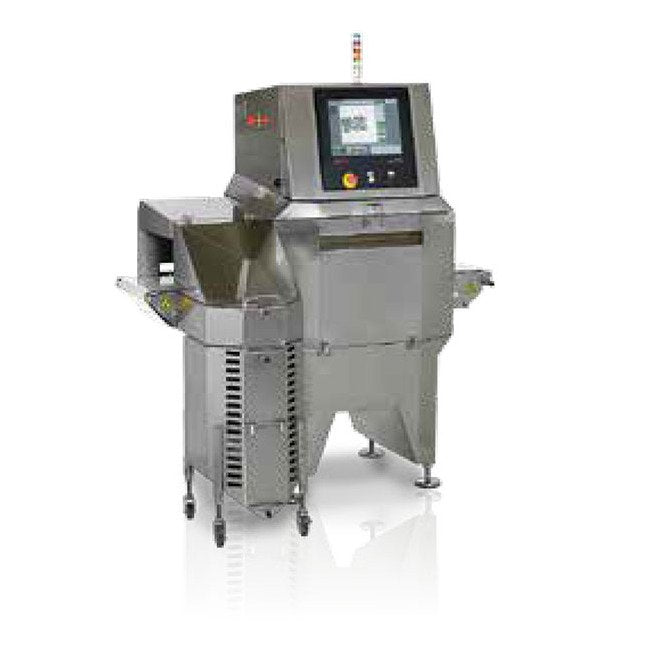

The Thermo Scientific Xpert 315W Standard X-Ray Power Inspection System is a cutting-edge solution for comprehensive contaminant detection and product inspection. With a powerful X-ray source of 315 Watts and a standard detector resolution of 0.8mm, it offers high sensitivity and accuracy in identifying foreign objects. Equipped with a suite of inspection and detection algorithms, including Binary, Contrast, Gradient, and more, it ensures reliable performance. This system is designed for compliance with various safety standards like FDA CFR, CE, and CSA, meeting the stringent requirements of government and institutional buyers.
Product Specifications
Additional Information Additional Information
Innovative design and advanced technology, along with application flexibility makes the Xpert⢠easy to install and use in many different applications.It is ideal for small bags to large cartons and customizations for material handling, harsh environments and special inspections.Sensitivity, durability, reliabilityWith industry-leading resolution and detection software, the Xpert⢠system can find contaminants other systems miss, so your production shipments are safe with a minimum of false rejects. To address TCO (Total Cost of Ownership), the Xpert⢠was designed to be simple, modular, flexible and insensitive to its environment.A five-step Easy Set-Up process keeps it simple to use. To facilitate application optimization and troubleshooting, the Xpert⢠systems allow real-time software filter adjustment, reject image storage/analysis, I/O and source/ detector testing and other advanced software capabilities, along with full machine data logging. The result is an X-ray system that is a food quality and safety expert.Product Assurance Services & Solutions (PASS) - Through the Thermo Scientific⢠Product Assurance Services & Solutions (PASS) program, we can thoroughly test every suspected product for contaminants so that you can continue producing products that your consumers rely on!
Application And X Ray Specifications Belt Material
Urethane
Application And X Ray Specifications Belt Material Approvals
Food and Drug Administration (FDA)
Application And X Ray Specifications Belt Speed Range
0 to 60 m/min | 0 to 196 ft/min
Application And X Ray Specifications Conveyor Heights
From 31.5 to 39.4 in | From 800 to 1000 mm
Application And X Ray Specifications Conveyor Length
1.8 m
Application And X Ray Specifications Conveyor Line Length
70.9 in
Application And X Ray Specifications Detection Algorithms Availa
Binary | Contrast | Gradient | Groups | Morphology
Application And X Ray Specifications Detector Scan Rate
0 to 2800 lines/sec
Application And X Ray Specifications Diagonal Human Machine Inte
15 in
Application And X Ray Specifications Inspection Algorithms Avail
Count | Customizations | Grid | Weight
Application And X Ray Specifications Interface Languages Availab
Chinese | English | French | German | Italian | Spanish
Application And X Ray Specifications Lower Speed
40 m/min | 130 ft/min
Application And X Ray Specifications Multi Lane Operation
Up to 8 Lanes
Application And X Ray Specifications Nominal Line Height For Ava
1200 mm | 1400 mm | 47.2 to 55.1 in
Application And X Ray Specifications Safetysecurity Features
All Doors Equipped with Magnetic Interlocks | Emergency Stops | Light-Emitting Diode (LED) X-Ray Imminent/On Lights | Radiation Curtains | X-Ray Power Key
Application And X Ray Specifications Standard Detector Resolutio
0.8 mm
Application And X Ray Specifications Standard X Ray Power
315 W | 90 kV | 3.5 mA
Application And X Ray Specifications X Ray Curtain Material
Proprietary No-Lead
Conformance Tests And Certifications Export And Safety
Canadian Standards Association (CSA) | European Conformity (CE) | Underwriters Laboratories (UL)
Conformance Tests And Certifications Intrusion Protection Rating
Ingress Protection (IP54)
Conformance Tests And Certifications Radiation Conformance
Food and Drug Administration Code of Federal Regulations (FDA CFR) 21 Part 1020.40 | Ionizing Radiations Regulations (IRR99 United Kingdom (UK)) | RED Act (Canada)
Electrical Input Electrical Input Alternating Current Ac Voltage
190 to 240 V
Electrical Input Electrical Input Frequency
50 Hz | 60 Hz
Electrical Input Electrical Input Service Current
20 A
Environment Electrical And Operational Specifications Available
4
Environment Electrical And Operational Specifications Compressed
80 to 100 psi | 5.5 to 6.9 bar
Environment Electrical And Operational Specifications Machine Co
Built-In 2083 BTU (610 W) Cabinet Air Conditioner
Environment Electrical And Operational Specifications Network Po
Ethernet
Environment Electrical And Operational Specifications Non Conden
20 to 90 %
Environment Electrical And Operational Specifications Operating
5 to 40 ºC | +41 to +104 ºF
Environment Electrical And Operational Specifications Universal
2.0
Features And Benefits Features And Benefits
Detects a range of contaminantsVerifies product integrityModular, reliable, robust designHigh resolution and sensitivity detectors for state-of-the-art performanceSuite of inspection algorithms for reliable detection and minimal false rejectsHigh reliability X-ray sources with long life expectanciesFood-safe materials employed for areas close to the products being inspectedModular, robust mechanical design improves reliability and facilitates servicingMultiple apertures and X-ray powersBuilt-in, remote monitoring for quick problem determination
Machine Parts Machine Parts

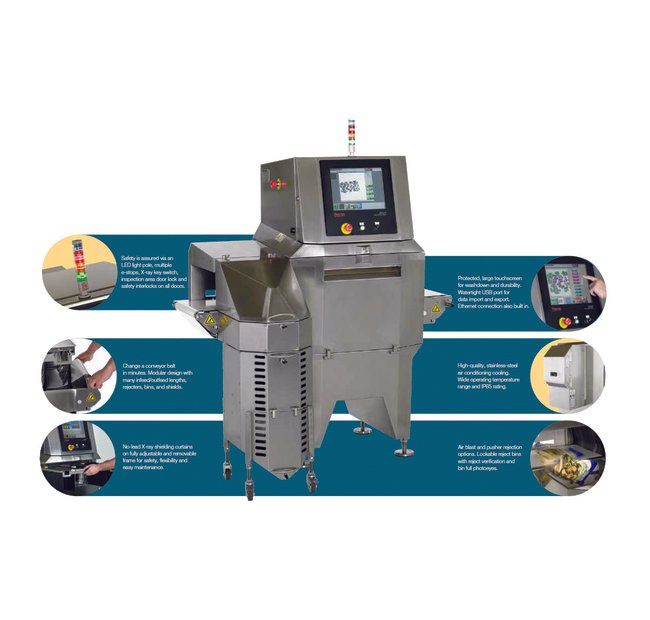

Safety is assured via an LED light pole, multiple e-stops, X-ray key switch, inspection area door lock and safety interlocks on all doors.Change a conveyor belt in minutes. Modular design with many infeed/outfeed lengths, rejecters, bins, and shields.No-lead X-ray shielding curtains on fully adjustable and removable frame for safety, flexibility and easy maintenance.Protected, large touchscreen for washdown and durability. Watertight USB port for data import and export. Ethernet connection also built-in.High-quality, stainless-steel air conditioning cooling. Wide operating temperature range and IP65 rating.Air blast and pusher rejection options. Lockable reject bins with reject verification and bin full photoeyes.
Options To Customize Your Systems Options To Customize Your Syst
Extended length in/out feed conveyorsReject mechanismsSingle or dual reject binsLockable system wheelsGuiderailsBarcode readersLow/med/high power X-ray sourcesStainless steel IP65 rated air conditionerRadiation safety meterAdvanced weight and virtual containment softwareCustomized inspection softwareUL508 compliance (standard in North America)Spare parts kits
Specifications Brand
Thermo Scientific⢠| Xpertâ¢
