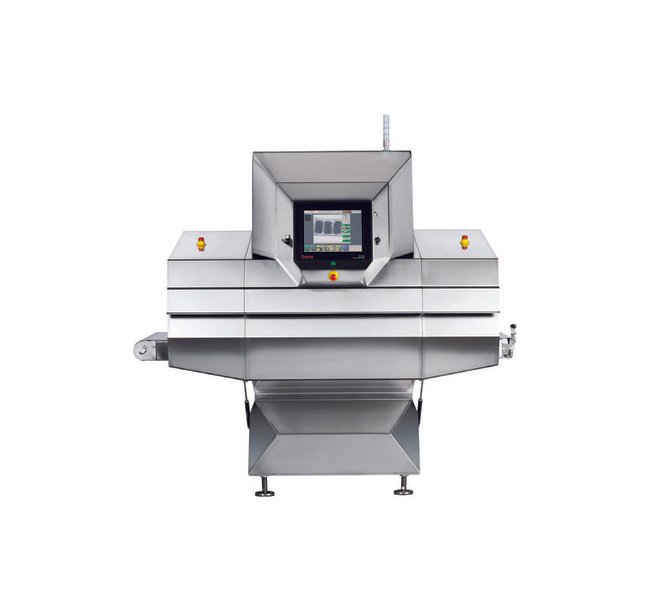

Thermo Scientific Xpert 355mm Heavy-Duty X-Ray Inspection System
Thermo Scientific Xpert 355mm Heavy-Duty X-Ray Inspection System
SKU:MAC-ee637e
Detects foreign materials in large products with powerful 90kV X-ray. Ensures safety and efficiency with FDA-approved shielding and safety features. Optional high-resolution detectors available.
Regular price
$29,999.00
Regular price
Sale price
$29,999.00
Unit price
per
Initiate Order
Thermo Scientific Xpert 355mm Heavy-Duty X-Ray Inspection System
$29,999.00
Quantity: 1
Claim Your Seller Account
Thermo Scientific Xpert 355mm Heavy-Duty X-Ray Inspection System
$29,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Thermo Scientific Xpert 355mm Heavy-Duty X-Ray Inspection System is designed for maximum penetration in large, dense products. With a powerful 90kV X-ray power and multiple detection algorithms, this system offers robust solutions for detecting a wide range of foreign materials. Equipped with an inspectable belt width of 355mm and safety features like FDA-approved lead-free curtains, magnetic interlocks, and emergency stops, it ensures efficient and secure operations. With options for high-resolution detectors and customized inspection software, this system meets stringent washdown procedures and radiation safety requirements globally.
Product Specifications
Application And X Ray Specifications Belt Speed Range
10 to 60 m/min | 33 to 196 ft/min
Application And X Ray Specifications Detection Algorithms Availa
Binary | Contrast | Gradient | Groups | Morphology
Application And X Ray Specifications Detector Scan Rate
0 to 2800 lines/sec
Application And X Ray Specifications Human Machine Interface Hmi
15-inch Diagonal Touchscreen with Protective Cover

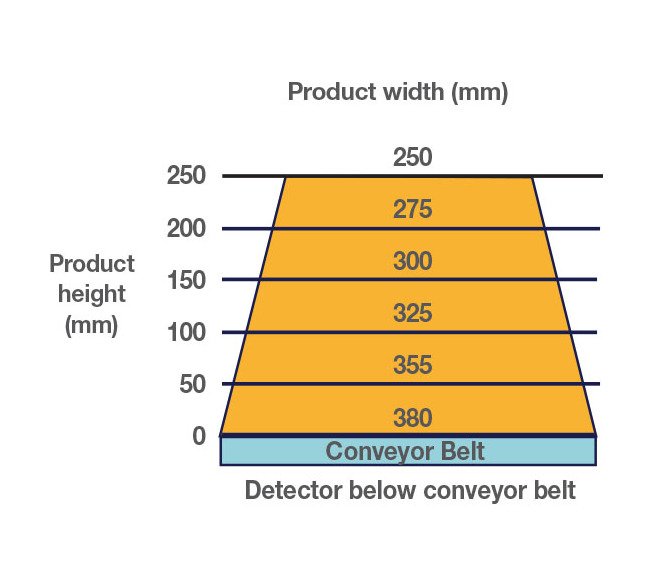

Application And X Ray Specifications Inspectable Belt Width At 5
355 mm
Application And X Ray Specifications Interface Languages Availab
Chinese | English | French | German | Hungarian | Italian | Korean | Norwegian | Polish | Spanish
Application And X Ray Specifications Maximum Conveyable Product
30 kg | 66 lb
Application And X Ray Specifications Maximum Inspectable Belt Wi
250 mm
Application And X Ray Specifications Multi Lane Operation
Single lane or 8 lanes with separate reject gates
Application And X Ray Specifications Optional Detector Resolutio
0.4 mm
Application And X Ray Specifications Safetysecurity Features
All Doors have Magnetic Interlocks | Emergency Stops | Light-Emitting Diode (LED) X-Ray Imminent/On Lights | Radiation Curtains | X-Ray Power Key
Application And X Ray Specifications Standard Detector Resolutio
0.8 mm
Application And X Ray Specifications Standard Line Height
900 mm
Application And X Ray Specifications Standard Line Height Tolera
100 mm
Application And X Ray Specifications System Length
2.1 m | 82.7 in
Application And X Ray Specifications X Ray Power
90 kV | 10 mA | 900 W
Application And X Ray Specifications X Ray Shielding
Lead Free, FDA Approved Curtains
Conformance Tests And Certifications Export And Safety
European Conformity (CE) | Underwriters Laboratories (UL 508A)
Conformance Tests And Certifications Intrusion Protection Rating
Ingress Protection (IP65)
Conformance Tests And Certifications Radiation Safety Conformanc
Food and Drug Administration Code of Federal Regulations (FDA CFR) 21 Part 1020.40
Electrical Input Electrical Input Alternating Current Ac Voltage
190 to 240 V
Electrical Input Electrical Input Current
16 A
Electrical Input Electrical Input Frequency
50 Hz | 60 Hz
Electrical Input Electrical Input Phase
1
Environment Electrical And Operational Specifications Machine Co
External Water Chiller
Environment Electrical And Operational Specifications Machine We
850 kg | 1870 lb
Environment Electrical And Operational Specifications Network Po
Ethernet
Environment Electrical And Operational Specifications Non Conden
0 to 90 %
Environment Electrical And Operational Specifications Operating
5 to 40 ºC | +41 to +104 ºF
Environment Electrical And Operational Specifications Universal
2.0
Features Features
All of the Xpert⢠HD systems have the following features:Very high X-ray power (900W - 90 kV/10mA)Optimal performance with easy setup and useA belt width and aperture height to accommodate most large package sizesRobust design to meet stringent washdown proceduresShielding to meet radiation requirements anywhere in the world
Options Options
External chiller for X-ray tube and cabinet coolingHigh resolution detectors (C400 model only)Integrated or stand-alone rejection systemsCustomized inspection softwareFrames for taller line heights
Specifications Brand
Thermo Scientific⢠| Xpertâ¢
