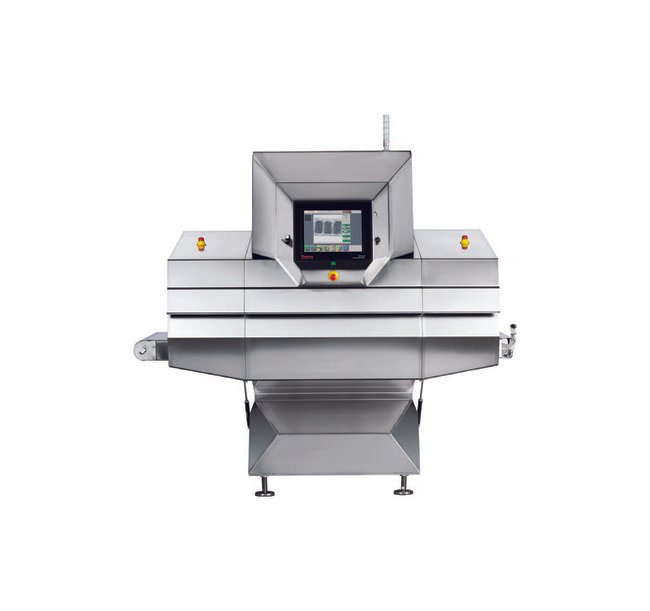

Thermo Scientific Xpert 540mm HD X-Ray Inspection System
Thermo Scientific Xpert 540mm HD X-Ray Inspection System
SKU:MAC-47335e
Detect foreign materials with ease using Thermo Scientific Xpert 540mm HD X-Ray Inspection System.
Regular price
$58,999.00
Regular price
Sale price
$58,999.00
Unit price
per
Initiate Order
Thermo Scientific Xpert 540mm HD X-Ray Inspection System
$58,999.00
Quantity: 1
Claim Your Seller Account
Thermo Scientific Xpert 540mm HD X-Ray Inspection System
$58,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Thermo Scientific Xpert 540mm HD X-Ray Inspection System offers maximum penetration for large, dense products. With a 90kV X-ray power and a detector scan rate of 0 to 2800 lines/sec, this system provides robust solutions for detecting foreign materials in larger cases, bags, and trays. It features an inspectable belt width of 540mm, belt speeds ranging from 10 to 60 m/min, and multi-lane operation capabilities. Equipped with safety features like magnetic interlocks, emergency stops, and lead-free FDA-approved curtains, this system ensures secure and efficient inspections in production environments.
Product Specifications
Application And X Ray Specifications Belt Speed Range
10 to 60 m/min | 33 to 196 ft/min
Application And X Ray Specifications Detection Algorithms Availa
Binary | Contrast | Gradient | Groups | Morphology
Application And X Ray Specifications Detector Scan Rate
0 to 2800 lines/sec
Application And X Ray Specifications Human Machine Interface Hmi
15-inch Diagonal Touchscreen with Protective Cover
Application And X Ray Specifications Inspectable Belt Width At 5
540 mm
Application And X Ray Specifications Interface Languages Availab
Chinese | English | French | German | Hungarian | Italian | Korean | Norwegian | Polish | Spanish
Application And X Ray Specifications Maximum Conveyable Product
40 kg | 88 lb
Application And X Ray Specifications Maximum Inspectable Belt Wi
400 mm
Application And X Ray Specifications Multi Lane Operation
Single lane or 8 lanes with separate reject gates
Application And X Ray Specifications Safetysecurity Features
All Doors have Magnetic Interlocks | Emergency Stops | Light-Emitting Diode (LED) X-Ray Imminent/On Lights | Radiation Curtains | X-Ray Power Key
Application And X Ray Specifications Standard Detector Resolutio
0.8 mm
Application And X Ray Specifications Standard Line Height
900 mm
Application And X Ray Specifications Standard Line Height Tolera
100 mm
Application And X Ray Specifications System Length
2.1 m | 82.7 in
Application And X Ray Specifications X Ray Power
90 kV | 10 mA | 900 W
Application And X Ray Specifications X Ray Shielding
Lead Free, FDA Approved Curtains
Conformance Tests And Certifications Export And Safety
European Conformity (CE) | Underwriters Laboratories (UL 508A)
Conformance Tests And Certifications Intrusion Protection Rating
Ingress Protection (IP65)
Conformance Tests And Certifications Radiation Safety Conformanc
Food and Drug Administration Code of Federal Regulations (FDA CFR) 21 Part 1020.40
Electrical Input Electrical Input Alternating Current Ac Voltage
190 to 240 V
Electrical Input Electrical Input Current
16 A
Electrical Input Electrical Input Frequency
50 Hz | 60 Hz
Electrical Input Electrical Input Phase
1
Environment Electrical And Operational Specifications Machine Co
External Water Chiller
Environment Electrical And Operational Specifications Machine We
1040 kg | 2290 lb
Environment Electrical And Operational Specifications Network Po
Ethernet
Environment Electrical And Operational Specifications Non Conden
0 to 90 %
Environment Electrical And Operational Specifications Operating
5 to 40 ºC | +41 to +104 ºF
Environment Electrical And Operational Specifications Universal
2.0
Features Features
All of the Xpert⢠HD systems have the following features:Very high X-ray power (900W - 90 kV/10mA)Optimal performance with easy setup and useA belt width and aperture height to accommodate most large package sizesRobust design to meet stringent washdown proceduresShielding to meet radiation requirements anywhere in the world
Options Options
External chiller for X-ray tube and cabinet coolingIntegrated or stand-alone rejection systemsCustomized inspection softwareFrames for taller line heights
Specifications Brand
Thermo Scientific⢠| Xpertâ¢
