Thermo Scientific Xpert Bulk B600 X-Ray Inspection System
Thermo Scientific Xpert Bulk B600 X-Ray Inspection System
SKU:MAC-894aa0
Enhance quality control with the Thermo Scientific Xpert Bulk B600 X-Ray Inspection System for precise foreign object detection in bulk food products.
Regular price
$35,000.00
Regular price
Sale price
$35,000.00
Unit price
per
Initiate Order
Thermo Scientific Xpert Bulk B600 X-Ray Inspection System
$35,000.00
Quantity: 1
Claim Your Seller Account
Thermo Scientific Xpert Bulk B600 X-Ray Inspection System
$35,000.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

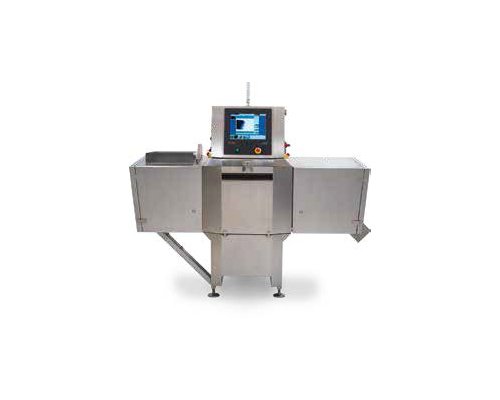

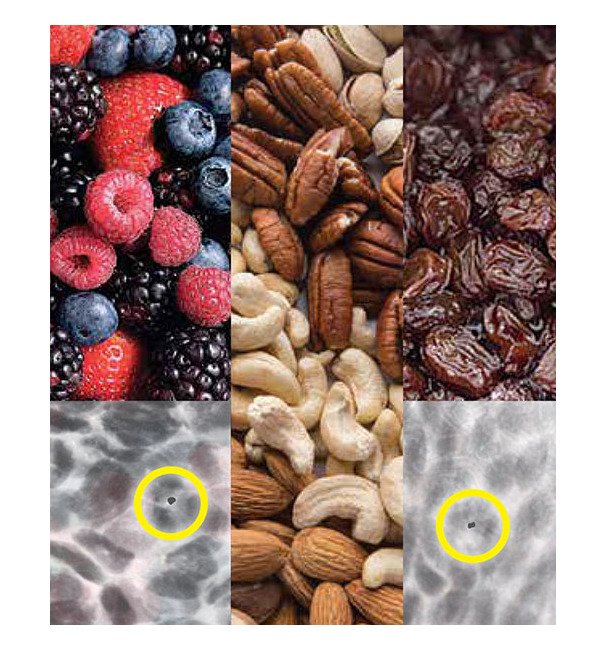

The Thermo Scientific Xpert Bulk B600 X-Ray Inspection System is designed for accurate foreign object detection in bulk food products like nuts, seeds, berries, and vegetables. With an inspectable belt width of 18.66 inches, this system offers precise detection of metal, glass, rocks, and other contaminants. Featuring an X-Ray power of 160W, detector scan rate of 0 to 2800 lines/sec, and multiple detection algorithms, it ensures thorough inspection. This system meets FDA CFR 21 Part 1020.40 radiation safety conformance, CSA 508A, CE, UL certifications, and IP54/IP65 ingress protection standards.
Product Specifications
Application And X Ray Specifications Approximate System Length
2.4 m | 94.5 in
Application And X Ray Specifications Belt Speed Range
10 to 64 m/min | 33 to 210 ft/min
Application And X Ray Specifications Detection Algorithms Availa
Binary | Contrast | Gradient | Groups | Morphology
Application And X Ray Specifications Detector Scan Rate
0 to 2800 lines/sec
Application And X Ray Specifications Human Machine Interface Hmi
15-inch Diagonal Touchscreen with Protective Cover
Application And X Ray Specifications Input Funnel Height
1350 mm | 53 in
Application And X Ray Specifications Input Funnel Height Toleran
75 mm | 3 in
Application And X Ray Specifications Inspectable Belt Width
474 mm | 18.66 in
Application And X Ray Specifications Interface Languages Availab
Chinese | English | French | German | Italian | Spanish
Application And X Ray Specifications Maximum Conveyable Product
80 lb | 36 kg
Application And X Ray Specifications Multi Lane Operation
Single lane or 8 lanes with separate reject gates
Application And X Ray Specifications Output Chute Height
541 mm | 21 in
Application And X Ray Specifications Output Chute Height Toleran
75 mm | 3 in
Application And X Ray Specifications Product Height
0 to 72 mm | 0 to 2.83 in
Application And X Ray Specifications Safetysecurity Features
All Doors have Magnetic Interlocks | Emergency Stops | Light-Emitting Diode (LED) X-Ray Imminent/On Lights | Radiation Curtains | X-Ray Power Key
Application And X Ray Specifications Standard Detector Resolutio
0.8 mm
Application And X Ray Specifications X Ray Power
160 W
Application And X Ray Specifications X Ray Shielding
No Curtains Required
Conformance Tests And Certifications Export And Safety
Canadian Standards Association (CSA 508A) | European Conformity (CE) | Underwriters Laboratories (UL)
Conformance Tests And Certifications Intrusion Protection Rating
Ingress Protection (IP54) | Ingress Protection (IP65)
Conformance Tests And Certifications Radiation Safety Conformanc
Food and Drug Administration Code of Federal Regulations (FDA CFR) 21 Part 1020.40
Electrical Input Electrical Input Alternating Current Ac Voltage
190 to 240 V
Electrical Input Electrical Input Current
20 A
Electrical Input Electrical Input Frequency
50 Hz | 60 Hz
Electrical Input Electrical Input Phase
1
Environment Electrical And Operational Specifications Compressed
40 to 100 psi | 2.75 to 6.9 bar
Environment Electrical And Operational Specifications Machine Co
Built-in 2083 BTU (610 W) Cabinet Air Conditioner 1708 BTU/h (500 W)
Environment Electrical And Operational Specifications Machine We
1040 kg | 2290 lb
Environment Electrical And Operational Specifications Network Po
Ethernet
Environment Electrical And Operational Specifications Non Conden
0 to 90 %
Environment Electrical And Operational Specifications Operating
5 to 40 ºC | +41 to +104 ºF
Environment Electrical And Operational Specifications Universal
2.0
Features Features

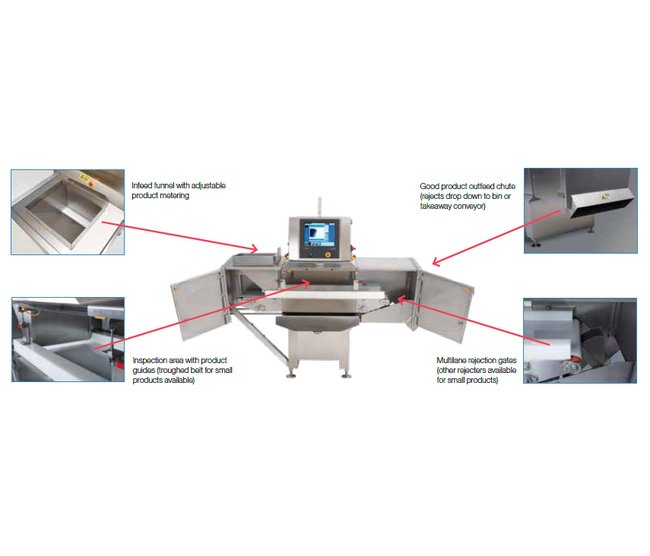

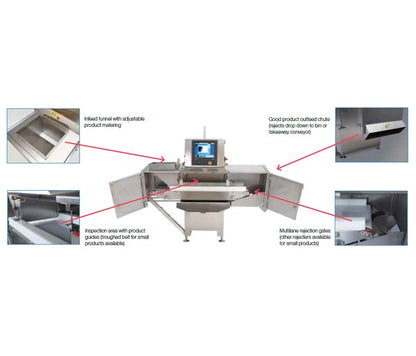

All of the Xpert⢠Bulk systems have the following features:Detect a range of foreign objects in bulk flowsMultiple belt widths optimize flow, sensitivity and costMultilane inspection/rejection minimizes wasteEasy to clean and maintainHeavy-duty design; rollers, bearings, AC drive and frame/cabinetShielding to meet radiation requirements anywhere in the world
Options Options
There are a number of options available to meet your needs. They include:Stainless steel washdown AC coolingOther product guide stylesHigher power X-Ray sources
Specifications Brand
Thermo Scientific⢠| Xpertâ¢
