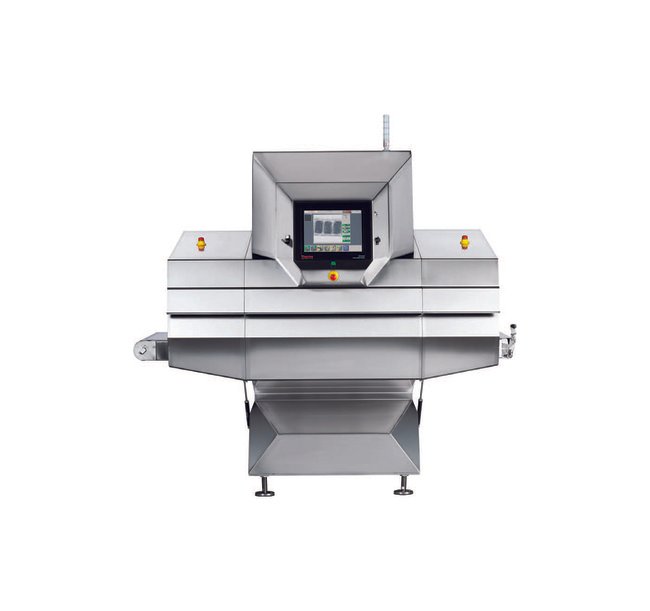

Thermo Scientific Xpert HD X-Ray Inspection System
Thermo Scientific Xpert HD X-Ray Inspection System
SKU:MAC-dd833f
Experience robust X-ray inspection with Thermo Scientific Xpert HD System, offering unmatched penetration and detection for large items.
Regular price
$34,999.00
Regular price
Sale price
$34,999.00
Unit price
per
Initiate Order
Thermo Scientific Xpert HD X-Ray Inspection System
$34,999.00
Quantity: 1
Claim Your Seller Account
Thermo Scientific Xpert HD X-Ray Inspection System
$34,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Thermo Scientific Xpert HD X-Ray Inspection System is a robust solution designed for large, dense products. With a maximum penetration of 730 mm inspectable belt width, this system offers high-power X-ray inspection capabilities to detect a wide range of foreign materials. Featuring an X-ray power of 90 kV, 10 mA, and 900 W, along with advanced detection algorithms and safety features like lead-free X-ray shielding and emergency stops, this system ensures optimal performance and compliance with FDA CFR 21 Part 1020.40 and CE standards.
Product Specifications
Application And X Ray Specifications Belt Speed Range
10 to 60 m/min | 33 to 196 ft/min
Application And X Ray Specifications Detection Algorithms Availa
Binary | Contrast | Gradient | Groups | Morphology
Application And X Ray Specifications Detector Scan Rate
0 to 2800 lines/sec
Application And X Ray Specifications Human Machine Interface Hmi
15-inch Diagonal Touchscreen with Protective Cover

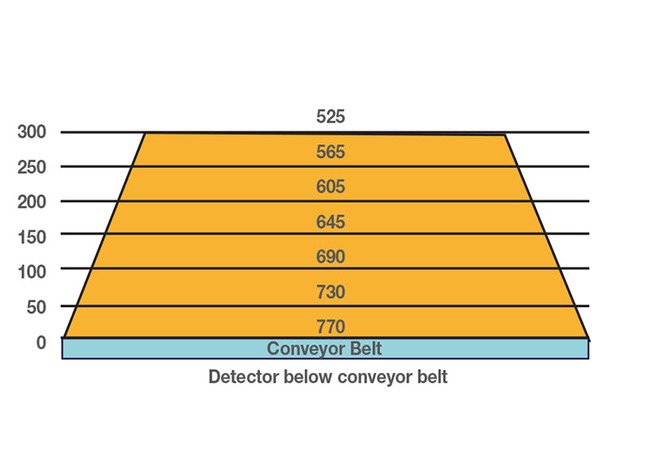

Application And X Ray Specifications Inspectable Belt Width At 5
730 mm
Application And X Ray Specifications Interface Languages Availab
Chinese | English | French | German | Hungarian | Italian | Korean | Norwegian | Polish | Spanish
Application And X Ray Specifications Maximum Conveyable Product
40 kg | 88 lb
Application And X Ray Specifications Maximum Inspectable Belt Wi
525 mm
Application And X Ray Specifications Multi Lane Operation
Single lane or 8 lanes with separate reject gates
Application And X Ray Specifications Safetysecurity Features
All Doors have Magnetic Interlocks | Emergency Stops | Light-Emitting Diode (LED) X-Ray Imminent/On Lights | Radiation Curtains | X-Ray Power Key
Application And X Ray Specifications Standard Detector Resolutio
0.8 mm
Application And X Ray Specifications Standard Line Height
900 mm
Application And X Ray Specifications Standard Line Height Tolera
100 mm
Application And X Ray Specifications System Length
2.25 m | 88.6 in
Application And X Ray Specifications X Ray Power
90 kV | 10 mA | 900 W
Application And X Ray Specifications X Ray Shielding
Lead Free, FDA Approved Curtains
Conformance Tests And Certifications Export And Safety
European Conformity (CE) | Underwriters Laboratories (UL 508A)
Conformance Tests And Certifications Intrusion Protection Rating
Ingress Protection (IP65)
Conformance Tests And Certifications Radiation Safety Conformanc
Food and Drug Administration Code of Federal Regulations (FDA CFR) 21 Part 1020.40
Electrical Input Electrical Input Alternating Current Ac Voltage
190 to 240 V
Electrical Input Electrical Input Current
16 A
Electrical Input Electrical Input Frequency
50 Hz | 60 Hz
Electrical Input Electrical Input Phase
1
Environment Electrical And Operational Specifications Machine Co
External Water Chiller
Environment Electrical And Operational Specifications Machine We
1200 kg | 2645 lb
Environment Electrical And Operational Specifications Network Po
Ethernet
Environment Electrical And Operational Specifications Non Conden
0 to 90 %
Environment Electrical And Operational Specifications Operating
5 to 40 ºC | +41 to +104 ºF
Environment Electrical And Operational Specifications Universal
2.0
Features Features
All of the Xpert⢠HD systems have the following features:Very high X-ray power (900W - 90 kV/10mA)Optimal performance with easy setup and useA belt width and aperture height to accommodate most large package sizesRobust design to meet stringent washdown proceduresShielding to meet radiation requirements anywhere in the world
Options Options
External chiller for X-ray tube and cabinet coolingIntegrated or stand-alone rejection systemsCustomized inspection softwareFrames for taller line heights
Specifications Brand
Thermo Scientific⢠| Xpertâ¢
