Thermo Scientific Xpert S400 X-Ray Inspection System
Thermo Scientific Xpert S400 X-Ray Inspection System
SKU:MAC-797015
High-performance X-ray inspection system for upright packages, with 80 kV X-ray power and 0.8 mm detector resolution. FDA CFR, UK IRR 1999, CE, and UL 508A compliant.
Regular price
$28,000.00
Regular price
Sale price
$28,000.00
Unit price
per
Initiate Order
Thermo Scientific Xpert S400 X-Ray Inspection System
$28,000.00
Quantity: 1
Claim Your Seller Account
Thermo Scientific Xpert S400 X-Ray Inspection System
$28,000.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

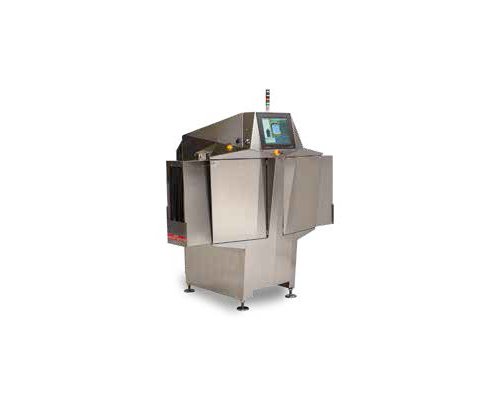

The Thermo Scientific Xpert S400 Side Shoot X-Ray Inspection System is a high-performance single beam X-ray system designed for upright and tall packages. With an X-ray power of 80 kV and a detector resolution of 0.8 mm, this system is equipped to inspect a wide range of products at typical line speeds. It features sophisticated inspection software optimized for various regions of products, including underfilled and dented cans, with up to 900 packages per minute throughput. Meeting FDA CFR, UK IRR 1999, CE, and UL 508A certifications, this system assures compliance with stringent radiation safety and export standards.
Product Specifications

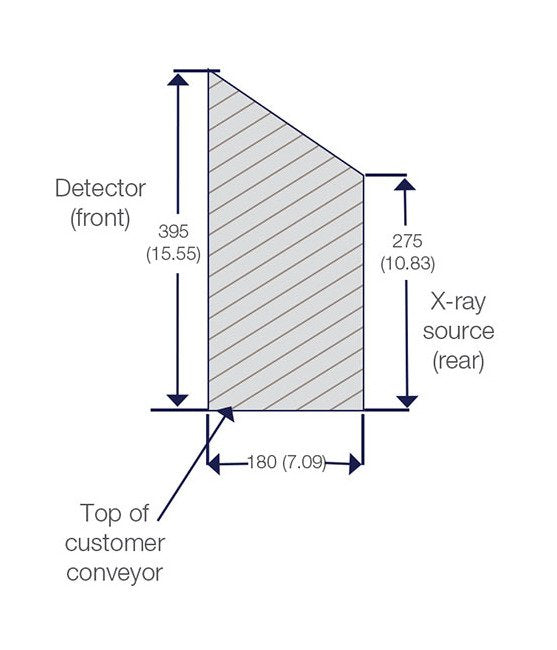

Application And X Ray Specifications Aperture Width And Height
Wide-aperture model available (275 mm/10.8 in) for large products
Application And X Ray Specifications Belt Speed Range
5 to 80 m/min | 16 to 263 ft/min
Application And X Ray Specifications Conveyor Heights
900 mm | 35.4 in
Application And X Ray Specifications Conveyor Heights Tolerance
100 mm | 3.9 in
Application And X Ray Specifications Detection Algorithms Availa
1D/2D Contrast | Binary Thresholds (Several Types)
Application And X Ray Specifications Detector Areas
Body | Bottom | Sides | Top
Application And X Ray Specifications Detector Scan Rate
0 to 2800 lines/sec
Application And X Ray Specifications Human Machine Interface Hmi
15-inch Diagonal Touchscreen with Protective Cover
Application And X Ray Specifications Inspection Algorithms Avail
General Cap/Bent Can Detection | Gross Underfill | Other Customizations
Application And X Ray Specifications Interface Languages Availab
Chinese | English | French | German | Italian | Spanish
Application And X Ray Specifications Minimum Product Gap
10 mm | 0.4 in
Application And X Ray Specifications Optional Detector Resolutio
0.4 mm
Application And X Ray Specifications Safetysecurity Features
All Doors Equipped with Magnetic Interlocks | Emergency Stops | Light-Emitting Diode (LED) X-Ray Imminent/On Lights | Radiation Curtains | X-Ray Power Key
Application And X Ray Specifications Standard Detector Resolutio
0.8 mm
Application And X Ray Specifications System Length For Chicane C
3.1 m | 10.2 ft
Application And X Ray Specifications System Length For Straight
1.8 m | 5.9 ft
Application And X Ray Specifications X Ray Curtain Material
Proprietary No-Lead
Application And X Ray Specifications X Ray Power
80 kV | 6 mA | 480 W
Conformance Tests And Certifications Export And Safety
European Conformity (CE) | Underwriters Laboratories (UL 508A) in North America
Conformance Tests And Certifications Intrusion Protection Rating
Ingress Protection (IP65)
Conformance Tests And Certifications Radiation Safety Conformanc
Food and Drug Administration Code of Federal Regulations (FDA CFR) 21 Part 1020.40 | Ionizing Radiations Regulations (UK IRR 1999) | Radio Equipment Directive (RED) Act
Electrical Input Electrical Input Alternating Current Ac Voltage
190 V | 240 V
Electrical Input Electrical Input Current
20 A
Electrical Input Electrical Input Frequency
50 Hz | 60 Hz
Environment Electrical And Operational Specifications Compressed
80 to 100 psi | 5.5 to 6.9 bar
Environment Electrical And Operational Specifications Digital In
6 available (two reserved for photo eyes, one for encoder)
Environment Electrical And Operational Specifications Digital Ou
4 available (one reserved for a rejection device)
Environment Electrical And Operational Specifications Machine Co
Built-in 3750 BTU (1100 W) Cabinet Air Conditioner
Environment Electrical And Operational Specifications Machine We
850 kg | 1870 lb
Environment Electrical And Operational Specifications Network Po
Ethernet
Environment Electrical And Operational Specifications Non Conden
20 to 90 %
Environment Electrical And Operational Specifications Operating
5 to 38 ºC | +41 to +104 ºF
Environment Electrical And Operational Specifications Universal
2.0
Features Features
Detects foreign objects in cans, plastic bottles and other upright packagesSophisticated inspection software optimized for the bottom, sidewalls, body and cap regionsInspection of underfilled and dented cans in some applicationsUp to 900 packages per minute throughputConfigurations with/without conveyors and shielding curtainsCustom rejection systems availableX-ray source and detector can be easily aligned with conveyor heightTall X-ray beam and detector handles a wide range of packagesSuitable for dry wipe down and IP65 washdown environmentsBuilt-in remote software for troubleshooting and technical assistance
Specifications Brand
Thermo Scientific⢠| Xpertâ¢
