Thimbleye® Bolt - Straight Type, 5/8" Diameter, 12" Length
Thimbleye® Bolt - Straight Type, 5/8" Diameter, 12" Length
SKU:AER-0c89c8
Securely attach guys and deadends with the Thimbleye® Straight Type Bolt. 5/8" diameter, 12" length, ANSI/REA/Bell compliant.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Thimbleye® Bolt - Straight Type, 5/8" Diameter, 12" Length
$249.99
Quantity: 1
Claim Your Seller Account
Thimbleye® Bolt - Straight Type, 5/8" Diameter, 12" Length
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

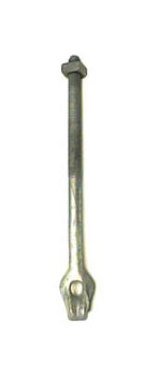

The Thimbleye® Straight Type Bolt is a versatile hardware solution designed for securely attaching guys and deadends to utility poles and crossarms. This hot-dip galvanized bolt features a 5/8-inch diameter with a minimum ultimate strength of 13,550 pounds, ensuring reliable performance. Its straight design eliminates the need for additional components like thimbles, strain plates, and guy hooks, streamlining installation and maintenance processes. Compliant with ANSI, REA, and Bell standards, this Thimbleye® bolt is roll threaded with cone points for enhanced durability and ease of use.
Product Specifications
Specifications Approx Shipping Weight Lb Per 100 Pcs
160
Specifications Bolt Diameter In
5/8
Specifications Bolt Length In
12
Specifications Min Ultimate Strength Pound
13550
Specifications Note
ANSI StandardREA AcceptedBell Standard
Specifications Thread Length In
6
